Product Description

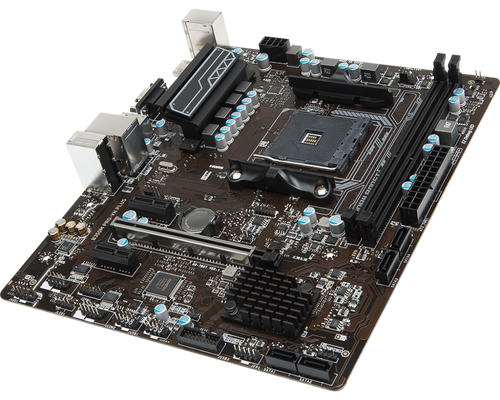

MSI B350M PRO-VH PLUSMOTHERBOARD
- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
- Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz
- DDR4 Boost: Give your DDR4 memory a performance boost
- VR Ready: Best virtual reality game experience without latency
- Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
- EZ Debug LED: Easiest way to troubleshoot
- X-Boost: Great tool to boost your USB & Storage performance
- Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
- WHQL certified for Windows 10
TECHNICAL SPEC
CPU (MAX SUPPORT) | RYZEN 7 |
SOCKET | AM4 |
CHIPSET | AMD® B350 Chipset |
DDR4 MEMORY | 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 4 |
MAX MEMORY (GB) | 64 |
PCI-E X16 | 1 |
PCI-E GEN | Gen3 |
PCI-E X1 | 2 |
SATAIII | 4 |
TPM (HEADER) | 1 |
RAID | 0/1/10 |
LAN | 10/100/1000*1 |
USB 3.1 PORTS (FRONT) | 2(Gen1) |
USB 3.1 PORTS (REAR) | 4(Gen1) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 2 |
SERIAL PORTS(FRONT) | 2 |
AUDIO PORTS (REAR) | Realtek® ALC887 Codec |
HDMI | 1 |
VGA | 1 |
DIRECTX | 12 |
FORM FACTOR | M-ATX |
OPERATING SYSTEM | Support for Windows® 10 64-bitSupport for Windows® 7 64-bit* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN B350M PRO-VH PLUS
NOTE Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
