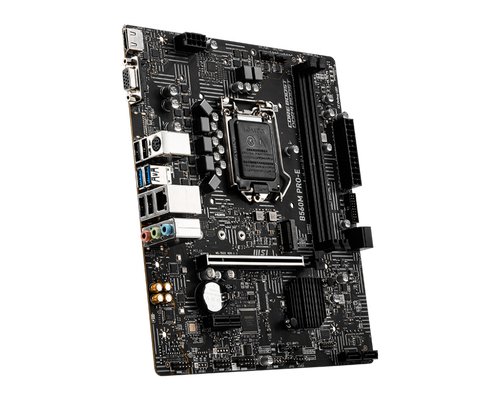

B560M PRO=

EXPERIENCE MORE

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-Une your system to deliver reliable maximum performance.

• Supports 10th Gen Intel^® Core™ , 11th Gen Intel^® Core™ , Pentium^® Gold and Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 4800(OC) MHz
• Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.
• Lightning Fast Experience :  PCIe 4.0
• Turbo M.2 :  Running at PCI= Gen3 x4 maximizes performance for NVMe based SSDs
• Audio Boost :  Reward your ears with studio grade sound quality
• Steel Armor :  Protecting VGA cards against bending and EMI for better performance, stability and strength.

CHIPSET

MEMORY

EXPANSION SLOT

ONBOARD GRAPHICS

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

AUDIO

LAN

STORAGE

Intel^® B560 Chipset

• 4x SATA 6Gb/s ports (From B560 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From B560 Chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices

1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel^® B560 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 TyPE- ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (4 TyPE- ports on the back panel,2 ports available through the internal USB 2.0 connectors)

FORM FACTOR

BIOS FEATURES

INTERNAL CONNECTORS

1x 24=in ATX main power connector

1x 8=in ATX 12V power connector

4x SATA 6Gb/s connectors

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

1x USB 2.0 connector (supports additional 2 USB 2.0 ports)

1x 4=in CPU fan connector

1x 4=in system fan connector

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

BACK PANEL CONNECTORS
