Product Description

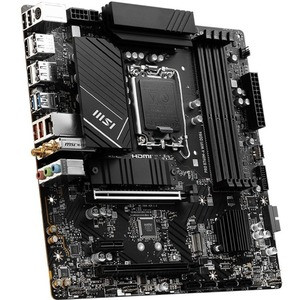

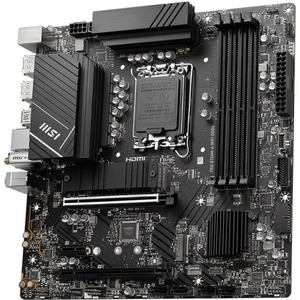

MSI Pro B760M-A WIFI DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory. Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Features
- Lightning Gen4 Solution | The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Wi-Fi 6E | The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Extended Heatsink Design | MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- M.2 Shield FROZR | Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- 2.5G Network Solution | Featuring premium 2.5G LAN to deliver better network experience.
- EZ Debug LED | Easiest way to troubleshoot
- Frozr AI Cooling | Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Memory Boost | Advanced technology to deliver pure data signals for the bestperformance, stability and compatibility.
- Core Boost | With premium layout and fully digital power design to support more cores and provide better performance.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Product Type Gaming Desktop Motherboard
Manufacturer Part Number PROB760MAWID4
Manufacturer MSI
Product Line Pro
Brand Name MSI
Product Name PRO B760M-A WIFI DDR4 Gaming Desktop Motherboard
Product Model B760M-A WIFI DDR4
Processor Supported Celeron, Core, Pentium Gold
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model B760
Processor Generation Supported 12th Gen, 13th Gen
Maximum Memory 128 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM, DIMM
Audio Channels 7.1
Onboard Video CPU Dependent Video
Brand Compatibility Intel
Gigabit Ethernet Yes
2.5Gigabit Ethernet Yes
Form Factor Micro ATX
Width 9.6
Depth 9.6
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 9
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2
RAID Levels 0, 5, 10, 1
Controller Type Serial ATA/600
RAID Supported Yes
Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 4.0, PCI Express 3.0
Total Number of PCI Express Slots 3
HDMI Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 2
Memory Speed Supported 2933 MHz
Memory Speed Supported 3200 MHz
Memory Speed Supported 3333 MHz
Memory Speed Supported 3400 MHz
Memory Speed Supported 3466 MHz
Memory Speed Supported 3600 MHz
Memory Speed Supported 3733 MHz
Memory Speed Supported 3800 MHz
Memory Speed Supported 4000 MHz
Memory Speed Supported 4200 MHz
Memory Speed Supported 4266 MHz
Memory Speed Supported 4400 MHz
Memory Speed Supported 4600 MHz
Memory Speed Supported 4800 MHz
Memory Speed Supported 5000 MHz
Memory Speed Supported 5066 MHz
Memory Speed Supported 5200 MHz
Memory Speed Supported 5333 MHz
Memory Speed Supported 2133 MHz
Memory Speed Supported 2400 MHz
Memory Speed Supported 2666 MHz
Note Images may not be exact, please check specifications.
