Product Description

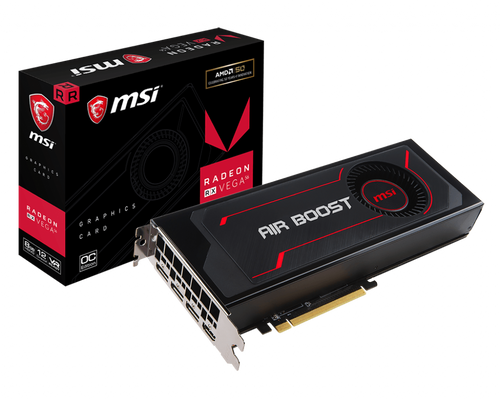

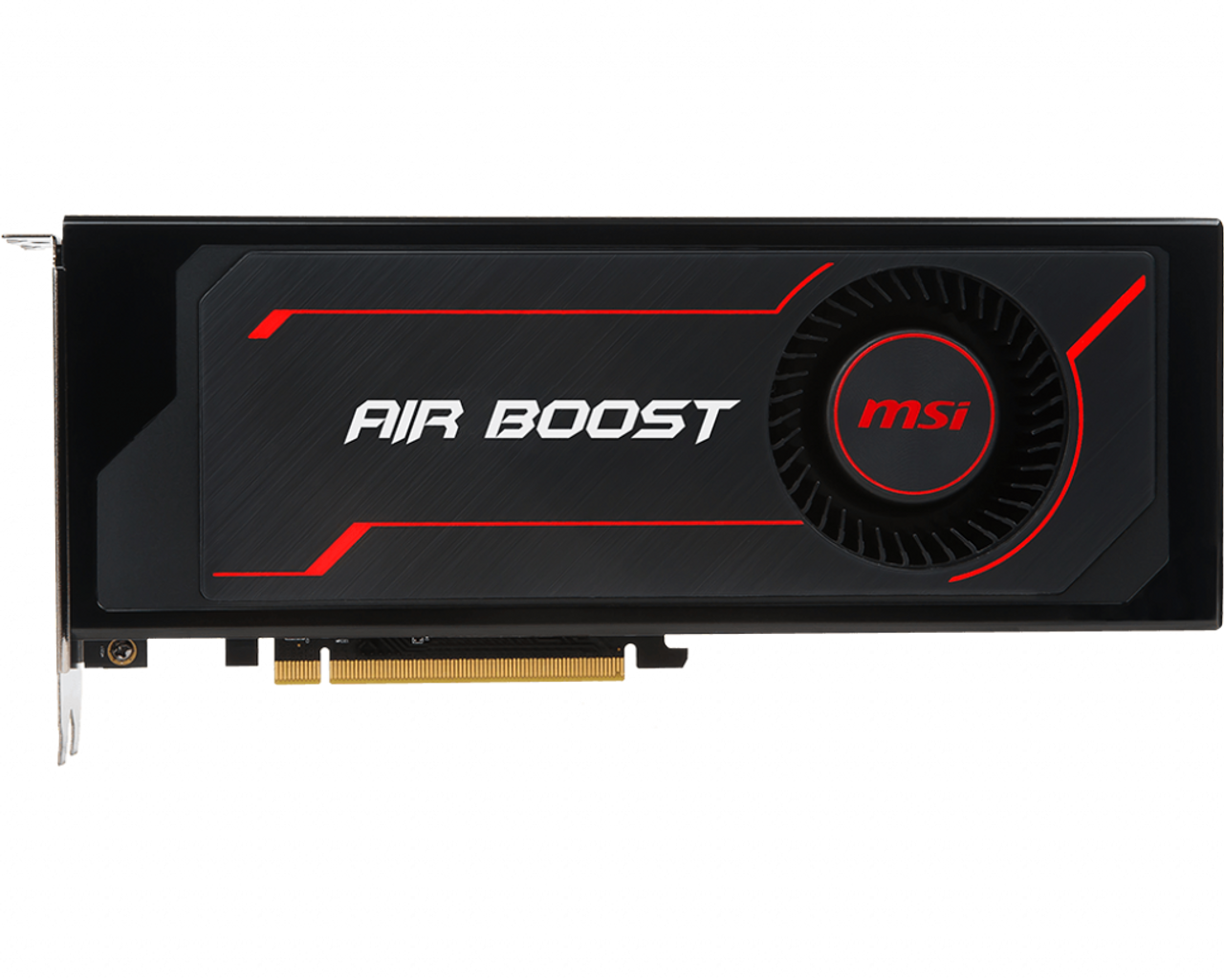

MSI Radeon RX Vega 56 Air Boost 8G OC
Core/Memory
- Boost Clock / Base Clock / Memory Frequency
up to 1520 MHz / up to 1181 MHz / 800 MHz - 8GB HBM2
All Solid Capacitors
- 10 years long lifetime under full load.
- Lower temperature and higher efficiency.
- Aluminum core for higher stability.
Afterburner Overclocking Utility
- Predator: In-game video recording.
- Supports multi-GPU setups.
AMD Eyefinity
- Makes games more immersive by enabling you to play across multiple screens for an eye-popping gaming experience.
AMD FreeSync™
- Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
TECHNICAL SPEC
GRAPHICS PROCESSING UNIT | Radeon™ RX Vega 56 |
INTERFACE | PCI Express x16 |
CORES | 3584 Units (56 CU) |
CORE CLOCKS | up to 1520MHz / up to 1181MHz |
MEMORY SPEED | 800 MHz |
MEMORY | 8GB HBM2 |
MEMORY BUS | 2048-bit |
OUTPUT | DisplayPort x 3 / HDMI |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 210 W |
POWER CONNECTORS | 8-pin x 2 |
RECOMMENDED PSU (W) | 650W |
CARD DIMENSION(MM) | 270 x 110 x 40 mm |
WEIGHT (CARD / PACKAGE) | 1068 g / 1615 g |
DIRECTX VERSION SUPPORT | 12 API |
OPENGL VERSION SUPPORT | 4.5 |
MULTI-GPU TECHNOLOGY | Crossfire™, 4-Way (Bridgeless) |
MAXIMUM DISPLAYS | 4 |
VR READY | Y |
AFTERBURNER OC | Y |
ACCESSORIES | 6-pin to 8-pin power cable x 1 |
