Product Description

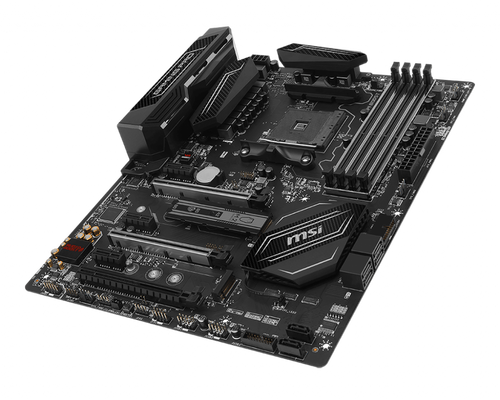

MSI X370 GAMING PRO CARBON MOTHER BOARD
- upports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
- Supports DDR4-3200+(OC) Memory
- DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost
- VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness
- Mystic Light and Mystic Light Sync: 16.8 million colors /17 effects controlled in one click with GAMING APP or mobile devices.
- Lightning Fast Game experience: Turbo M.2, M.2 Shield, Lightning USB 3.1 Gen2
- Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience
- GAMING LAN with LAN Protect, powered by Intel® : The best online gaming experience with lowest latency and bandwidth management
- Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
- MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost,
- EZ Debug LED: Easiest way to troubleshoot
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
- GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
- WHQL certified for Windows 10
EXCEPTIONAL BY DESIGN
- GAMING Device Port
- VR Boost
- Lightning USB 3.1 Gen2
- Intel® GAMING LAN
- Golden audio jacks with S/PDIF
- Mystic Light RGB IO cover & heatsink
Change up to 16.8 million colors & 17 LED effects - Gaming heatsinks with CARBON SCHEME
Leading heatsink design, for maximum cooling - DDR4 Boost with Steel Armor
Optimized traces and isolated memory circuitry - PCI-E Steel Armor
Protecting VGA cards against bending and EMI - Turbo M.2 with Steel Armor
NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4 - M.2 Shield
Thermal enhancement for M.2 devices for best performance - Audio Boost 4 with amplifier
Optimized gaming audio using best components, with Nahimic 2
PROCESSOR
Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
CHIPSET
AMD® X370 Chipset
MEMORY
- 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- A-series / Athlon™ X4 processors support up to 2400 MHz only.
SLOTS
- 2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- RYZEN series processors support x16/x0, x8/x8 mode
- Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 processors support x8/x0 mode
- AMD® Athlon™ with Radeon™ Vega Graphics processors support x4/x0 mode
- 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
- 3 x PCIe 2.0 x1 slots
- PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
ONBOARD GRAPHICS
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@24Hz
- Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors.
- Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could only support HDMI display output.
- Maximum shared memory of 2048 MB.
MULTI-GPU
- RYZEN series processors
- Supports 3-Way AMD® CrossFire™ Technology
- Supports 2-Way NVIDIA® SLI™ Technology
- AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
- Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® X370 Chipset
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
- M.2 and SATA ports combination details please refer user manual.
- PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot. SATA3 port will be unavailable when installing the SATA SSD card in M2_2 slot.
RAID
AMD® X370 Chipset
- Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
USB
ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
AMD® X370 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
- 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1 x Intel® I211AT Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x 4-pin RGB LED strip connector
BACK PANEL PORTS
- PS/2 GAMING Device Port
- DVI-D
- USB 3.1 Gen1 Ports
- Intel® Gigabit LAN Port
- Golden Audio Connectors
- USB 2.0 Ports
- HDMI
- VR Ready USB 3.1 Gen1 Ports
- Golden USB 3.1 Gen2 Type-A/C
- Optical S/PDIF-Out
DIMENSIONS
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
- Support for Windows® 7 64-bit
