Product Description

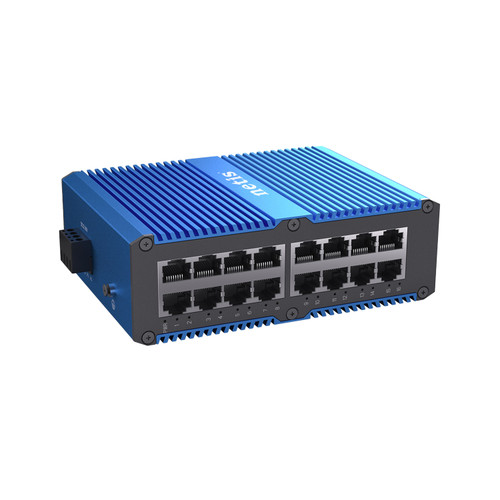

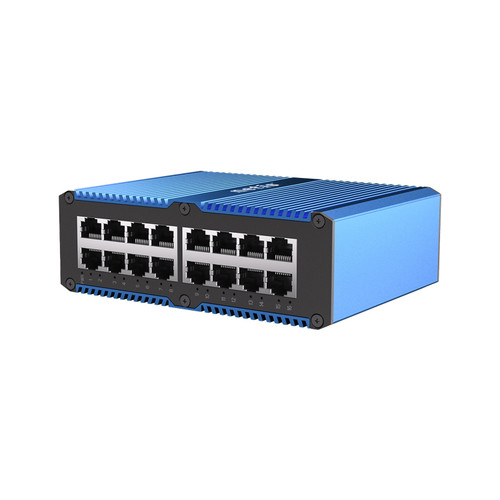

Netis 16GE Gigabit Ethernet Industrial Switch - NIS3016 PRO
Elevate your industrial network infrastructure with the robust and reliable Netis NIS3016 PRO. This 16-port Gigabit Ethernet Industrial Switch is engineered to withstand harsh environments and deliver high-performance connectivity for demanding applications.
Benefits :
- Enhanced Reliability: Built with a ruggedized metal enclosure and designed for extended operating temperatures, the NIS3016 PRO ensures uninterrupted network performance even in challenging industrial settings.
- High-Performance Connectivity: Experience seamless data transfer with 16 Gigabit Ethernet ports, providing ample bandwidth for demanding applications like automation, surveillance, and data-intensive processes.
- Easy Installation and Management: Simplify network deployment and maintenance with plug-and-play installation and intuitive web-based management tools.
- Cost-Effective Solution: The NIS3016 PRO offers exceptional value, combining industrial-grade performance with a competitive price point, maximizing your return on investment.
- Versatile Applications: Ideal for a variety of industrial environments, including factories, warehouses, transportation systems, and more.
Key Features:
- The NIS3016 PRO is a 16-port Gigabit Ethernet switch.
- It complies with IP40 protection class and meet EMC industrial level 4 requirements.
- It provides 12-36V DC wide voltage range power inputs, DIN rail mounting, wide operating temperature range of -40 to the +85°C.
- In addition to its compact size for space-saving installation, each product has passed a 100% burn-in test in 85°C to ensure its quality.
- All of these features make the product ideal for applications that require high-reliability transmission , such as video surveillance, tolling systems, ITS, and factory automation.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN NIS3016 PRO
Interface Electrical Ports: 16 10/100/1000Base-T (RJ45)
Power Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Input Voltage: 9-48V Full load power consumption: < 8W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support
LED Power LED: PWR Interface LED: RJ45 (Link&ACT)
Switch Properties MAC Table: 8K Switch Capacity: 32Gbps Packet Buffer: 4.1M Packet Forwarding Rate: 23.808Mpps Switching Delay: <5us
EMS IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
Machinery IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall)
Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-Tx IEEE802.3ab 1000Base-T
Physical Housing: Metal, Fanless Protection Class: IP40 Dimensions: 148mm x 109mm x 49mm (W×D×H) Weight: 0.65kg Mounting: DIN-Rail
Note Images may not be exact, please check specifications.
