Product Description

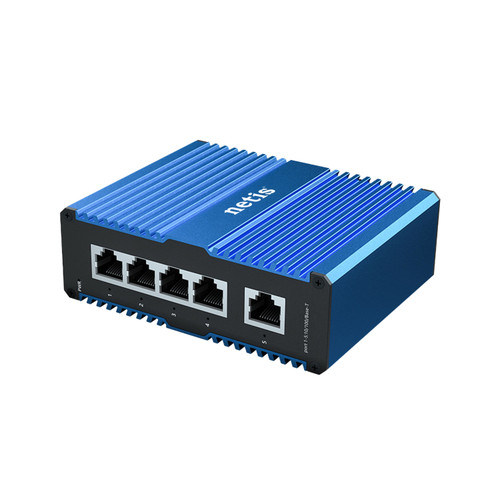

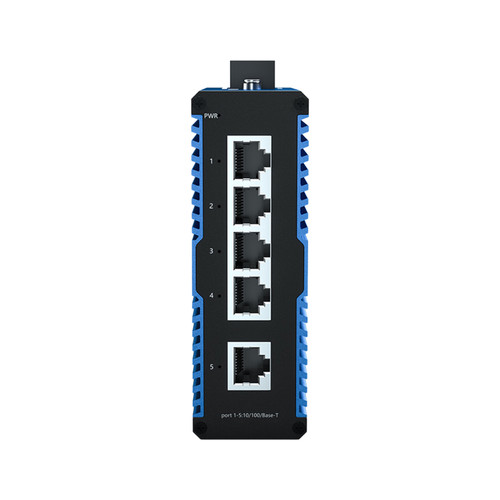

Netis 5FE Fast Ethernet Industrial Switch - NIS1005 PRO
Enhance your industrial network infrastructure with the Netis NIS1005 PRO 5FE Fast Ethernet Industrial Switch. Built to withstand harsh environments, this robust switch provides reliable and high-performance network connectivity for a variety of industrial applications. Whether you need to connect machinery, surveillance systems, or other critical devices, the NIS1005 PRO delivers the stability and performance you demand.
Benefits
- Enhanced Durability: Designed with a rugged metal housing and industrial-grade components, the NIS1005 PRO can withstand extreme temperatures, vibrations, and electromagnetic interference, ensuring uninterrupted network operation in challenging environments.
- High-Performance Connectivity: Experience seamless data transmission with five Fast Ethernet ports providing speeds up to 100Mbps, enabling efficient communication between connected devices.
- Plug-and-Play Simplicity: No complex configuration required! The NIS1005 PRO offers effortless setup with its plug-and-play functionality, allowing you to quickly deploy your network infrastructure.
- Cost-Effective Solution: The NIS1005 PRO delivers exceptional performance and reliability at a competitive price, making it an ideal choice for businesses seeking a cost-effective industrial networking solution.
- Compact and Versatile Design: Its compact design and DIN-rail or wall-mounting options allow for flexible installation in a variety of industrial settings.
Key Features:
- The NIS1005 PRO is a 5-port Fast Ethernet switch.
- It complies with IP40 protection class and meet EMC industrial level 4 requirements.
- It provides 12-36V DC wide voltage range power inputs, DIN rail mounting, wide operating temperature range of -40 to the 85°C.
- In addition to its compact size for space-saving installation, each product has passed a 100% burn-in test in 85°C to ensure its quality.
- All of these features make the product ideal for applications that require high-reliability transmission ,such as video surveillance, tolling systems, ITS, and factory automation.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN NIS1005 PRO
Interface Electrical Ports: 5 10/100Base-Tx (RJ45)
Power Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block Input Voltage: 12-36V Full load power consumption: < 2W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support
LED Power LED: PWR Interface LED: RJ45 (Link & ACT)
Switch Properties MAC Table: 2K Switch Capacity: 1Gbps Packet Forwarding Rate: 0.744Mpps Switching Delay: <10us
EMS IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
Machinery IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall)
Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-Tx
Dimensions 125*115*34mm(L*W*H)
Note Images may not be exact, please check specifications.
