Product Description

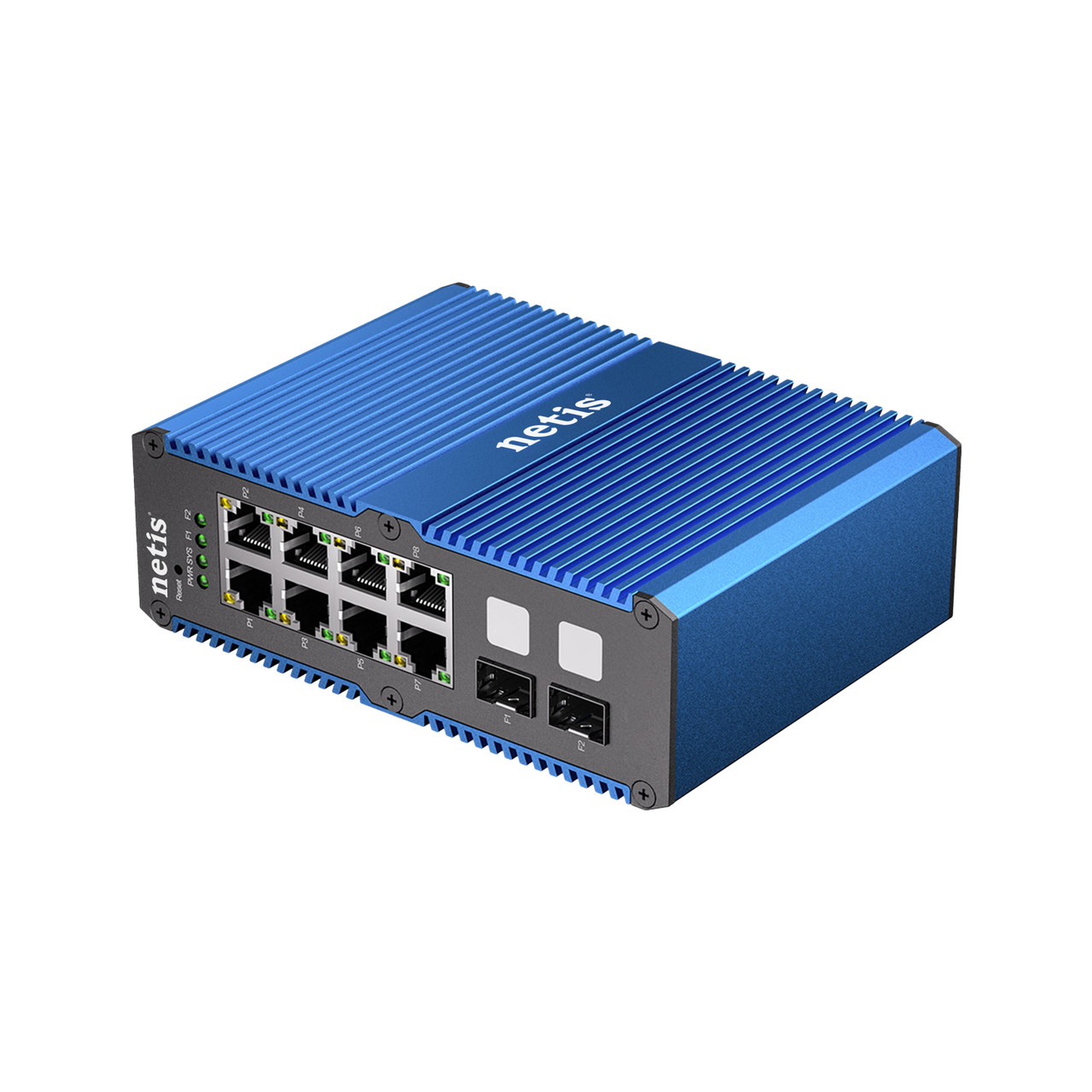

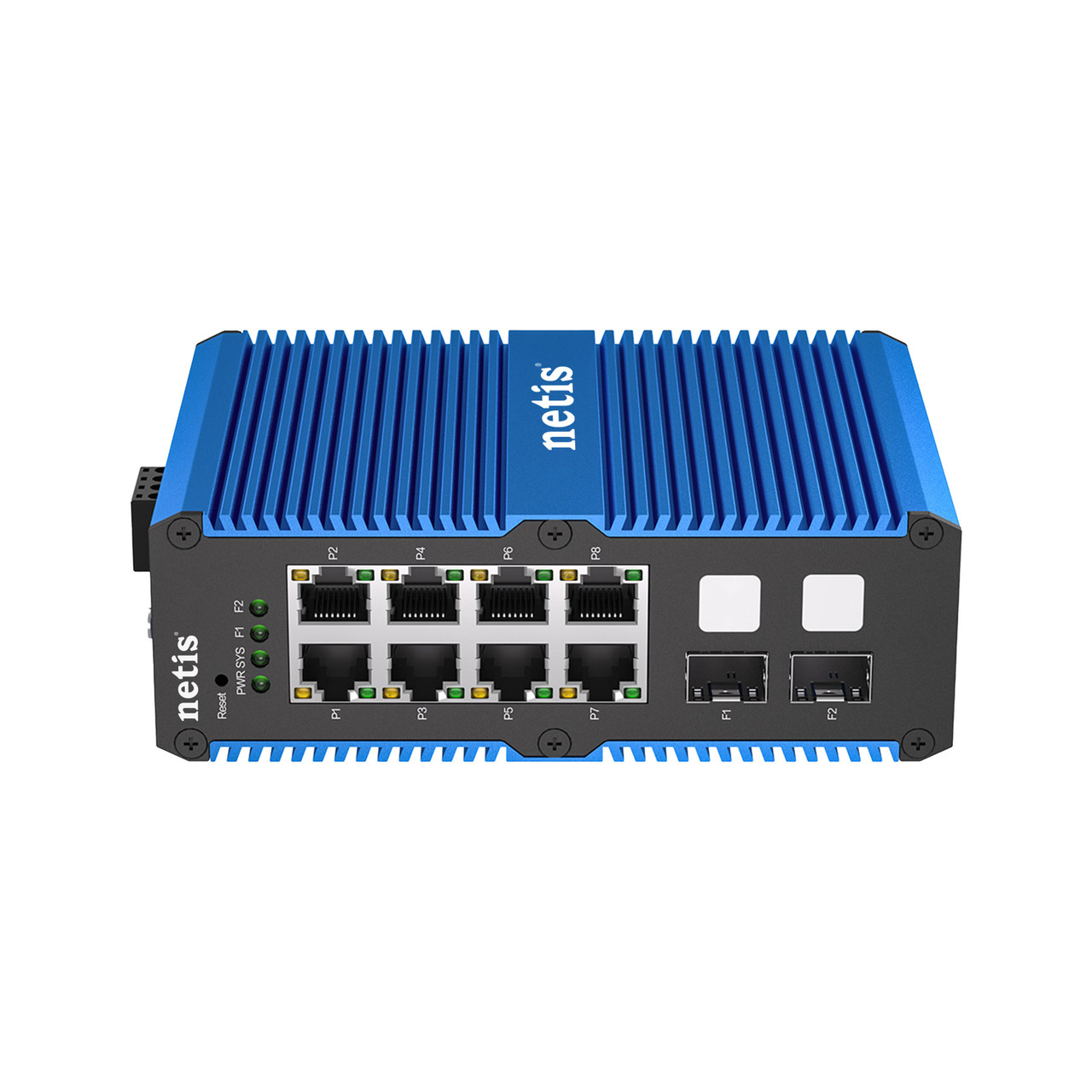

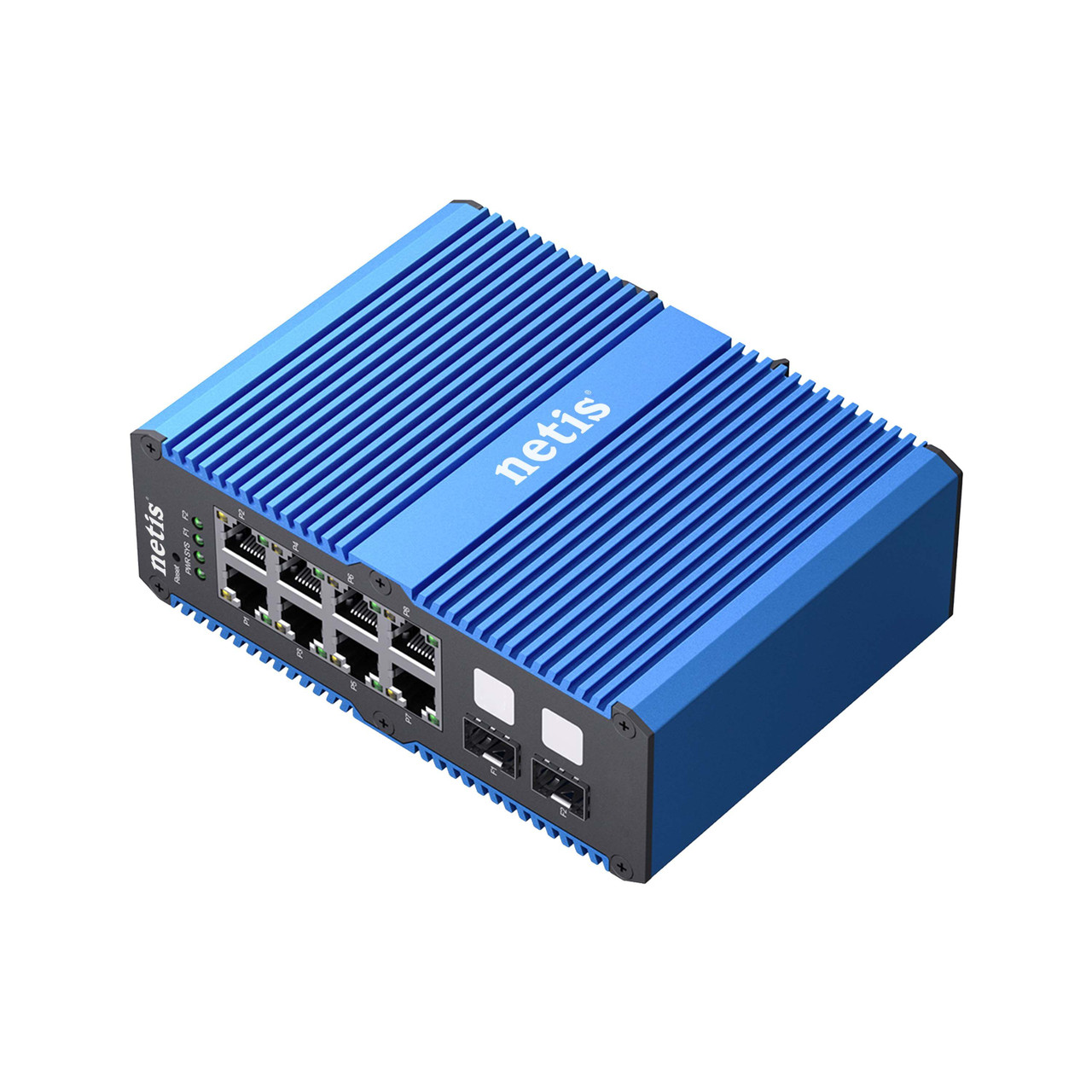

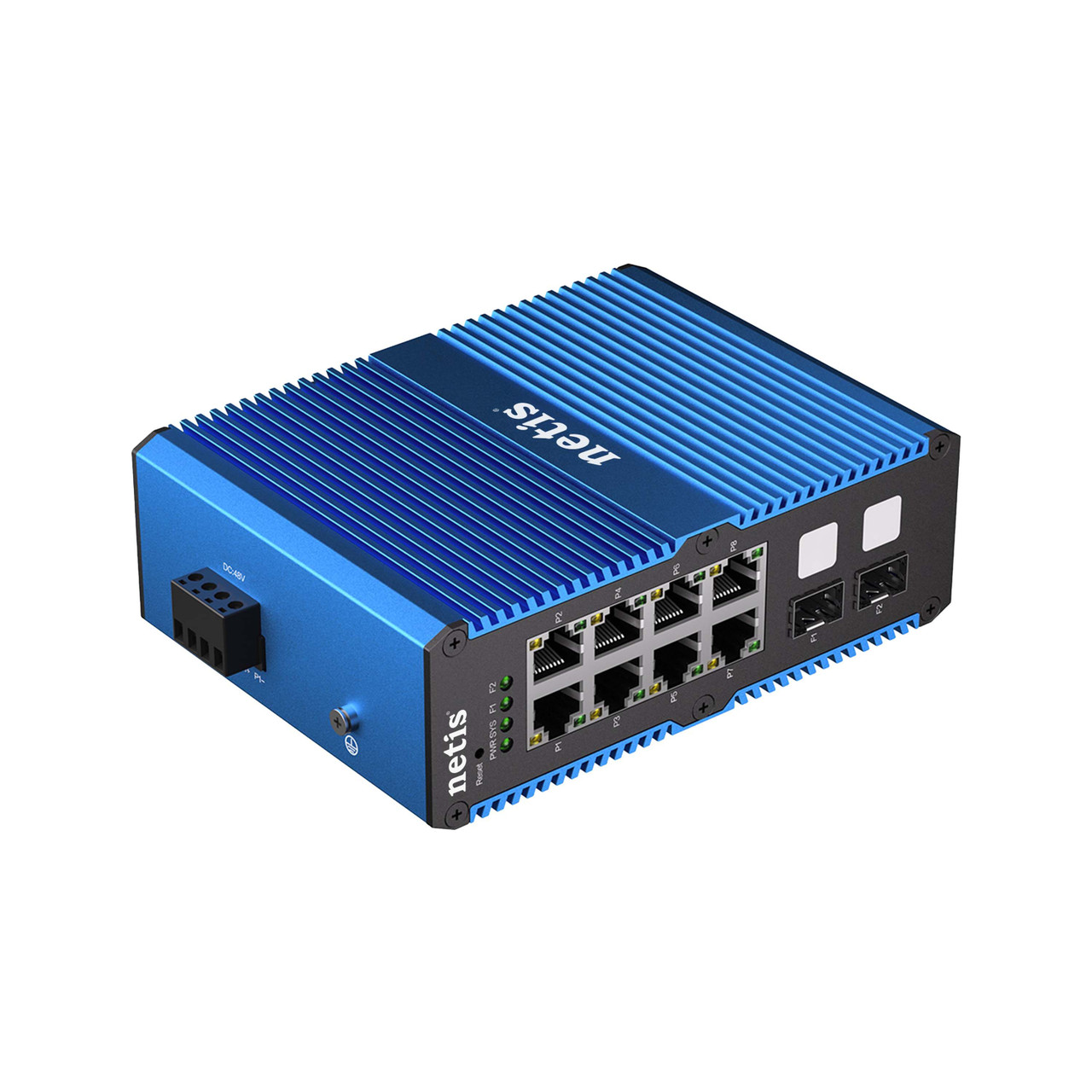

Netis 8+2 Gigabit Ethernet Management Industrial Switch - NIS3010G-WMC
Enhance your industrial network infrastructure with the robust and reliable Netis NIS3010G-WMC. This 8+2 Gigabit Ethernet Management Industrial Switch is designed to withstand harsh environments while providing high-performance network connectivity. Boost productivity and minimize downtime with its advanced features and resilient design. Ideal for factory automation, intelligent transportation systems, and other demanding industrial applications.
Benefits
- Enhanced Reliability: Built with a ruggedized metal housing and wide operating temperature range, this switch ensures continuous operation even in challenging conditions. Protect your network investment with a device built to last.
- High-Performance Connectivity: Experience seamless data transfer with 8 Gigabit Ethernet ports and 2 Gigabit SFP slots. This provides ample bandwidth for demanding industrial applications, ensuring smooth and efficient operations.
- Advanced Management: Take control of your network with comprehensive management features including VLAN, QoS, and port mirroring. Optimize network performance and prioritize critical traffic for enhanced productivity.
- Secure Network Operations: The NIS3010G-WMC incorporates security features to protect your network from unauthorized access and threats. Maintain a secure and stable network environment for your industrial operations.
- Easy Installation & Maintenance: Designed for simple installation and configuration, the switch minimizes deployment time and effort. Streamline your network management with its user-friendly interface.
Key Features:
- The NIS3010G-WMC is L2 full gigabit industrial Ethernet switches providing 8*10/100/1000Base-T electrical ports and 2*1000Base-X optical ports.
- It supports abundant L2 features such as VLAN, RSTP, supports Web management.
- NIS3010G-WMC has industrial metal case with IP40 protection class and meets EMC level 4 industrial requirements.
- It provides DIN rail mounting design and supports wide operating temperature range of -40 to the 85°C.
- These features make the product ideal for cost-effective applications that require high-reliability transmission, such as video surveillance, tolling systems, ITS, and factory automation.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN NIS3010G-WMC
Interface Optical port: 2 1000Base-X (SFP) Electrical port: 8 10/100/1000Base-T (RJ45)
Power Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block Input Voltage: 48-56V Full load power consumption: < 4W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support
LED Power LED: PWR Interface LED: RJ45 (Link&ACT),Fiber(Link&ACT)
PoE IEEE 802.3.af : Supported 15.4W/port IEEE 802.3.at: Supported 30W/port
Ethernet Properties MAC Table: 4K MTU: 9K Bytes Switch Capacity: 12Gbps Packet Buffer:4.1M Packet Forwarding Rate: 8.928Mpps VLAN: port VLAN,802.1Q VLAN range:4K
EMS IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-Tx IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X
Physical Housing: Metal, Fanless Protection Class: IP40 Dimensions: 40mm x 90mm x 140mm (W×D×H) Weight: 0.5kg Mounting: DIN-Rail
Note Images may not be exact, please check specifications.
