Product Description

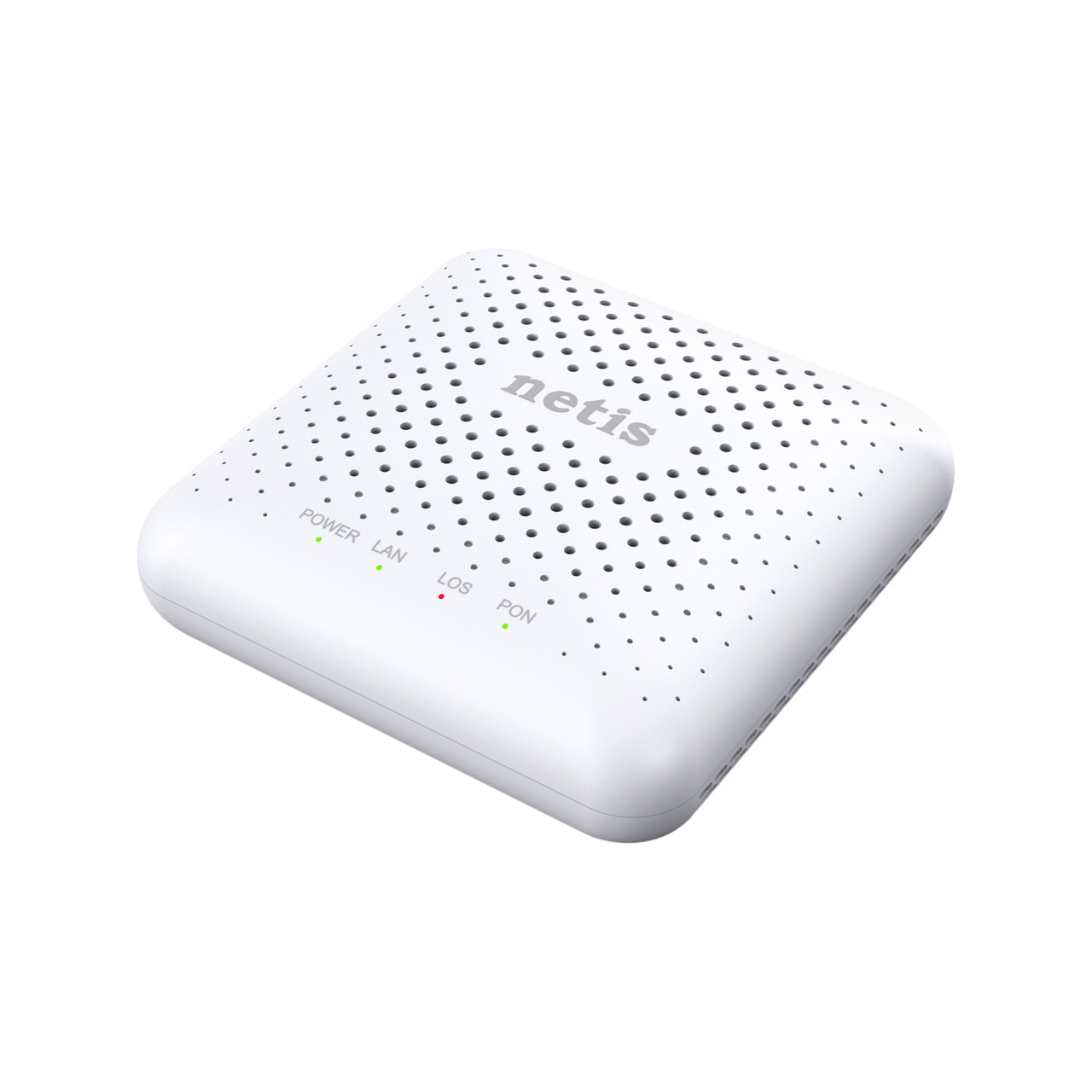

Netis Single Port GPON ONT Support IEEE 802.1Q VLAN protocol - GP2101
Elevate your network connectivity with the Netis GP2101 Single Port GPON ONT. This high-performance device offers a reliable and efficient solution for accessing high-speed internet services delivered via a Gigabit Passive Optical Network (GPON). Ideal for both home offices and small businesses, the GP2101 ensures a smooth and stable online experience.
Benefits:
- Lightning-Fast Speeds: Experience blazing-fast download and upload speeds, enabling seamless streaming, lag-free gaming, and efficient data transfer.
- Reliable Connectivity: Enjoy a consistent and stable internet connection thanks to the GP2101's advanced GPON technology.
- Enhanced Security: Benefit from integrated security features that protect your network from unauthorized access and threats.
- Simple Setup: The user-friendly design allows for quick and easy installation, minimizing downtime and maximizing productivity.
- Versatile Performance: The support for IEEE 802.1Q VLAN protocol allows for network segmentation, improving performance and security.
Key Features:
- The point to multi-point network topology is adopted to effectively collect and aggregate the scattered Ethernet services of users, and the 10 / 100 / 1000mEthernet standard RJ45 interface is provided on the user side
- Dynamic bandwidth allocation mechanism enables all users to share 2.5Gbps bandwidth more reasonably, realize reliable quality of service (QoS), and ensure the quality of different services in the same network
- Support IGMP multi-cast and make effective use of broadband
- Support multi-cast VLAN
- GPON or EPON up-link is adopted to meet ITU-T g.984/g.988 standards
- Provide remote management through OLT and support local console management
- Support the line loopback detection function of Ethernet interface on user side
- Support IEEE 802.1Q VLAN protocol
- Support broadcast storm suppression
- Support PPPOE routing function
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN GP2101
User Interface 1 * 10/100/1000Mbps RJ45 Interface with LAN
PON Interface Up Stream 1.25Gbps,Down Stream 2.5Gbps or 1.25Gbps on both streams Distance:20 km High sensitivity optical receiver: <=-28dBm Laser power: >=0dBm Security: ONU authentication mechanism
DDR/Flash 32MB 64MB(optional) / 8MB
Network Security IEEE 802.1x port based access control Support local and remote authentication EAP termination or transparent transmission Limit maximum users per port Port Protection Message storm control
Management and Configuration Support IGMP Snooping Support 255 multicast entry Support IGMP v1/v2
Power Supply 110～240AC 12V/0.5A DC Power Interface 2.1/5.5mm Power:2.5W
Compliance IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q VLAN IEEE 802.1w RSTP
Dimensions 89 * 85.9 * 30.7mm(L * W * H)
Note Images may not be exact, please check specifications.
