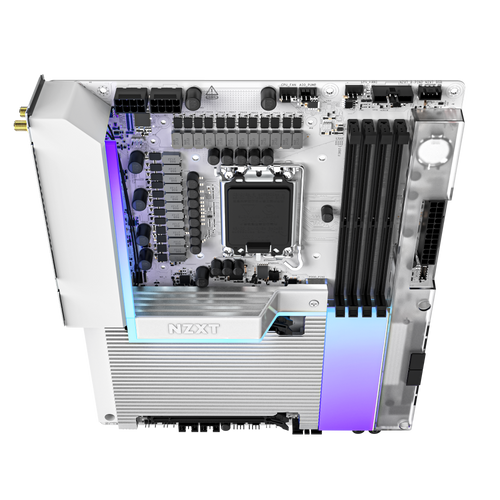

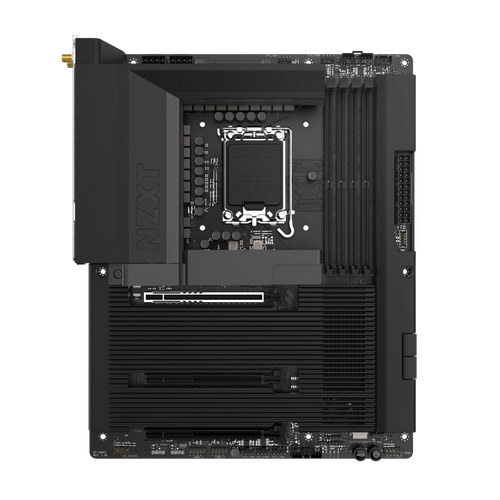

NZXT Intel Z890 ATX Gaming Wi-Fi 7 Motherboard with Full Cover & RGB - N9-Z89XT-W1

SKU # HS-NZX-N9-Z89XT-W1

Condition # New

Request A Quote

UPC:: 810074846240
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |

One-Click Purchasing

Fast Express Shipping

Safe & Secure Checkout

Purchase Protection

Every Order is Protected By BuySafe

Our commitment to sustainability ensures that every purchase supports responsible operations and a healthier planet.

SSL Secure Payment

We make sure your orders are processed without delay — every purchase is prepared and dispatched the next working day.

Express Shipping

Price Match Guarantee

Your payment is secure

Your privacy and security are our top priority. Our advanced encrypted payment system protects your information during every transaction.

Get expert help

Our team of experienced professionals is always ready to help.

Overview
Shipping
Warranty
FAQ's

Product Details

The N9 Z890 blends cutting-edge performance with sleek design, making it an ideal foundation for modern Intel® gaming PCs. Built for the latest Intel® Core™ Ultra processors, it delivers overclocking-ready power, optimized thermals, and PCIe® 5.0 support, plus high-speed Wi-Fi 7 and Thunderbolt™ 4 connectivity. With a full-metal cover and integrated RGB lighting, the N9 Z890 offers a seamless, personalized aesthetic for any build.

Intel® LGA 1851 Socket: Ready for the latest Intel® Core™ Ultra processors (Series 2).
Advanced Power Delivery: A robust 20+1+1 power stage design (110A SPS) and an 8-layer, low-loss 2oz copper PCB ensure exceptional stability and overclocking potential.
Optimized Thermal Design: Stay cool under pressure thanks to a high-performance VRM heatsink array (fin stack, heat pipe, thermal pads, dual PWM fans) and dedicated heatsinks for all M.2 slots.
PCIe® 5.0 M.2 Slot: Access PCIe® 5.0 storage speeds with the top M.2 slot, plus four additional PCIe® 4.0 M.2 slots.
DDR5 Performance: Four dual-channel DDR5 RAM slots accelerate load times, enhance multitasking, and support speeds up to 8000+ MHz through overclocking.
High-Speed Connectivity: Two Thunderbolt™ 4 ports deliver 40 Gbps data transfer speeds, video output, and device charging through a single, versatile connection.
Next-Gen Networking: Enjoy ultra-fast speeds with Wi-Fi 7 (320 MHz) and 5G LAN, ensuring a flawless, lag-free connection for both wireless and wired setups.
Seamless Style: Achieve a sleek and sophisticated aesthetic with a full-metal cover that conceals the majority of the PCB.
Integrated RGB Lighting: Personalize your build with vibrant onboard RGB lighting, controlled through NZXT CAM software.
Single-Frame Fans: Effortlessly connect and control NZXT RGB single-frame fans with the convenient 8-pin combo fan headers (4-pin RGB + 4-pin PWM).

Inside the Box

N9 Z890 Motherboard1
SATA cables (2 x 90°, 2 x 180°)4
M.2 screws5
Wireless antenna2
User Manual1
NZXT 8-pin splitter2

Tech Specs

CPU

CPU:Intel® Socket LGA 1851 for Intel® Core™ Ultra Processors (Series 2)

Chipset

Chipset:Intel® Z890

Memory

DIMM Slots:4 x DDR5 only
Memory Architecture:Dual-Channel
Intel® Extreme Memory Profile (XMP) 3.0:Supported
OC Frequency:Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.

Expansion Slots

PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1
PCIe 4.0 ×16 slots (PCIEX16_2 & PCIEX16_3), support ×4 mode:-
PCIe 4.0 ×16 slots (PCIEX16_2), support ×2 mode:1
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2:1

Storage

M.2_1, Type 2280 (PCIe 5.0 ×4 mode):1
M.2_2, Type 2280 (PCIe 4.0 ×4 mode):1
M.2_3, Type 2280 (PCIe 4.0 ×4 mode):1
M.2_4, Type 2280 (PCIe 4.0 ×4 mode):1
M.2_5, Type 2280 (PCIe 4.0 ×4 mode):1
SATA 6Gb/s ports:4

LAN

LAN:Realtek® 5.0G LAN

Wireless

Dual-Band Wi-Fi 7:Supported (320MHz)
Bluetooth:v5.4

AUDIO

AUDIO:Realtek® ALC4082 Audio Codec

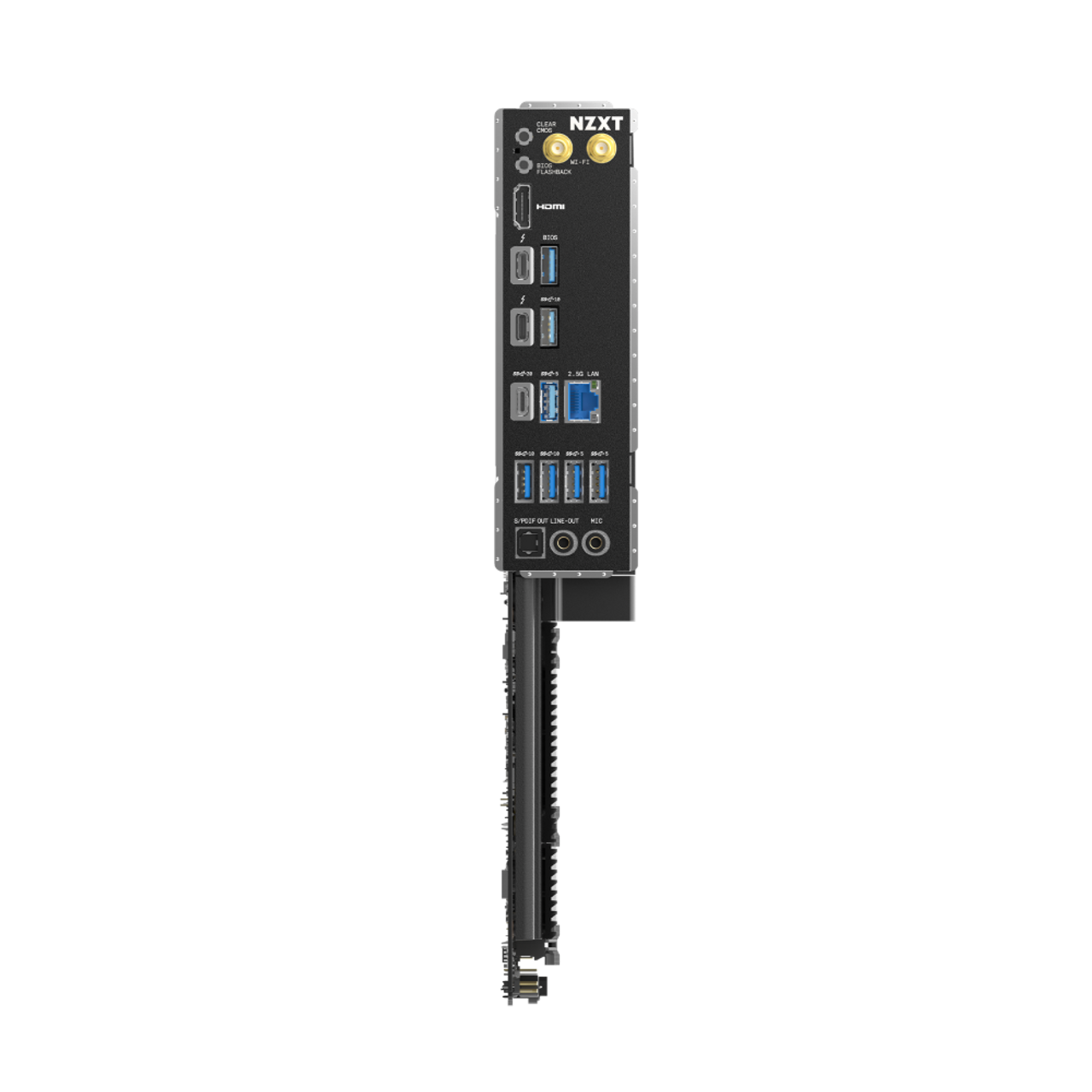

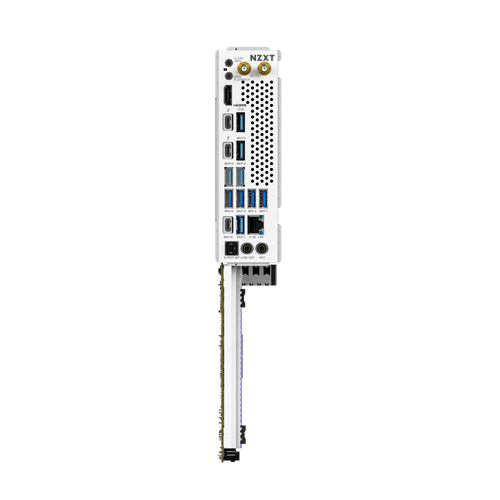

Rear I/O

Wireless antenna SMA connectors:2
HDMI™ port:1
Thunderbolt™ 4 ports:2
USB 3.2 Gen 2x2 Type-C® port:1
USB 3.2 Gen 2 ports:6
USB 3.2 Gen 1 Type-A ® ports:3
Clear CMOS button:1
LAN (RJ45) port:1
Audio jacks:2
Optical S/PDIF out port:1

Internal I/O

24-pin ATX power connector:1
8-pin ATX 12V power connector:2
4-pin CPU_FAN connector:1
4-pin AIO_PUMP connector:1
4-pin SYS_FAN connectors:3
NZXT RGB LED connector:1
5V ARGB LED connectors:2
NZXT 8-pin PWM connectors:2
USB 2.0 header (Up to 4 USB 2.0 ports):2
USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2
USB 3.2 Gen2x2 front panel header (For USB Type-C):1
Front panel audio connector:1
Power button:1
Reset button:1
Post LEDs:1
Digital Debug LED:1

General

Operating System:Windows® 11/10 64-bit
Form Factor:ATX
Warranty:3 years
