Omnitron miConverter 1220D-0-11 Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 1804.46 ft - AC - External, Standalone - 1220D-0-11

Omnitron miConverter 1220D-0-11 Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 1804.46 ft - AC - External, Standalone, Wall Mountable, Rail-mountable

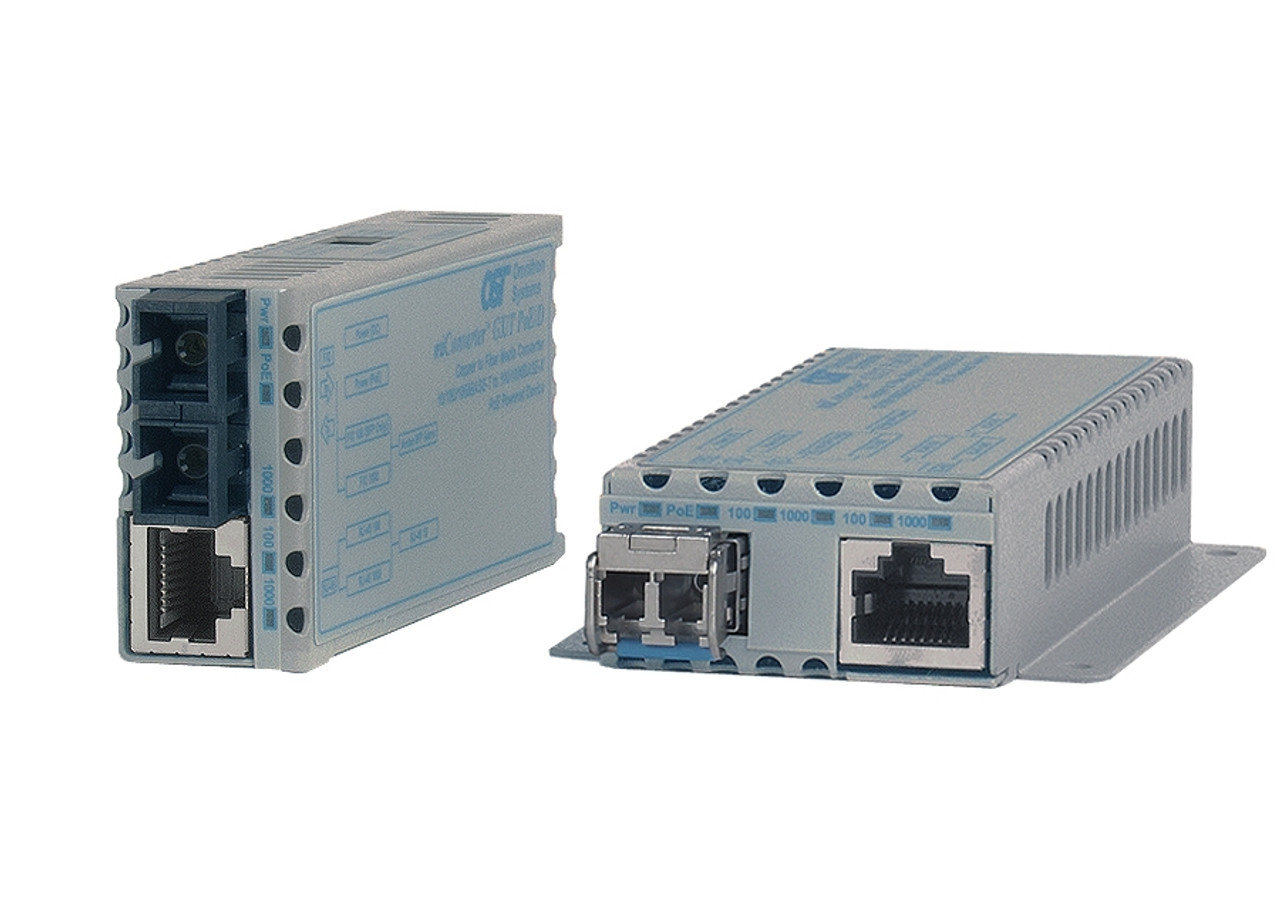

The miniature miConverter™ GX/T PoE/D is a rate-switching 10/100/1000 RJ-45 copper to 100/1000BASE-X fiber media converter that can be powered with Power over Ethernet (PoE) when connected to PoE switches and midspans. It can also be powered with DC power or AC power with an external power adapter. The miConverter GX/T PoE/D provides reliable and cost-effective fiber extension in a variety of FTTx applications, including Fiber to the Desktop and Fiber to the Premises.

The miConverter GX/T PoE/D features fixed fiber connectors and Small Form Pluggable (SFP) transceivers. ST, SC and LC fixed fiber connectors support multimode, single-mode, and single-mode single-fiber. 100BASE-X and 1000BASE-X SFP transceivers enable adaptability to different fiber types and wavelengths, including Coarse Wave Division Multiplexing (CWDM) wavelengths to increase the bandwidth capacity of fiber infrastructure.

The RJ-45 port can auto-negotiate by detecting the speed and duplex-mode of the connected device. Upon connection to the UTP device, the RJ-45 port speed adjusts to either 10Mbps, 100Mbps or 1000Mbps, and the duplex-mode adjusts to either Full-Duplex or Half-Duplex. Auto-crossover enables the connection to workstations (MDI port) or hub/switches (MDI-X port) without requiring a crossover cable.

DIP-switches enable manual configuration of the RJ-45 port speed and duplex modes, and configuration of Link Modes (fault-detection capabilities) that enable in the identification and isolation of link failures.

Diagnostic data is provided through front-panel LED indicators that assist in network installation and maintenance. The LEDs display the availability of power, port activity, link status, and the speed and duplex modes of the RJ-45 port.
