Omnitron 10G Unmanaged Multi-Gigabit / Multi-Rate PoE + Switch - 2x 10/100/1000BASE-T PoE/PSE, 2x 10/100/1000/2.5G/5G/10GBASE-T PoE/PSE, 1x 10/100/1000/2.5G/5G/10GBASE-T, DC Terminal Powered, 5 Year Warranty - 9651-1-14-9

Product Description

Omnitron 10G Unmanaged Multi-Gigabit / Multi-Rate PoE + Switch - 2x 10/100/1000BASE-T PoE/PSE, 2x 10/100/1000/2.5G/5G/10GBASE-T PoE/PSE, 1x 10/100/1000/2.5G/5G/10GBASE-T, DC Terminal Powered, 5 Year Warranty - 9651-1-14-9

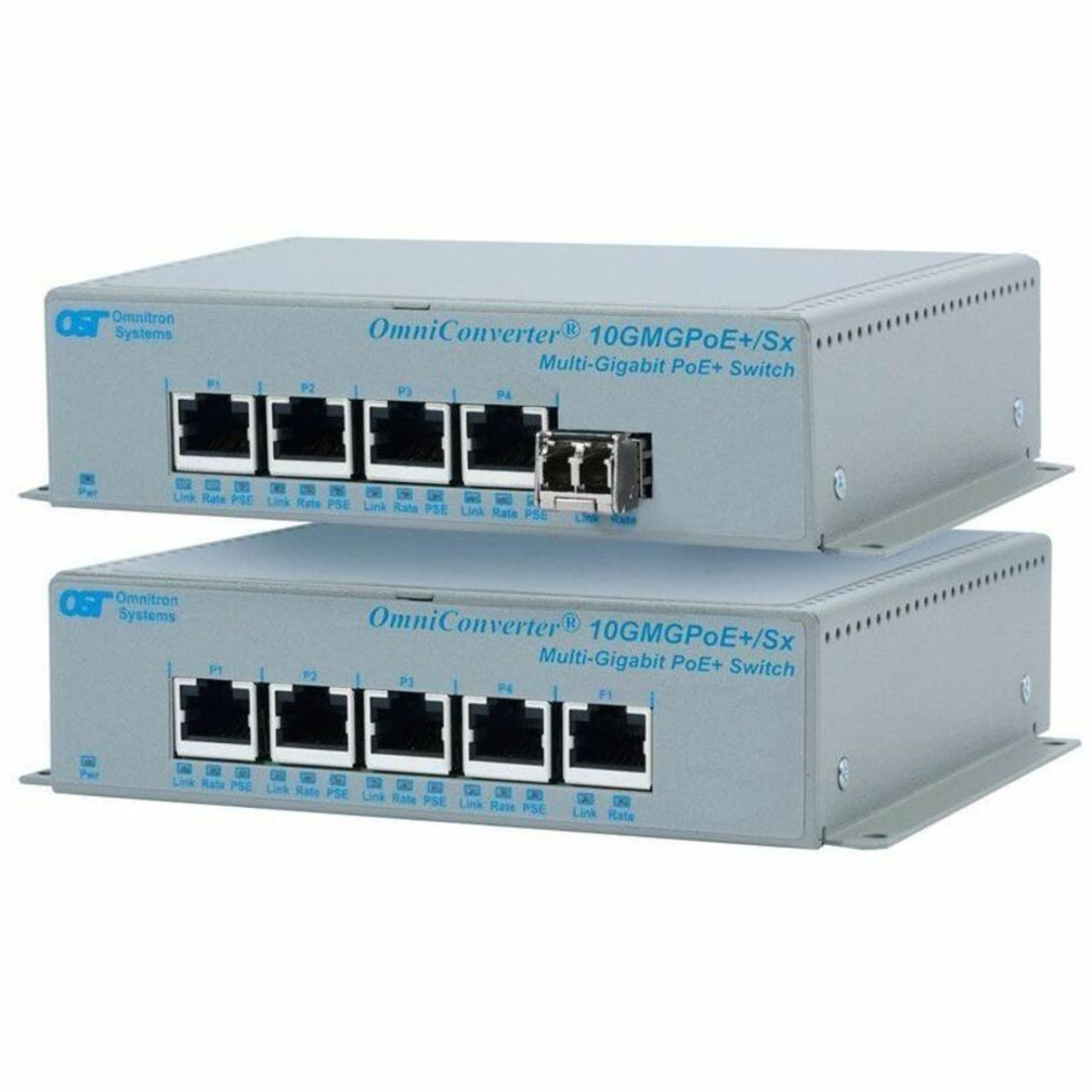

The OmniConverter 10GMGPoE+/Sx and 10GMGPoEBT/Sx are unmanaged multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 Power-over-Ethernet downlink/access ports. They support PoE, PoE+ and PoEBT up to 100 watts depending on the model.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The 10GMGPoE+/Sx supports IEEE 802.3at (15 and 30W) and the 10GMGPoEBT/Sx supports IEEE 802.3bt (60 and 100W) per user port depending on the model.

The OmniConverter switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths. The OmniConverter switches support frame sizes up to 10,240 bytes.

The OmniConverter PoE switches are well suited for the power and bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. OmniConverter 10G switches provide high-speed network distance extension with fiber optic cabling, and function as PoE injectors.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

Configurable features include a PoE power reset function that enables a PD device to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, triggering the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 5 seconds when a loss of receive fiber link is detected by the OmniConverter.

The compact standalone OmniConverter switches can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connector or an external 100 to 240VAC power adapter.

• Unmanaged 10G multi-gigabit/multi-rate PoE Ethernet Switch
• One SFP/SFP+ transceiver uplink port or multi-gigabit/multi-rate copper port
• SFP/SFP+ uplink port supports copper and fiber transceivers
• Multi-gigabit/multi-rate ports supports speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
• Two multi-gigabit/multi-rate RJ-45 PoE and two 10/100/1000 RJ-45 PoE downlink/access ports
• Models support IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (60W and 100W)
• Supports jumbo frames up to 10,240 bytes
• Configurable PoE Power Reset
• Directed Switch mode AKA Camera mode to prevent port flooding
• AC to DC Power Adapter or 2-Pin DC terminal
• Wall, Rack and DIN-rail mountable
• Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
• TAA, BAA and NDAA compliant, and Made in the USA
• Free 24/7/365 Technical Support
