Product Description

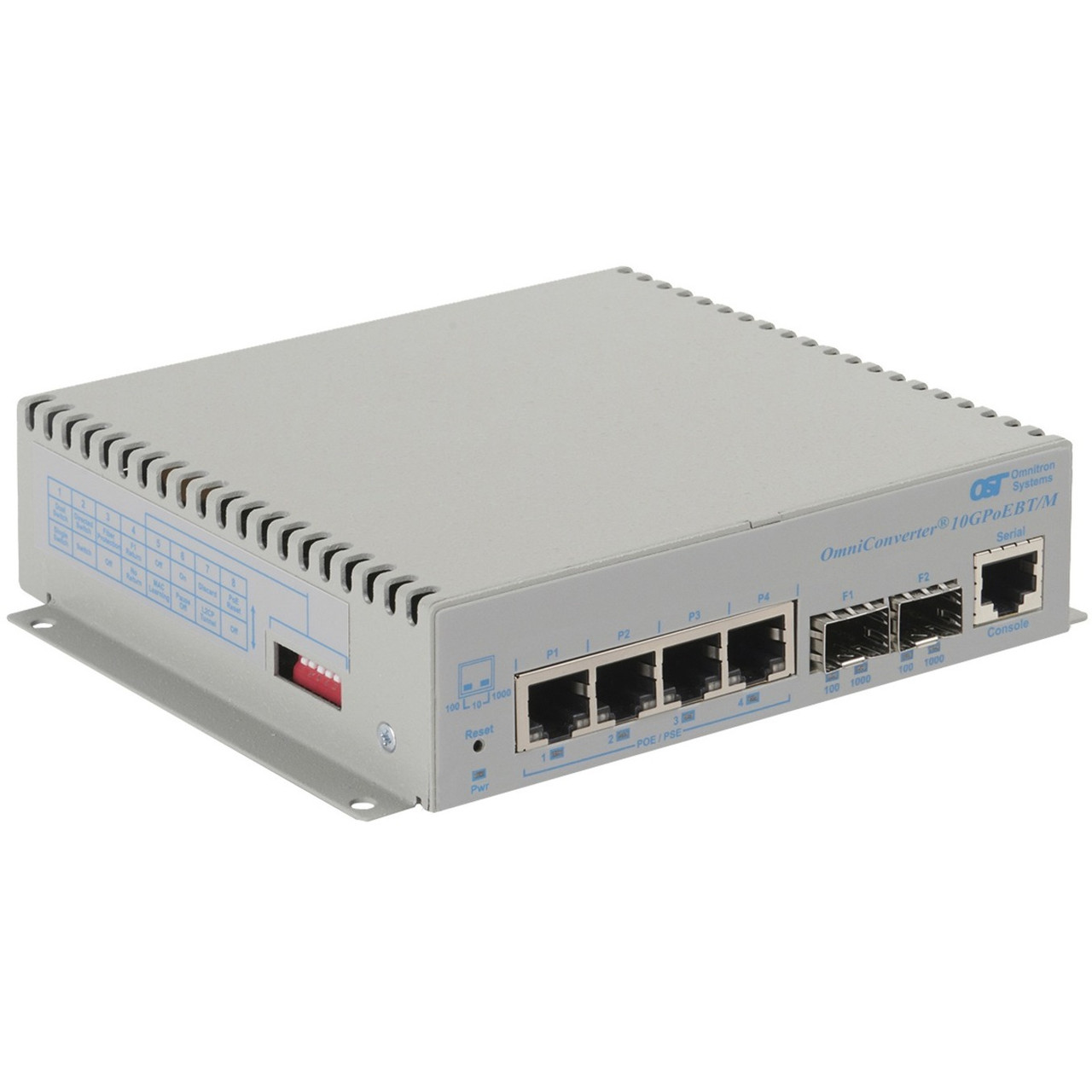

Omnitron OmniConverter 10GPoEBT/M 3160B-0-24-9Z Ethernet Switch - 6 Ports - Manageable - 2 Layer Supported - Modular - 2 SFP Slots - 60 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty
The OmniConverter 10GPoEBT/M are managed Ethernet switches that feature two 1/10G uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports. The 10GPoEBT/M available with 60W or 100W (IEEE 802.3bt) per user port.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.
The switches support Dual Device mode that enables the 10GPoEBT/M to operate as two independent and isolated Ethernet switches.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.
The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.
The switches feature a Remote PoE Power Reset function that enables the user to remotely power-cycle and reset each PD. They also feature a configurable Heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. The Remote Power Reset and the Heartbeat Reset functions increase the networks reliability, up time and save manpower time and expense by automating the recovery of remote PD equipment.
All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Shelf Mountable design for mounting convenience
- Management capability allows maximum efficiency and with unrestricted control
- Gigabit Ethernet port for ultra-fast network speeds
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Optical Fiber media support for efficient and reliable connectivity
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
- Effectively reduces downtime with improved network performance
- Terminal Block (2 Wire) plug/connector type for convenient usage with added dependability
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
- OmniConverter 10GPoEBT/M 3160B-0-24-9Z Ethernet Switch
- User Manual
