Product Description
NVIDIA GeForce RTX 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient Nvidia Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds With ray tracing and ultra-high FPS gaming With the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration.
The NVIDIA® GeForce RTX® 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life With ray tracing and AI-powered graphics. It’s powered by the ultra-efficient Nvidia Ada Lovelace architecture and up to 12GB of superfast G6X memory.
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs With blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
KEY FEATURES
- Dedicated Ray Tracing Cores
- Dedicated Tensor Cores
- NVIDIA DLSS
- Game Ready and Nvidia Studio Drivers
- NVIDIA® GeForce Experience™
- NVIDIA Broadcast
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- PCI Express® Gen 4
- Microsoft DirectX® 12 Ultimate
- Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6
- HDCP 2.3
- DisplayPort 1.4a
- Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a
MINIMUM SYSTEM REQUIREMENTS
- PCI Express-compliant motherboard With one 3.3-width x16 Graphics slot
- Three 8-pin supplementary power connectors
- 700 W or greater system power supply
- Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
- Internet connection1
PNY Part Number | VCG408012TFXXPB1 |
---|---|
UPC Code | 751492761206 |
CUDA Cores | 7680 |
Clock Speed | 2310 MHz |
Boost Speed | 2610 MHz |
Memory Speed (Gbps) | 21 |
Memory Size | 12GB GDDR6X |
Memory Interface | 192-bit |
Memory Bandwidth (GB/sec) | 504 |
TDP | 285 W |
NVLink | Not Supported |

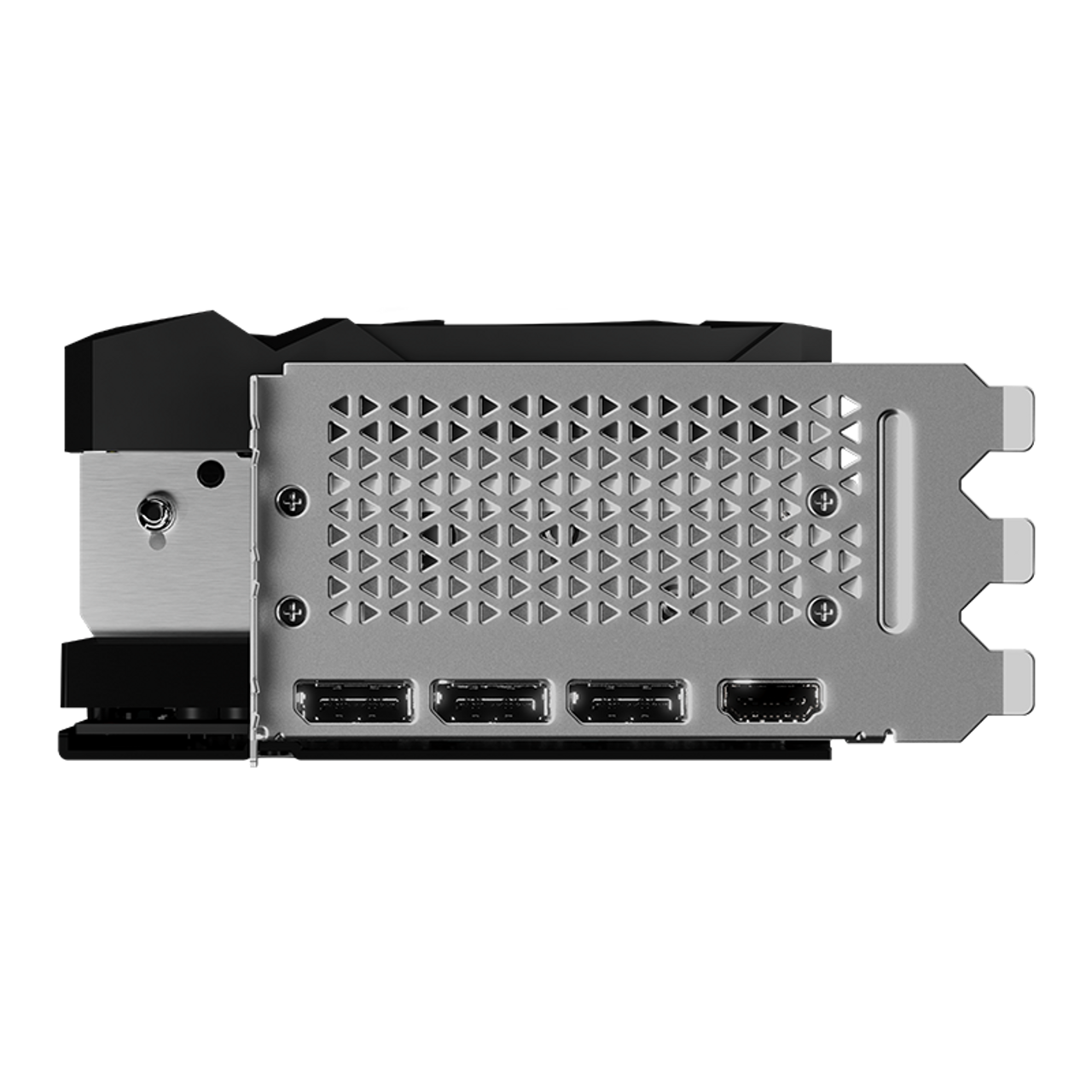

Outputs | DisplayPort 1.4a (x3), HDMI 2.1 |
Multi-Screen | 4 |
Resolution | 7680 x 4320 @120Hz (Digital) |
Power Input | 16-pin (One 16-pin to Three 8-pin) |
Bus Type | PCI-Express 4.0 x16 |
Card Dimensions | 13.06" x 5.39" x 2.6"; 3.3 Slot |
Box Dimensions | 15.94" x 7.83" x 4.06" |
