Product Description

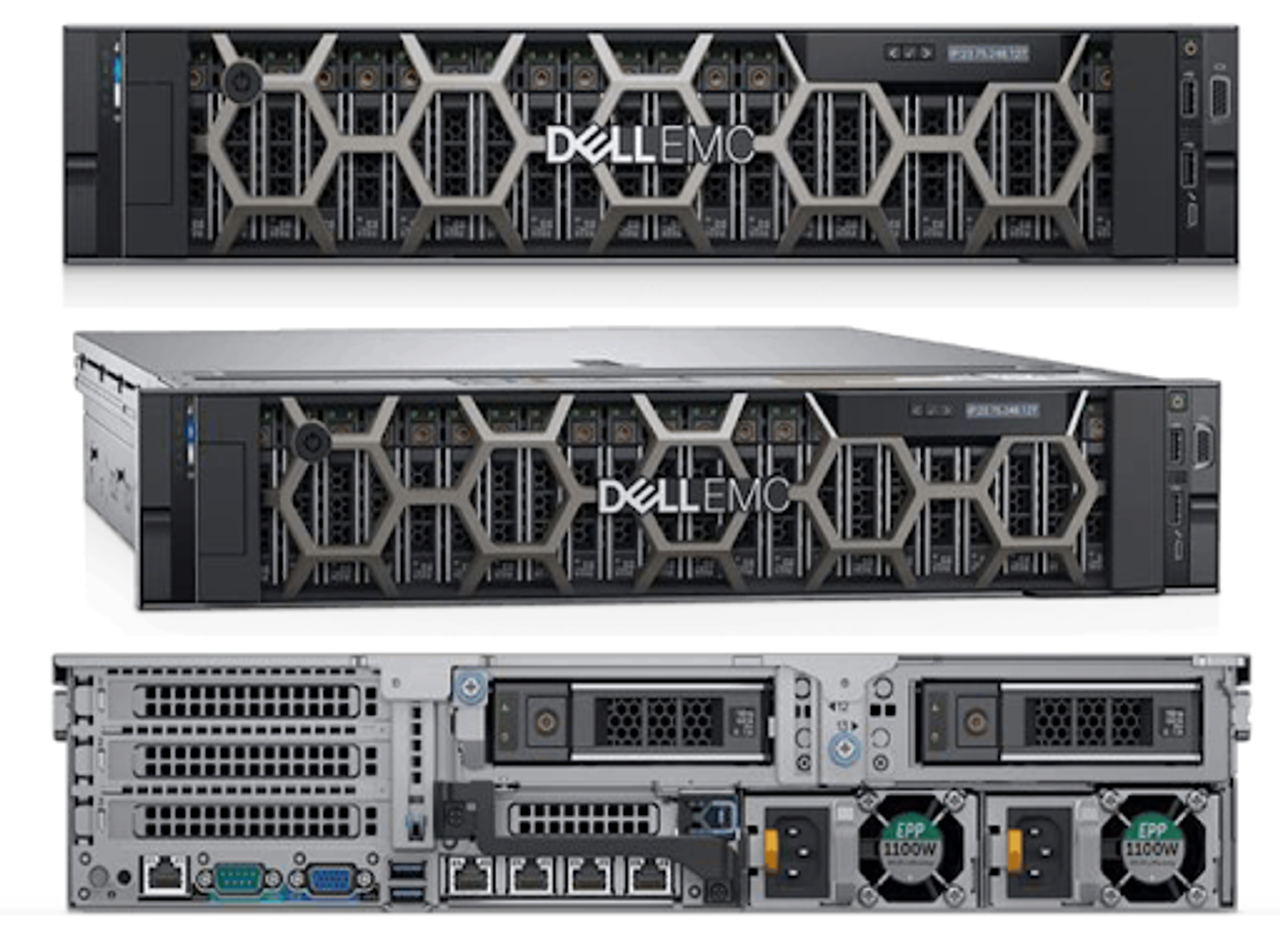

| PER740XDMM1-35 | PowerEdge R740xd 3.5" Chassis with Up to 12 x 3.5 HDDs for 1CPU Configuration Intel Xeon Silver 4210 2.2G 10C/20T 9.6GT/s 13.75M Cache Turbo HT (85W) DDR4-2400 8GB RDIMM 3200MT/s Single Rank 300GB 15K RPM SAS 12Gbps 512n 2.5in Hot-plug HDD 3.5in HYB CARR PERC H730P RAID Controller 2Gb NV Cache Minicard 6 Performance Fans Single HOT-PLUG Power Supply (1+0) 495W iDRAC9 Express Broadcom 5720 Quad Port 1GbE BASE-T rNDC ReadyRails Sliding Rails |
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators
Up to three 300W or six 150W GPUs
Up to three double-wide FPGAs or four single-wide
FPGAs
GPU and FPGA options available only on 24 x 2.5&rdquo
drive chassis. Up to two GPUs are supported on NVMe configurations.
Memoryi
DIMM Speed
Up to 2933MT/s
Memory Type
RDIMM
LRDIMM
NVDIMM
DCPMM (Intel® Optane&trade DC persistent memory)
Memory Module Slots
24 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only)
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 1.53TB
LRDIMM 3TB
NVDIMM 192GB
DCPMM 6.14TB (7.68TB with LRDIMM)
Storage
Front Bays
Up to 24 x 2.5&rdquo SAS/SSD/NVMe max 184TB
Up to 12 x 3.5&rdquo SAS max 192TB
Mid Bay
Up to 4 x 3.5&rdquo SAS max 64TB
Up to 4 x 2.5&rdquo SAS/SSD max 30.72TB
Rear Bays
Up to 4 x 2.5&rdquo SAS/SSD max 30.72TB
Up to 2 x 3.5&rdquo SAS max 32TB
Storage Controllers
Internal Controllers:
PERC H330 H730P H740P HBA330
External Controllers (RAID):
H840 12 Gbps SAS HBA
Software RAID:
S140
Internal Boot:
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB 480 GB
Internal Dual SD Module
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter&trade
OpenManage Connections
IBM Tivoli Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
495W Platinum
750W Platinum
750W Titanium
750W 240VDCi
1100W Platinum
1100W 380VDCi
1600W Platinum
2000W Platinum
2400W Platinum
1100W -48VDC Gold
Hot plug power supplies with full redundancy option
Up to 6 hot plugs fans with full redundancy
Ports
Network Options
4 x 1GbE
2 x 10GbE + 2 x 1bGE
4 x 10GbE
2 x 25GbE
Front Ports
1 x Dedicated iDRAC direct USB
2 x USB 2.0
1 x USB 3.0 (optional)
1 x VGA
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x VGA
Slots
PCIe
8 x Gen3 slots (4 x 16)
Video Card
1 x VGA
Bezel
Optional LCD bezel or security bezel
Form Factor
2U Rack Server
Dimensions & Weight
Height
86.8m (3.4&rdquo)
Widthi
434mm (17.1")
Depthi
737.5mm (29.0")
Weight
33.1kg (73.0lbs.)
Rack Support
ReadyRails&trade sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Regulatory
Product Safety EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Optimize flexibility and density
Ideal workloads:
- Software-defined storage
- Big Data server
- HPC
- Service providers: data tier
Accomplish IT transformation with Dell EMC PowerEdge servers
- Simplify deployment and easily scale from 3 to 1000+ nodes for software-defined storage with Dell EMC Ready Node for ScaleIO.
- Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet demands.
- Drive demanding workloads with 2nd Generation Intel® Xeon® Scalable processors and Intel® Optane&trade DC Persistent Memory.
