Product Description

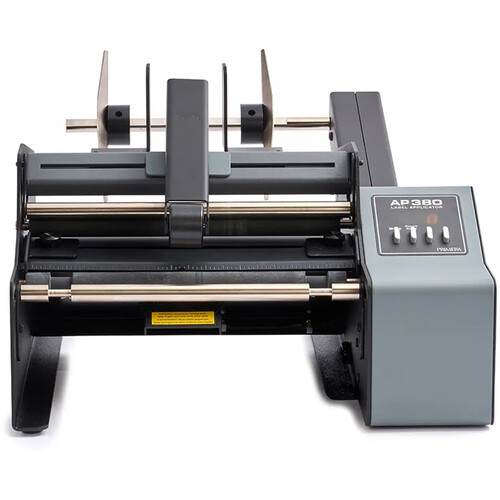

Apply labels in record time with the AP380 Label Applicator from Primera and get more products out the door. Featuring the ability to apply front and rear labels simultaneously, the AP380 is able to apply up to 1500 labels per hour to cylindrical bottles and cans.
The built-in spring-loaded pressure arm makes sure labels are applied firmly and without wrinkles. Apply one or two different labels to a single container and keep track of your volume with a built-in LED counter. The AP380 features a built-in liner rewinder which improves labeling speed for efficient application plus five container roller locations to provide an ideal position for every container.
- Container Width: 1 to 9.4"
- Container Diameter: 0.6 to 6.7"
- Container Shape: Cylindrical and many tapered
- Supply Roll Diameter: Up to 8"
- Media Liner Width: 1 to 8.375"
- Supply Roll Core: 2 to 3" I.D.
- Gap between Labels: Recommended: 1/8 to 1/4"
- Label Type: Die cut with waste removed. Clear labels can be used. Labels digitally die-cut on the LX610 are not compatible because the waste is not removed.
- Liner Thickness: 2 to 10 mil (smoothness will affect feeding: a liner that is too slippery or too thin will slip through the drive rollers)
- Label + Adhesive Thickness: 5 to 15 mil
- Wind Direction: Wound out
- Container Width: 1 to 9.4"
- Container Diameter: 0.6 to 6.7"
- Container Shape: Cylindrical and many tapered
- Supply Roll Diameter: Up to 8"
- Media Liner Width: 1 to 8.375"
- Supply Roll Core: 2 to 3" I.D.
- Gap between Labels: Recommended: 1/8 to 1/4"
- Label Type: Die cut with waste removed. Clear labels can be used. Labels digitally die-cut on the LX610 are not compatible because the waste is not removed.
- Liner Thickness: 2 to 10 mil (smoothness will affect feeding: a liner that is too slippery or too thin will slip through the drive rollers)
- Label + Adhesive Thickness: 5 to 15 mil
- Wind Direction: Wound out
Key Features
- Up to 1500 Labels per Hour
- Applies Front and Back Labels
- Integrated Label Liner Rewinder
- Supports Bottles and Cans
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN AP380
Power Source AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Manufacturer Primera Technology, Inc
DC Input Power 12 VDC at 5 A
Power Consumption 60 W
Environmental Resistance No
Certifications UL, UL-C, CE, FCC Class A
Color Gray
Material of Construction Metal
Dimensions 20 x 13.4 x 8.9" / 508 x 340.4 x 226.1 mm
Weight 20 lb / 9.1 kg
Note Images may not be exact, please check specifications
Required A Volume Purchase Contact us for a special pricing for Volume orders. sales@hssl.us
