Product Description

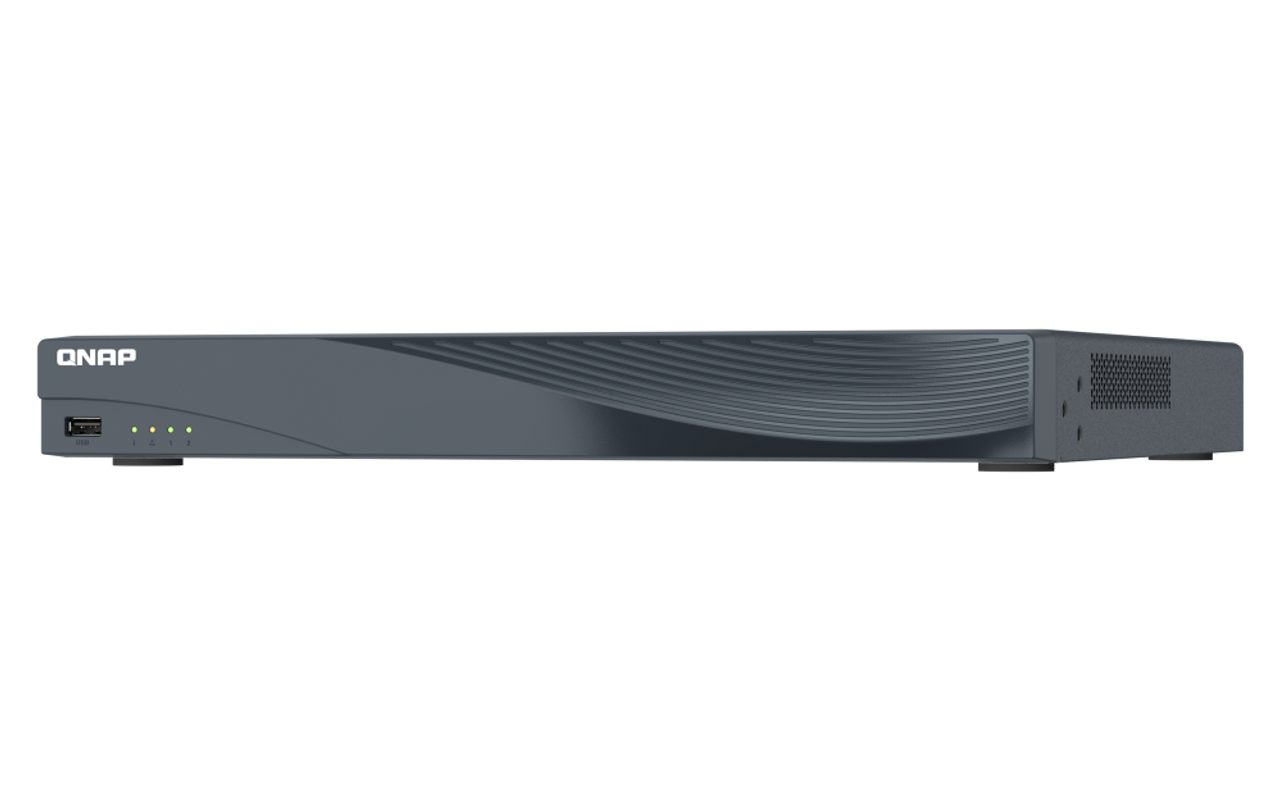

QNAP 16-Channel PoE+ Network Smart NVR - TVR-AI200
The cost-efficient and high-performing TVR-AI200 NVR features two fixed 2.5-inch/3.5-inch SATA hard drive bays and sixteen PoE+ ports. It is plug-and-play in offline mode, and within 10 minutes, you can complete setup and start recording. The TVR-AI200 supports real-time video display and playback with resolutions up to 16 megapixels (MP), H.265+ compression technology, AI video analytics, and remote backup. With the TVR-AI200, smart retail and small-to-medium businesses can deploy smart video surveillance solutions on a budget, ensuring around-the-clock environmental safety.
-
4K high-resolution video
The monitoring interface allows you to playback up to 16MP footage and output clear footage through the 4K HDMI port. It supports advanced compression technologies like H.265+ provided by the cameras, effectively reducing network bandwidth and halving storage space requirements.
-
Supports ONVIF S/T/G standards
Compatible with over 200 brands and more than 8,000 cameras, and supports third-party camera events and API platform services, providing high hardware and software compatibility.
-
Easy installation, quick deployment
Its 16 PoE+ ports directly powers IP cameras, transmitting both power and data through a single Ethernet cable, eliminating the need for complex cabling.
-
24/7 recording
Supports hard drives with capacities up to 24TB for storing recordings for over 540 days. Combined with QNAP's active backup solution, TVR-AI200 ensures uninterrupted multi-site video surveillance.
-
Remote monitoring, powerful management
Advanced real-time detection, notifications, and prompt response to suspicious events, with flexible monitoring through computers or mobile devices to keep you in control.
-
Lightweight AI Business Analytics
Built-in NPU acceleration for smart image/video recognition, offering advanced AI capabilities such as facial recognition and people counting, even without AI-enabled cameras.
Specifications
TVR-AI200
OS | TVR OS (QNE) |
CPU | ARM Quad-core Cortex-A55 up to 2.0GHz |
CPU Architecture | 64-bit ARM |
Graphic Processors | Mali-G52 |
Hardware-accelerated Transcoding | |
System Memory | 4GB |
Maximum Memory | 4GB |
Flash Memory | 4GB (Dual boot OS protection) |
Max Live Cameras (Local Display) | 16Mpx |
Max Playback Cameras (Local Display) | 4 |
Max Concurrent Connection (Client) | 1 from HDMI 4 from other clients via network |
Embedded Channel | 16 |
Max Channel | 16 H264 / 1920x1080 / 30FPS |
Max Throughput | 160 Mbps |
Drive Bay | 2x 3.5-inch SATA 6Gb/s The system is shipped without HDD. |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Gigabit Ethernet Port (RJ45) | 1 |
PoE PSE (802.3af, 15.4W) | Ports 1-16 |
PoE+ PSE (802.3at, 30W) | Ports 1-16 |
PoE Power Output | Ports 1-16 (Max 25.5W per port) |
Total PoE Power Budget | 130W |
USB 2.0 port | 2 |
USB 3.2 Gen 1 port | 1 |
HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
Form Factor | 1U Rackmount compatible |
LED Indicators | HDD 1-2, Status, LAN |
Buttons | Power, Reset |
Dimensions (HxWxD) | 1.73 × 14.17 × 13.11 inch |
Weight (Net) | 4.76 lbs |
Weight (Gross) | 7.94 lbs |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 190W, 100 - 240V |
Power Consumption: HDD Sleep Mode | 20.7 W |
Power Consumption: Operating Mode, Typical | 23.9 W |
Fan | 1 x 40mm, 12VDC |
Sound Level | 45 db(A) |
System Warning | Buzzer |
File System: Internal Hard Drive | EXT4 |
RAID Recovery | |
RAID 1 | |
Single Disk | |
Wake on LAN (WOL) | |
Syslog Server & Client | |
Language | English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek |
