Product Description

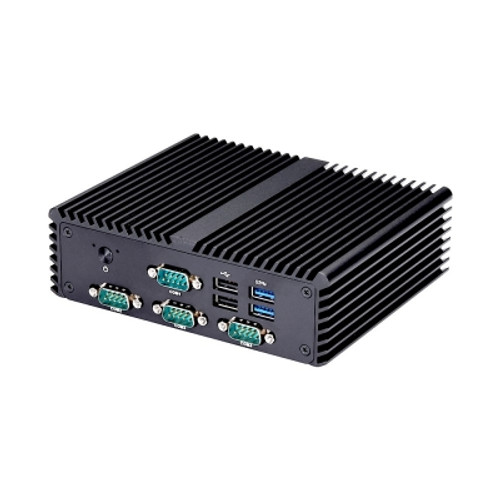

The Qotom Mini PC Q750P S08 is a powerful yet compact computer that is perfect for a variety of tasks, including home entertainment, office use, and light gaming. It features an Intel Celeron J4125 processor, 8GB of RAM, and a 256GB solid-state drive, making it fast and responsive. The Q750P S08 also has two Gigabit Ethernet ports, HDMI and DisplayPort outputs, four serial ports, and six USB ports, giving you plenty of connectivity options.
Here are some of the benefits of using the Qotom Mini PC Q750P S08:
- Powerful performance: The Q750P S08 is powered by an Intel Celeron J4125 processor, which provides plenty of power for everyday tasks.
- Compact design: The Q750P S08 is only 6.7 x 4.6 x 1.6 inches, making it easy to fit in tight spaces.
- Multiple connectivity options: The Q750P S08 has two Gigabit Ethernet ports, HDMI and DisplayPort outputs, four serial ports, and six USB ports, giving you plenty of ways to connect to your devices.
- Windows 10 Pro: The Q750P S08 comes pre-installed with Windows 10 Pro, so you can get up and running right away.
Description | |
CPU | Intel Celeron Gemini Lake Refresh SOC Processor, J4125 Quad core 4M Cache, 2.0 GHz Up to 2.7GHz, 10W |
Memory | Single Channel DDR4 SO-DIMM (Up to 16G) |
Chipset | By CPU |
Graphics
Display | Intel UHD Graphics 600 |
1 x HDMI, 1 x VGA (option), 1 x DP | |
Ethernet
Mini PCIe | 2 x Realtek Gigabit LAN |
1 x Mini PCIE, Half-length for WiFi, or Full-length for 4G | |
Audio | Realtek HD Audio |
Storage | 1 x mSATA,1 x SATA 3.0 |
USB | 6 |
Serial | 4 |
WatchDog | Yes |
GPIO | 1 x 2.0 Pitch Header (Option) |
RS-485 | 2 |
Power On | Yes |
Front I/O | |
Power Button | 1 |
LED | 1 x Power LED, 1 x HDD LED |
Serial Port | 4 x RS-232 (COM3/4 can be set up as RS485) |
USB | 2 x USB 2.0, 2 x USB 3.0 |
Rear I/O | |
DC-IN | 12V3A,5.5mm,2.5mm |
Display | 1 x HDMI, 1 x DP |
Ethernet | 2 x RJ45 Port for Realtek Gigabit LAN |
USB | 2 x USB 3.0 |
Audio | 1 (Mic-in, Line-out) |
Other | |
Material | Aluminum |
Dimension | 155 x 127 x 48mm |
Weight | 0.85kg |
Packaging Dimension | 261 x 218 x 75mm |
Kensington Lock | N/A |
Cooling Mode | Fanless, passtive cooling |
Mounting | VESA Mounting Bracket |
OS Support | |
OS | Windows10,Linux |
Environmental | |
Operting Temp | 0°C~50°C |
Non-Operating Temp | -20°C~80°C |
Humidity | 10%~90% |
Packlist | |
PackList | 1 x MiniPc,1 x Power supply,1 x Power cable,1 x VESA |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN Q750P S08
NOTE Images may not be exact, please check specifications.
