Product Description

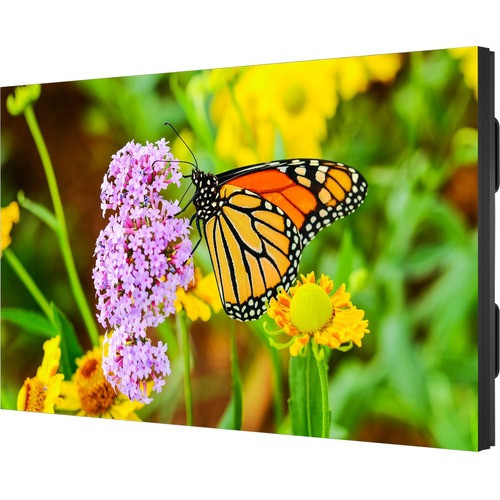

Nec 55" LED Backlit 0.88mm Ultra-Narrow Bezel 3x3 Video Wall Bundle - 55" LCD - 3x3 Video Wall - 1920 x 1080 - Direct LED - 500 Nit - 1080p - HDMI - USB - DVI - SerialEthernet WHILE SUPPLIES LAST
NEC's complete 55" 3x3 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal fordynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552S/UN552VS and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.
- Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy
- Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
- SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
- 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
- Nec Wall Calibrator, MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible
Specifications are provided by the manufacturer. Refer to the manufacturer for additional explanations. Product may not be exactly as shown.
Technical Specs
Miscellaneous
| Package Contents |
|
Network & Communication
| Ethernet | Yes |
Warranty
| Limited Warranty | 3 Year |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC |
Technical Information
| Video Wall Compatible | Yes |
| Bezel Width (Left) | 20 mil |
| Bezel Width (Right) | 20 mil |
Video
| Brightness | 500 Nit |
| Scan Format | 1080p |
| 1080p |
Physical Characteristics
| Weight (Approximate) | 56.90 lb |
| Mount Type | Panel Mount |
| Height | 26.8" |
| Width | 47.7" |
| Depth | 3.9" |
| VESA Mount Standard | 400 x 400 |
Display & Graphics
| Pixel Pitch | 24.8 mil |
| Display Resolution | 1920 x 1080 |
| Screen Size | 55" |
| Number of Screens | 9 |
| Display Screen Type | LCD |
| Backlight Technology | Direct LED |
| Video Wall Configuration | 3x3 |
General Information
| Product Type | Digital Signage Display |
| Manufacturer Part Number | UN552VS-TMX9P |
| Manufacturer Website Address | http://www.necdisplay.com |
| Manufacturer | Sharp Nec Solutions Ltd. |
| Product Model | UN552VS-TMX9P |
| Product Name | 55" LED Backlit 0.88mm Ultra-Narrow Bezel 3x3 Video Wall Bundle |
| Product Line | MultiSync |
| Brand Name | NEC Display |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 2 |
| Number of USB 2.0 Ports | 2 |
| Serial | Yes |
| Number of DisplayPorts | 2 |
Other Details
