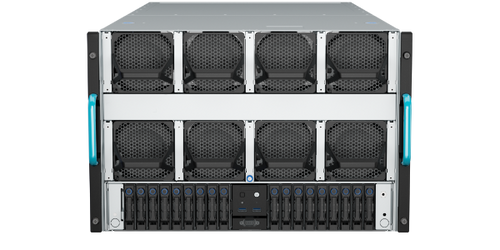

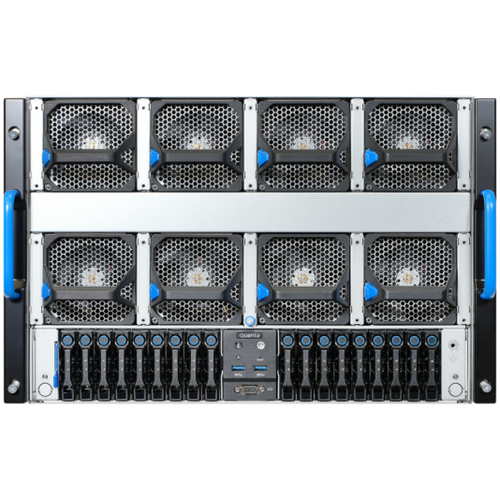

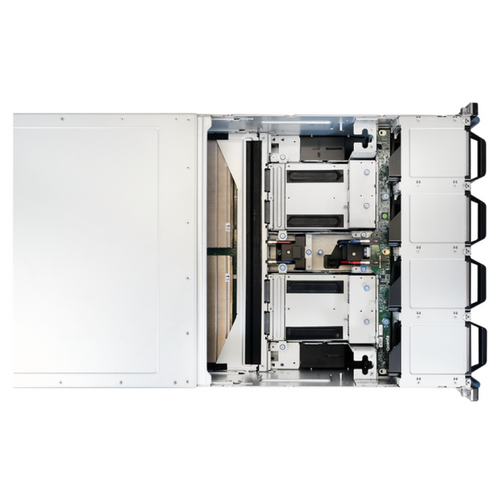

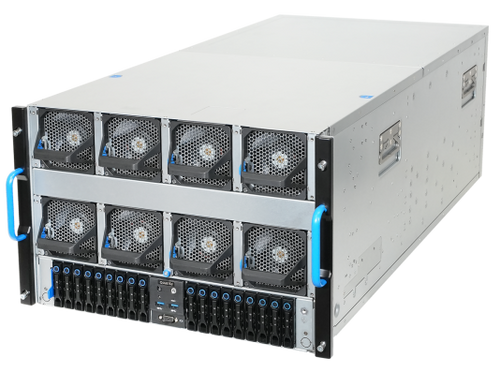

Quanta S7PH | D74H-7U

SKU # HS-QCT-S7PH D74H-7U

Condition # New

Request A Quote

Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |

Safe & Secure Checkout

Purchase Protection

Every Order is Protected By BuySafe

Our commitment to sustainability ensures that every purchase supports responsible operations and a healthier planet.

SSL Secure Payment

We make sure your orders are processed as quickly as possible - stocked products are shipped next business day - Vendor direct ship products are processed directly with vendors with vendor leadtime.

Express Shipping

Price Match Guarantee

Your payment is secure

Your privacy and security are our top priority. Our advanced encrypted payment system protects your information during every transaction.

Get expert help

Our team of experienced professionals is always ready to help.

Overview
Shipping
Warranty
FAQ's

Product Details

S7PH | D74H-7U

Advanced Performance for the Most Extreme AI-HPC Workloads

Powered by 5th/4th Gen Intel® Xeon® Scalable Processor
18x SFF All-NVMe drive bays for GPUDirect storage and boot drive
10x OCP NIC 3.0 TSFF for GPUDirect RDMA
8x Hopper H200/H100 SXM5 GPU modules with HGX baseboard

Processor Type 4th/5th Gen Intel® Xeon® Scalable Processors

Max. TDP Support 350W

Number of Processors 2 Processors

Internal Interconnect 16 GT/s

L3 Cache Up to 112.5MB Form Factor 7U

Dimensions W x H x D (inch) 17.63" x 12.12" x 34.88" W x H x D (mm) 447.8 x 307.85 x 886mm Chipset Intel® C741

Storage Default Configuration (18) 2.5" hot-plug NVMe SSD drives

Memory Total Slots 32

Capacity Up to 8TB

Memory Type 4800 MHz DDR5 RDIMM

Expansion Slot Default Configuration (2) PCIe 5.0 x16 OCP 3.0 SFF slots (10) PCIe 5.0 x16 OCP 3.0 TSFF slots

Network Controller

LOM Dedicated (1) GbE management port

Optional NIC Front I/O (1) Power button/LED (1) Reset button (1) ID button/LED (1) System status LED (2) USB 3.0 (1) VGA port Power Supply 3+3 high efficiency redundant hot-plug 4000W 80 Plus Titanium PSUs Onboard Storage (2) 2280 M.2 Fan (8) hot-swap 9276 dual rotor fans (N+1 redundant) Video Integrated AST2600 Maximum display resolution is up to 1920x1080p 32bpp@60Hz System Management Redfish v1.11 IPMI v2.0 Compliant, on board "KVM over IP" support Rear I/O (1) Power button (1) ID button/LED (1) USB 3.0 port (1) Mini Display port (1) COM Port (micro USB type-B) (1) RJ45 dedicated mgmt port Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 20% to 85%RH Non-operating relative humidity: 10% to 95%RH TPM TPM 2.0 SPI module (optional)
