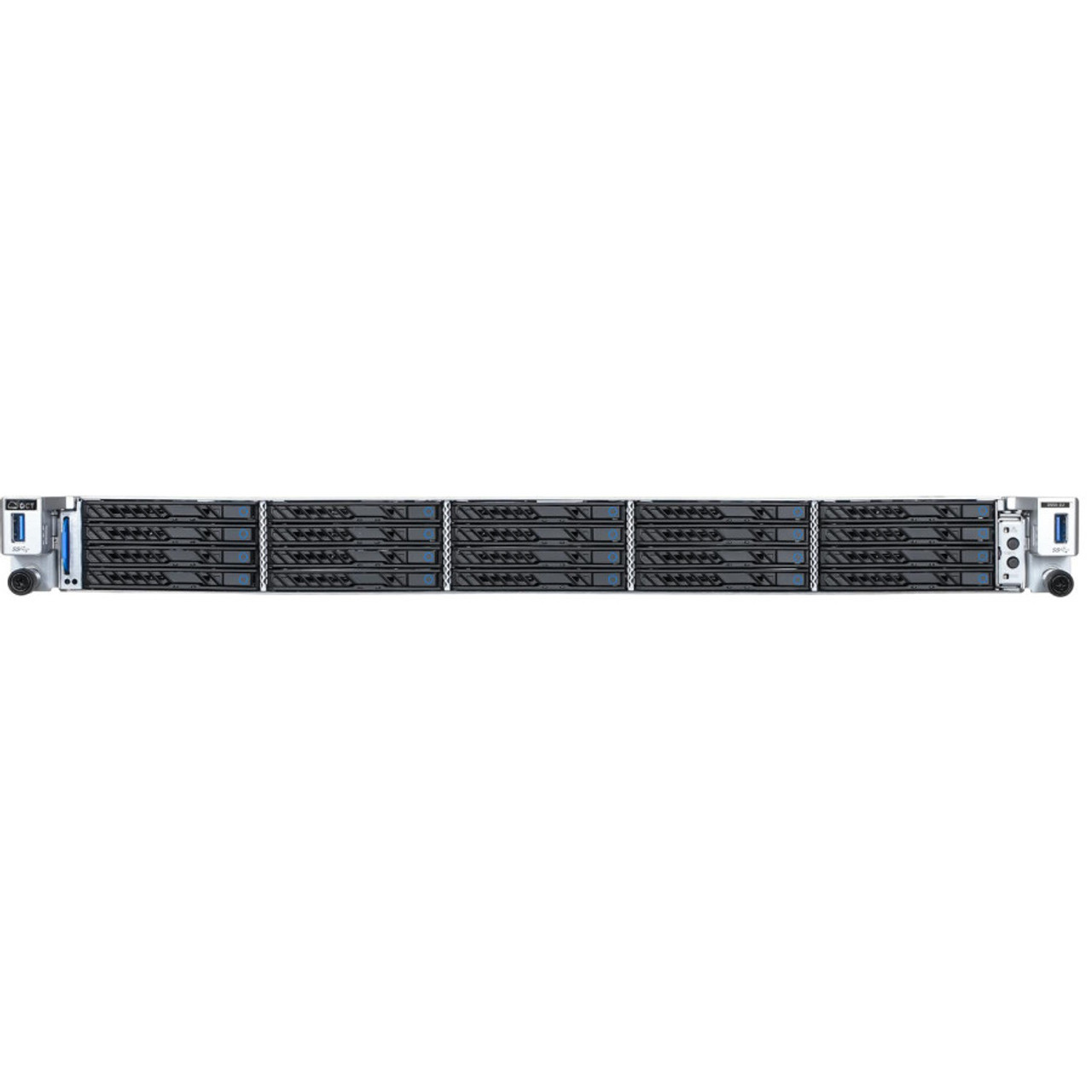

Product Description
S7X | D55X-1U
- (2) Intel Xeon 6 CPU
- (32) DDR5 RDIMM up to 6,400 MHz, (16) MRDIMM up to 8,000 MHz
- Multiple storage options include 2.5”, E1.S, E3.S 1T, and the new CXL E3.S SKU
- Flexible network options with (2) OCP 3.0 SFF slots
- Up to (3) PCIe 5.0 x16 expansion in a 1U chassis for diverse device support
- Wide range of MCRPs, CRPs PSU support from 800W to 2700W
- (7+1) 4056 fan for advanced air cooling
- DC-MHS (M-FLW) as reference
- Inhouse OpenBMC for comprehensive management
- Liquid Cooling available
- Optimized serviceability with tool-less, hot-plug design
- NEBs compliance for Telco/5G deployment
Processor
Processor Family
Intel® Xeon® 6 processors
Processor Type
Intel® Xeon® 6 processors
Max. TDP Support
350W
Number of Processors
2 Processors
Form Factor
1U
Dimensions
W x H x D (inch)
17.6" x 1.7" x 30.7"
W x H x D (mm)
447 x 43.2 x 780
Storage
SKU - #1
(12) 2.5" hot-plug NVMe/SATA/SAS SSD
SKU - #2
(16) E1.S hot-plug NVMe SSD
SKU - #3
(20) E3.S 1T hot-plug NVMe drives
SKU - #4
(4) E3.S 1T hot-plug NVMe drives + (8) E3.S 2T CXL devices
Memory
Total Slots
32
Expansion Slot
SKU - #1
(2) PCIe Gen5 x16 FHHL
(2) PCIe Gen5 x16 OCP 3.0 SFF
(1) DC-SCM board
SKU - #2
(3) PCIe Gen5 x16 HHHL
(2) PCIe Gen5 x16 OCP 3.0 SFF
(1) DC-SCM board
Front I/O
Power/ID/Reset Buttons/Status LEDs/USB ports
Power Supply
1+1 High efficiency redundant hot-plug 1600W/2000W/2700W 80 Plus Titanium
Fan
(8) hot-plug system fans
Video
Integrated AST2600
Maximum display resolution is up to 1920x1080p 32bpp@60Hz
Rear I/O
ID/ PFR/PWR LED
PWR Button
(1) USB ports
(1) Mini display port
(1) COM Port (micro USB type-B)
(1) RJ45 port
Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
TPM
Yes
(option)
OCP Compliance
OCP Compliant
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Manufacturer Part Number S7X | D55X-1U
OCP Compliance OCP Compliant
Note Images may not be exact, please check specifications.
