Raritan 1Ph, 208V Ac, 30A (24A Rated); 24 Outlets: 20X C13, 4X C19; Plug: Nema L6-30P (Top-Top Feed), 5.0Kva; Outlet Metered, /W Rcm, Zero U Vertical Pdu, Securelock Ready, High Resolution Color Display - PX3-4497U-M5K2

Product Description

Raritan 1Ph, 208V Ac, 30A (24A Rated); 24 Outlets: 20X C13, 4X C19; Plug: Nema L6-30P (Top-Top Feed), 5.0Kva; Outlet Metered, /W Rcm, Zero U Vertical Pdu, Securelock Ready, High Resolution Color Display With Field Replaceable Controller, Ethernet, Serial, 2X Usb- - PX3-4497U-M5K2

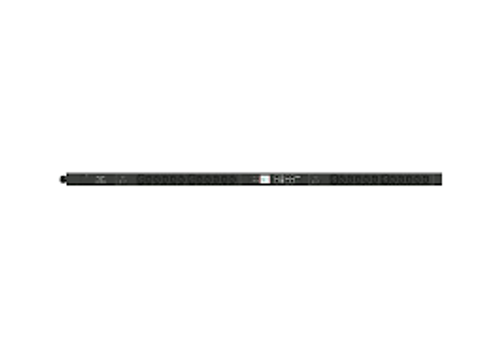

The Raritan PX3-4497U-M5K2 is a new, high-resolution color display, vertical-mount PDU ideal for space-constrained data centers. This 0U PDU maximizes valuable rack space while providing reliable power distribution. With a 208V AC input and a 30A (24A rated) capacity, this unit delivers 5.0kVA of power through its versatile outlet configuration: 20 C13 and 4 C19 outlets. This allows you to power a variety of devices, from servers and networking equipment to high-powered appliances.

This metered PDU provides real-time power monitoring at the outlet level, allowing for accurate tracking and optimized energy management. The integrated outlet metering with Remote Current Monitoring (RCM) offers granular control and insights into power consumption. SecureLock-ready capabilities enhance physical security, preventing accidental disconnections and ensuring uptime. The Nema L6-30P (top-top feed) plug simplifies installation and cable management.

Key Features:

• Output: 208V AC, 30A (24A Rated), 5.0kVA
• Outlets: 20 x C13, 4 x C19
• Plug: Nema L6-30P (Top-Top Feed)
• Metering: Outlet Metered with RCM
• Mounting: Zero U Vertical
• Security: SecureLock Ready
• Display: High-Resolution Color
• Weight: 16 lbs
