Raritan 3Ph, 208V Ac, 30A (24A/Ph Rated); 20Xc13, 6Xc19, 6Xnema 5-20R; Nema L14-30P (Wye Top-Top ) 8.6Kva; Unit Metered, 0U, Securelock Ready, High Resolution Color Display W/ Field Replaceable Controller, Ethernet - PX3-1093U

Product Description

Raritan 3Ph, 208V Ac, 30A (24A/Ph Rated); 20Xc13, 6Xc19, 6Xnema 5-20R; Nema L14-30P (Wye Top-Top ) 8.6Kva; Unit Metered, 0U, Securelock Ready, High Resolution Color Display W/ Field Replaceable Controller, Ethernet, Serial, 2Xusb-A,Usb-B&Sensor Connection - PX3-1093U

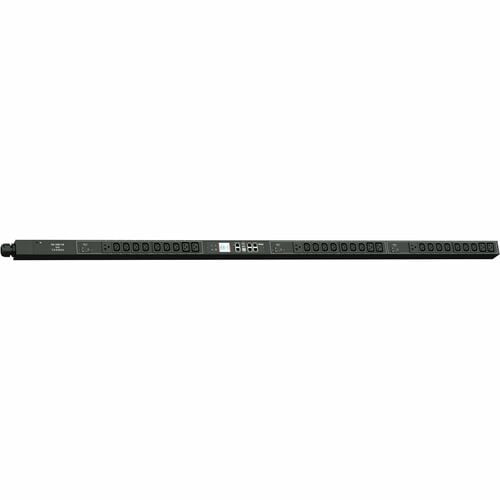

The Raritan PX3-1093U is a professional-grade, 0U metered power distribution unit (PDU) designed for high-density data center deployments. This 3-phase PDU operates at 208V AC and provides 30A (24A/phase rated) output, delivering 8.6kVA of power. It features a versatile outlet configuration including 20 C13, 6 C19, and 6 NEMA 5-20R receptacles, ensuring compatibility with a wide range of IT equipment. The input connection is a NEMA L14-30P (Wye Top-Top) connector.

This unit is equipped with a high-resolution color display offering real-time power monitoring data and advanced control functionalities. The field-replaceable controller simplifies maintenance and enhances serviceability. The PX3-1093U is also SecureLock ready for enhanced physical security. Ethernet connectivity allows for remote management and integration with network monitoring systems. This new PDU is ideal for managing power in demanding data center environments.

Key Features:

• Output: 3-Phase, 208V AC, 30A (24A/Phase)
• Outlets: 20 x C13, 6 x C19, 6 x NEMA 5-20R
• Input: NEMA L14-30P
• Metered: Yes
• Form Factor: 0U
• Weight: 20.28 lbs
• Condition: New
