Raritan 3PH, 415V AC, 30A (24A/PH rated); 42x C13, 6x C19; NEMA L22-30P (Wye Top-top), 17.3kVA; Unit Metered, 0U PDU, SecureLock ready, hi-res color display w/ field replaceable controller, Ethernet - PX3-1901U-N1K2

Product Description

Raritan 3PH, 415V AC, 30A (24A/PH rated); 42x C13, 6x C19; NEMA L22-30P (Wye Top-top), 17.3kVA; Unit Metered, 0U PDU, SecureLock ready, hi-res color display w/ field replaceable controller, Ethernet, serial, 2x USB-A, USB-B & sensor connections - BLUE

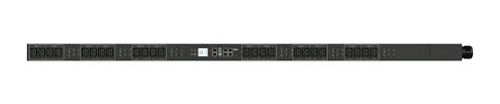

Introducing the Raritan PX3-1901U-N1K2, a new, 0U metered PDU designed for high-power density applications. This 3-phase unit delivers 415V AC at 30A (24A per phase), providing 17.3kVA of power, and features a versatile outlet configuration with 42x C13 and 6x C19 receptacles. It connects via a NEMA L22-30P (Wye Top-top) plug.

This Raritan PDU boasts a high-resolution color display and a field-replaceable controller for easy maintenance and management. Connectivity options are extensive, including Ethernet, serial, two USB-A ports, a USB-B port, and sensor connections. The unit is also SecureLock ready, enhancing the physical security of your connected devices.

Key Features:

• High Power Output: 17.3kVA, 3PH, 415V AC, 30A (24A/PH)
• Versatile Outlets: 42x C13, 6x C19
• Zero-U Design: Space-saving installation
• Advanced Management: Metered, hi-res color display, field replaceable controller
• Connectivity: Ethernet, Serial, 2x USB-A, USB-B, Sensor ports
• SecureLock Ready: Enhanced physical security

Product Specifications:

• Condition: New
• Weight: 22.5 lbs
