Product Description

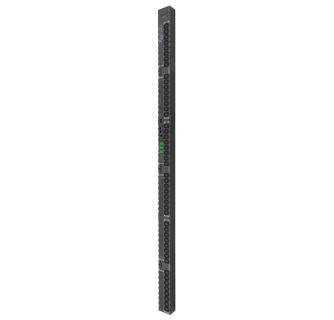

ServerTech PRO2 48-Outlet PDU - Switched - NEMA L21-20P - 48 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical/Toolless - Cabinet-mountable
The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billinggrade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master"PDU can be connected to as many as three (with optional module) PRO2 Switched "Link"PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Package Contents
- PRO2 48-Outlet PDU
- Mounting Hardware
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number STV-4522L
Limited Warranty 2 Year
Output Voltage 208 V AC
Input Current 20 A
Manufacturer Server Technology, Inc
Product Name PRO2 48-Outlet PDU
Mount Type Cabinet-mountable
Product Line PRO2
Rack Height 0U
Brand Name Server Technology
Plug/Connector Type NEMA L21-20P
Country of Origin United States
Height 69"
Width 3.3"
Depth 2.3"
Phase Three Phase
Receptacle Type IEC 60320 C13
Network (RJ-45) Yes
PDU Type Switched
Mounting Orientation Vertical/Toolless
Power Rating (Watt) 5700 W
Receptacle Detail 48 x IEC 60320 C13
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
