Product Description

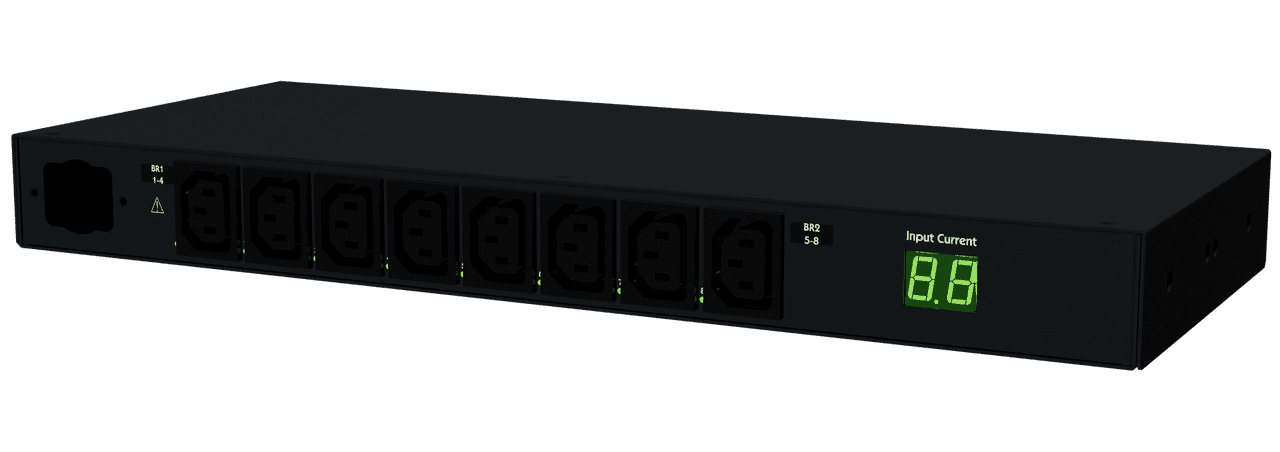

Server Technology Switched POPS PDU - 3.3kW, C2WG08HC-0ABA2DAC - Switched - IEC 60320 C20 - 8 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 1U - Rack-mountable
The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
Features
- PDU provides active metering enabling energy optimization and circuit protection
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
- Three Phase phase PDU provides dependable power output with maximum efficiency
- IEC 60320 C20 plug/connector type for efficient connectivity and feasible power output
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- 230 V AC input voltage for better reliance and maximum dependability
- 230 V AC output voltage for better reliance and maximum usability
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number C2WG08HC-0ABA2DAC
Limited Warranty 2 Year
Output Voltage 230 V AC
Input Current 16 A
Manufacturer Server Technology, Inc
Product Model C2WG08HC-0ABA2DAC
Product Name Switched POPS PDU - 3.3kW, C2WG08HC-0ABA2DAC
Mount Type Rack-mountable
Protection Type Fuse
Protection Type Double Pole
Product Series PRO1
Rack Height 1U
Brand Name Server Technology
Plug/Connector Type IEC 60320 C20
Country of Origin United States
Height 1.8"
Width 17.2"
Depth 7"
Phase Three Phase
Receptacle Type IEC 60320 C13
Environmentally Friendly Yes
Environmental Certification RoHS
Environmental Certification WEEE
Network (RJ-45) Yes
PDU Type Switched
Power Rating (Watt) 3300 W
Receptacle Detail 8 x IEC 60320 C13
Note Images may not be exact, please check specifications.
