Product Description

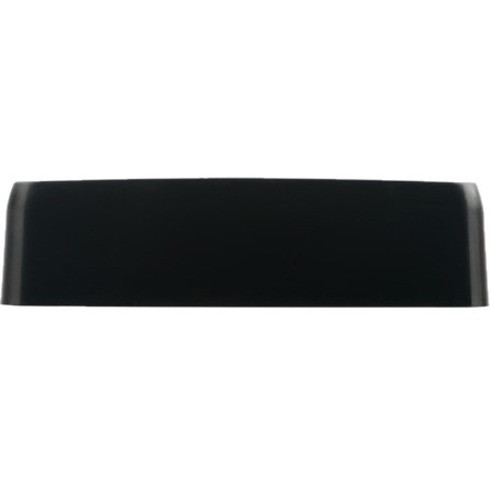

Sierra Wireless AirLink LX60 Wi-Fi 5 IEEE 802.11ac Cellular, Ethernet Modem/Wireless Router - 4G - LTE 2100, LTE 1800, LTE 2600, LTE 900, LTE 700, LTE 800, WCDMA 2100, WCDMA 900, GSM 900, GSM 1800 - LTE, HSPA+, GPRS - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 2 x Network Port - USB - Gigabit Ethernet - VPN Supported - DIN Rail Mountable
Dual Ethernet LTE Router, for Primary or Backup ConnectivityThe AirLink® LX60 is designed for Commercial and Enterprise LTE network connectivity. Dual Gigabit Ethernet and serial ports make it ideal to connect machines and provide primary or backup network connectivity.
LX60 provides purpose-built, secure, reliable, managed Cellular LTE networking in Building Automation, Digital Signage, Taxis, ATMs, Kiosks and Point-of-Sale terminals.
As part of the AirLink Essential series, the LX60 is designed to meet the environmental and performance requirements of these applications, while delivering superior reliability and uninterrupted operation in fixed, indoor and protected outdoor environments.
LX60 is available with optional Wi-Fi + GNSS and rated for shock, vibration and vehicle power supplies. It offers Dual Band 802.11ac Wi-Fi and dedicated 48 Channel GNSS, meeting the demands of Commercial fleets and Taxis requiring connectivity.
The LX60 comes in LTE Cat 4 regional variants, and a Global LPWA (Low-Power Wide Area) variant offering LTE-M/NB-IoT for applications where low data rates, enhanced cellular coverage and global deployment is required.
Features
- Out-of-Box LTE Connectivity: Add LTE connectivity to your existing equipment
- Enables edge processing with optional secure linux-based embedded application framework (ALEOS Application Framework)
- Dual Ethernet, RS232 & RS485 and multiple I/O to connect to a wide variety of field equipment
- LTE and LTE-M/NB-IoT variants for global deployments, and extended coverage and depth (in-building and below ground) to reach challenging locations
- Integrated 7-36VDC industrial grade power supply and -20C to +65C temperature range to provide superior reliability without need for additional power conditioning or adapters
- ALMS Cloud or AMM On-Premises Management single-pane device management across all devices
- GNSS for fleets
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Package Contents
- AirLink LX60 Dual Ethernet LTE Router
- DC Power Cable
- Quick Start Guide
Product Type Modem/Wireless Router
Manufacturer Part Number 1104047
Limited Warranty 3 Year
VPN Supported Yes
Weight (Approximate) 8.82 oz
Network Band Dual Band
Form Factor DIN Rail Mountable
Manufacturer Sierra Wireless
Product Model LX60
Product Name AirLink LX60 Dual Ethernet LTE Router
Product Line AirLink
Brand Name Sierra Wireless
Height 1.7"
Width 5.7"
Depth 3.9"
Environmentally Friendly Yes
Environmental Certification RoHS 2
Environmental Certification REACH
Environmental Certification WEEE
Broadband Transmission Technology Cellular
Broadband Transmission Technology Ethernet
Wireless LAN Standard IEEE 802.11ac
ISM Band Yes
UNII Band Yes
ISM Maximum Frequency 2.40 GHz
UNII Maximum Frequency 5 GHz
Ethernet Technology Gigabit Ethernet
USB Yes
Number of Network (RJ-45) Ports 2
Cellular Data Connectivity Technology LTE
Cellular Data Connectivity Technology HSPA+
Cellular Data Connectivity Technology GPRS
Cellular Generation 4G
Cellular Network Supported LTE 2100
Cellular Network Supported LTE 1800
Cellular Network Supported LTE 2600
Cellular Network Supported LTE 900
Cellular Network Supported LTE 700
Cellular Network Supported LTE 800
Cellular Network Supported WCDMA 2100
Cellular Network Supported WCDMA 900
Cellular Network Supported GSM 900
Cellular Network Supported GSM 1800
Wi-Fi Generation Wi-Fi 5
Note Images may not be exact, please check specifications.
