Product Description
SIIG 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - HDMI 1x8 Extender/Splitter, Extends 4K@60Hz HDMI signal to 8 displays up to 230ft (70m) over Cat6/7 cable, HDMI Loopout, IR Control, ARC, RS-232, Zero Latency, Metal Housing, Wall mount design
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, eight HDMI video output ports, sixteen RJ45 network ports, nine 3.5mm IR emitter ports, nine 3.5mm IR receiver ports, eight S/PDIF ports, one RS-232 terminal block, one DIP switch, nine reset buttons, eight audio slide switches, one DC power jack (12V/2A) for TX, eight DC power jacks (5V/2A) for RXs
Applications
- Meeting room
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Library
- Show room
Features
- 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 8 displays
- Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
- HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out for additional local display connections and extender 8 receivers for HDTV or Projector via Cat6/7 cable
- EDID Management - Support EDID management capability to controls the resolution output to the display(s)
- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
- RS-232 Control - Support RS-232 command control in the Transmitter
- Protection - Lightning Protection, Surge Protection, ESD Protection
- High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field

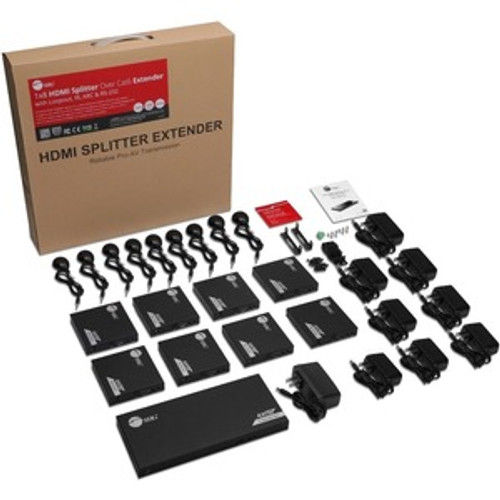

Package Contents
- 1 x Transmitter
- 8 x Receiver
- 9 x Power Adapter
- 1 x IR Blaster extension cable
- 8 x IR Receiver extension cable
- Terminal block
- Mounting kit
- User Manual
Product Type Video Extender Transmitter/Receiver
MPN CE-H27B11-S1
Limited Warranty 2 Year
Connectivity Technology Wired
Manufacturer SIIG, Inc
Product Name 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232
Brand Name SIIG
Country of Origin China
Graphics Modes 4K
Environmentally Friendly Yes
Environmental Certification RoHS
Maximum Video Resolution 3840 x 2160
Twisted Pair Cable Standard Category 7
Maximum Operating Distance 229.66 ft
Number of Network (RJ-45) Ports 16
Network (RJ-45) Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 9
HDMI In Yes
HDMI Out Yes
Media Type Supported Twisted Pair
Number of Output Devices Supported 8
Number of Input Devices Supported 1
Transmitter Height 0.91"
Transmitter Width 10.39"
Transmitter Depth 4.72"
Receiver Height 0.79"
Receiver Width 4.15"
Receiver Depth 4.04"
Transmitter Weight (Approximate) 1.61 lb
Receiver Weight (Approximate) 8.64 oz
Product Color Black
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
