Product Description

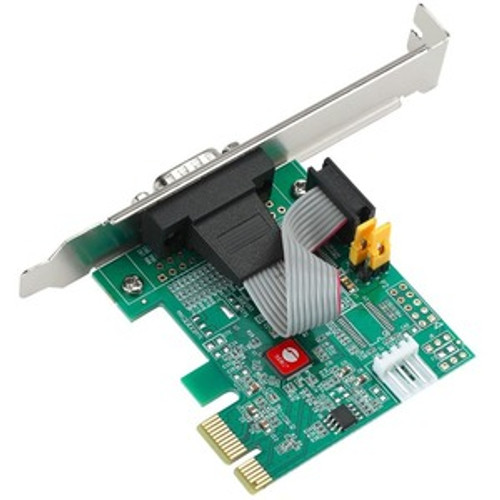

SIIG DP Cyber RS-232 1S PCIe Card - 250Kbps - ASIX AX99100 Chipset - PCI Express Base Specification 2.0 Compliant
Add one 16650 RS232 port to your PCI Express system
Features- Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
- One 16C650 UART serial port supports data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- Supports on chip 256-byte FIFO buffers in transmit and receive path
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2

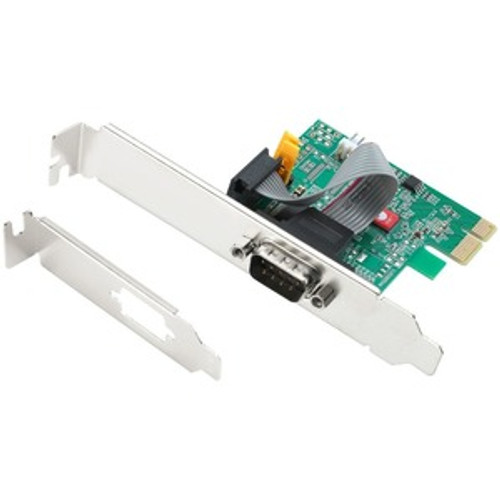

- Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
- Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
Features
- Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
- One 16C650 UART serial port supports data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- Supports on chip 256-byte FIFO buffers in transmit and receive path
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field

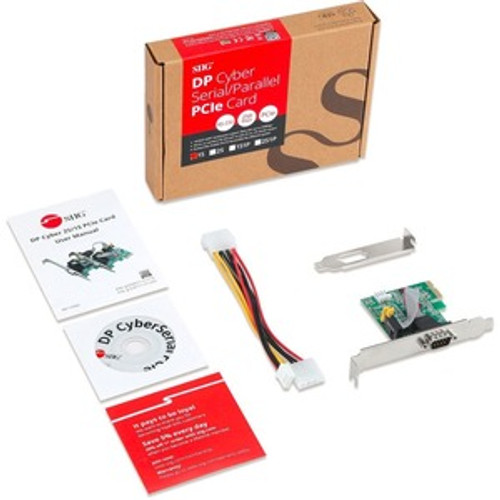

Package Contents
- DP Cyber 1S PCIe Card
- Full Height Bracket
- 1 x Low Profile Bracket
- 1 x Y-Split Power Cable
- 2 x Voltage Jumper
- Software CD
- User Manual
Host Interface PCI Express 2.0 x1
Product Type Serial Adapter
MPN JJ-E20611-S1
Platform Supported PC
Limited Warranty 2 Year
Weight (Approximate) 1.60 oz
Form Factor Plug-in Card
Manufacturer SIIG, Inc
Product Name DP Cyber 1S PCIe Card
Brand Name SIIG
Country of Origin China
Height 0.7"
Width 2.9"
Depth 4.7"
Environmentally Friendly Yes
Environmental Certification RoHS
Card Height Full-height/Low-profile
Number of Serial Ports (External) 1
Note Images may not be exact, please check specifications.
