Product Description

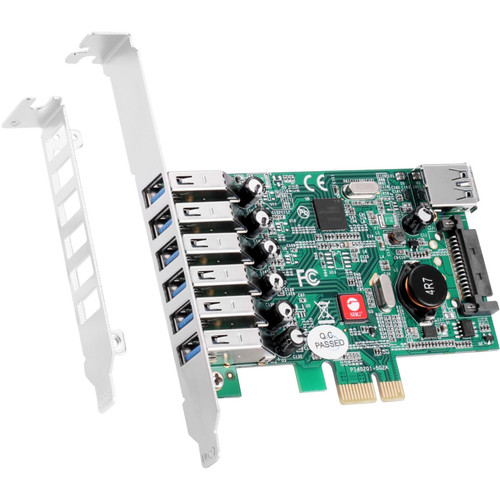

SIIG DP USB 3.0 7-Port PCIe i/e - PCI Express 2.0 x1 - Plug-in Card - 7 USB Port(s) - 1 SATA Port(s) - 7 USB 3.0 Port(s) - UASP Support - PC ADDS 6 EXTERNAL/1 INTERNAL USB 3.0
Adds six external and one internal SuperSpeed USB 3.0 5Gbps Type-A ports to your PCIe enabled desktop computer
- Adds seven SuperSpeed USB 3.0 5Gbps Type-A ports, 6 external and one internal, to your desktop system
- Industry recognized high performance Renesas uPD720201/uPD720210 chipset
- Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
- Complies with PCIe 2.0 standard
- Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
- Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
- Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Package Contents
- DP USB 3.0 7-Port PCIe i/e
- Low Profile Bracket
- Driver CD
- Quick Start Guide
Host Interface PCI Express 2.0 x1
Product Type USB Adapter
Manufacturer Part Number JU-P70011-S1
Platform Supported PC
Limited Warranty 2 Year
Weight (Approximate) 2.40 oz
Form Factor Plug-in Card
Length 4.4"
Manufacturer SIIG, Inc
Product Name DP USB 3.0 7-Port PCIe i/e
Brand Name SIIG
Country of Origin China
Height 4.7"
Depth 0.9"
Environmentally Friendly Yes
Environmental Certification RoHS
Environmental Certification WEEE
Total Number of USB Ports 7
Number of USB 3.0 Ports 7
Number of SATA Ports 1
UASP Support Yes
Product Color Green
Note Images may not be exact, please check specifications.
