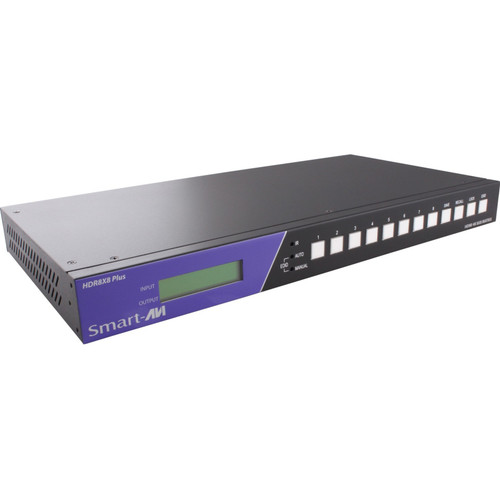

Smartavi 4K Resolution 8x8 HDMI Router, Includes: [HDR-8x8-Plus, RMHDR8X8, & (12VDC3A & CCPWR06) -HDR-8X8-Plus-S

Product Description

SMARTAVI 4K Resolution 8x8 HDMI Router, Includes: [HDR-8x8-Plus, RMHDR8X8, & (12VDC3A & CCPWR06) -HDR-8X8-Plus-S

With the HDR-8×8-Plus, users can independently route eight video inputs to eight displays using the latest in 4K (3840×2160 @30Hz) HDMI video technology. The HDR-8×8-Plus has eight outputs that offer the flexibility to distribute HD audio and video signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMIs to a single display. Controlling the matrix switch is simple with the front-panel buttons and the RS-232 port. Even use the TCP/ IP controls to manage the unit from a web browser. The perfect multi-switch solution for your home theatre system, the HDR- 8×8-Plus is compatible with computers, live HD TV feeds, Blu-ray players, gaming consoles, video cameras and more.

FEATURES

• 4K Input/Output (3840×2160 @30Hz)
• 8×8 Non-Blocking, HDMI Matrix Switch
• Distribute any eight inputs to any eight HDMI output displays
• EDID Learning Mode
• Supports RS-232 Control
• HDCP and HDMI 1.4 Compliant
• SmartAVI PC Software
• Integrated TCP/IP Controller

Applications

• Wall Displays
• Digital Media
• Airports
• Dealer Rooms
• Control Rooms
• Audio/Visual Presentations
• Shopping Centers
• Security
