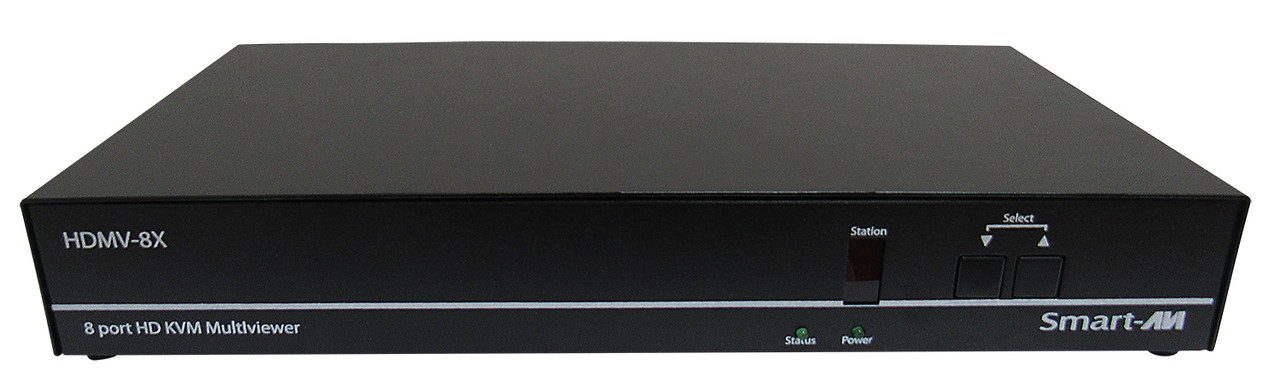

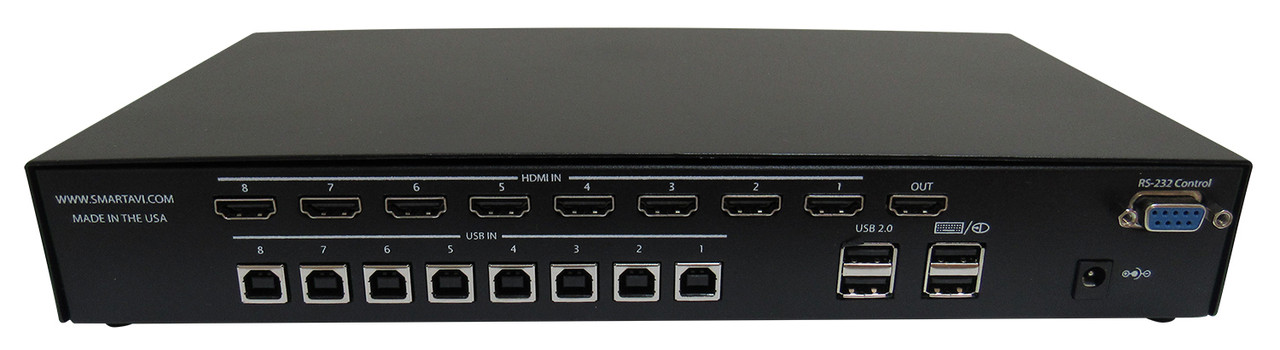

Smartavi 8-Port HDMI, USB Real-Time Multiviewer and KVM switch. Includes: [SM-HDMV-8X (Power Cord)] -SM-HDMV-8XS

Product Description

SMARTAVI 8-Port HDMI, USB Real-Time Multiviewer and KVM switch. Includes: [SM-HDMV-8X (Power Cord)] -SM-HDMV-8XS

The HDMV-8X is a member of SmartAVI’s HD Multiviewer series of products. It allows users to view up to eight different HD digital video sources on one display device simultaneously. HDMV-8X also supports USB keyboard and mouse functionality, allowing the user to access all eight displays from one KVM set.
Connections to video sources are managed via HDMI or DVI adapters, with advanced viewing options such as dual-mode, quadmode, full-screen mode, and others.
Use this device to simplify the management of multiple video sources by accessing and controlling them from
a single set of controls on one display.

Features

• View up to eight sources on a single monitor at the press of a button
• Supports USB keyboard and mouse
• Display each computer with clean and crisp high-resolution video
• Supports DVI-D input resolutions up to 1920 x 1200
• Supports up to 4K HDMI output (3640 x 2160)
• Control any one computer or device while monitoring seven others
• Delivers uncompressed digital video with zero signal loss
• HDCP and HDMI 1.4 compliant
• Supports EDID for total control of compliant displays
• Outputs HDMI up to 20 ft
• Change views by pressing the tactile switches, entering keyboard hotkeys, or commands sent through RS-232
• Quad-mode splits the screen to show four sources on one screen
• Dual-mode splits the screen to show two sources on one screen

Application

• Corporate or Educational Presentations
• Financial (Remote Servers/User Control)
• Call Centers for Technical Support
• Industrial (Long-Range Workstation Isolation)
• Airport Installations (Air Traffic Control/Passenger Information)
• Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
• Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)
