Product Description

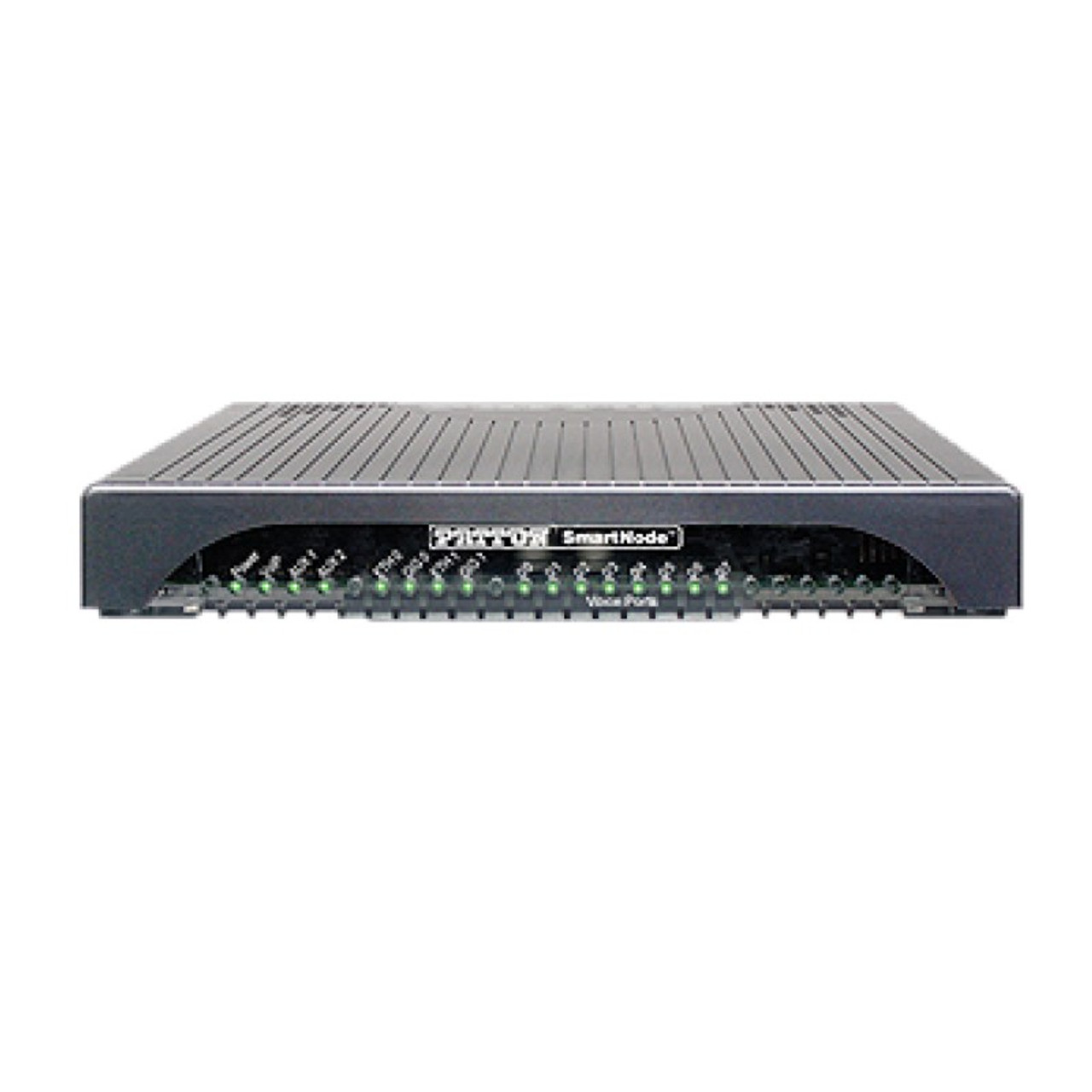

The Smart Node 5540, is a cost effective eSBC with integrated Broadband access and up to 8 FXS/FXO ports supporting a high level of VoIP and network security. It is capable of doing up to 200 SIP to SIP calls*** whereof max. 4 can be transcoded**. Built-in QoS functionalities and support of G.722 high definition codec ensure excellent VoIP call quality.
SmartNode eSBC, 2 FXO, 2 VoIP Calls, or 4 SIP Sessions (SIP b2b UA) upgradeable (max. 200), 1 Transcoded SIP Session (upgradeable max. 4)
Overview
The SN5540 is the perfect choice for All-IP applications where legacy, non-replaceable analog equipment has to be integrated into a UCC environment. For pure All-IP networks, the Smart Node acts as a service termination point toward the enterprise with an integrated Broadband access termination for G.SHDSL, VDSL, ADSL or Fiber SFP.
With the separate config domain feature, the SN5540 will be the service demarcation point for SIP Trunk service providers, where the local administrator can be limited to only modify configuration settings facing the LAN IP PBX.
The SN5540 acts as VoIP Gateway, eSBC, Access Router and QoS CPE all in one device.
It can also undertake network assessment and monitoring at the customer premise by using Patton Cloud network monitoring
to prevent, reduce and resolve network and voice quality problems.
Applications
Network Integration
The SN5540 is the perfect choice for All-IP applications where legacy, non-replaceable analog equipment has to be integrated into a UCC environment. For pure All-IP networks, the Smart Node acts as a service termination point toward the enterprise with an integrated Broadband access termination for G.SHDSL, VDSL, ADSL or Fiber SFP. With the separate config domain feature, the SN5540 will be the service demarcation point for SIP Trunk service providers, where the local administrator can be limited to only modify configuration settings facing the LAN IP PBX.
The SN5540 acts as VoIP Gateway, eSBC, Access Router and QoS CPE all in one device.
It can also undertake network assessment and monitoring at the customer premise by using Patton Cloud network monitoring
to prevent, reduce and resolve network and voice quality problems.
Applications
Network Integration
Thanks to the built-in FXS ports, it resolves technology evolution related problems, either by integrating old, non-replaceable telephones into a UCC environment, or for good old fax devices to be migrated to the next-generation network infrastructure. The built-in FXO ports, available on certain versions, offer failover for calls (mainly emergency calls) that are connected after broadband access fails.
Features
- WAN Access—Fiber SFP, G.SHDSL-EFM/ATM, Gigabit Ethernet or VDSL/ADSL WAN interface.
- SIP Registrar - License is included in ALL eSBC products.
- Up to 8 Analog interfaces (FXS/FXO)—2, 4 or 8 analog ports. Either FXS or FXO or a combo configuration. Up to 8 G.722/G.711 or T.38 calls simultaneously. Leased line 2W/4W optional.
- Full Telephony Features—Session Router allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.Full SIP-ISDN AOC support.
- Outstanding Interoperability—Interoperable for data, voice and T.38 fax with leading, SIP service providers, soft-switch vendors, major IP-PBX systems and various DSLAMs.
- Complete Access Routing—Two 10/100/1000 Ethernet ports with auto-MDI-X. Ethernet Layer 2 switching and bridging. Access router with NAT, Policy Based Routing, Stateful Firewall, PPPoE, DHCP, DynDNS.
- Easy Management & Provisioning—Web-based management, WEB Wizard, SNMPv3, command line interface, secure, zero-touch provisioning separate config. domain support, TR-069.
- Full VoIP protocol support—SIPv2, SIPv2 over TLS, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
- Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and major IP-PBX manufacturers.
- Why SmartNode™?
- Patton Quality
- Made in the USA
- Unrivaled Customer Support
- FREE Support and Upgrades
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN SN5541/8JS8VAVA/EUI
NOTE Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
