  • PEX867WAC22
  • StarTech PCI Express AC1200 Dual Band Wireless-AC Network Adapter
  • StarTech PCI Express AC1200 Dual Band Wireless-AC Network Adapter
  • StarTech PCI Express AC1200 Dual Band Wireless-AC Network Adapter
  • StarTech PCI Express AC1200 Dual Band Wireless-AC Network Adapter

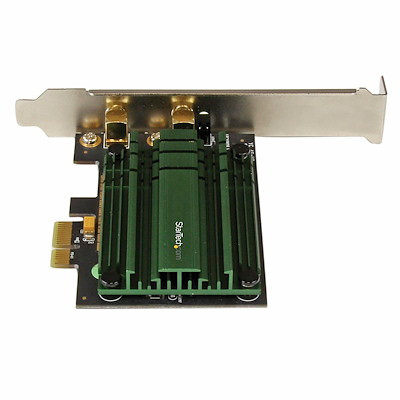

    • Startech PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - PEX867WAC22

    StarTech

    $101.06
    Write a Review
    SKU:
    HS-PEX867WAC22
    UPC:
    65030857512
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    Package Contents:
    • PCI Express Wireless AC Card
    • 2 x 5 dBi Dual Band Antennas
    • 1 x Antenna Stand
    • 1 x Low Profile Bracket
    • 1 x Driver CD
    • 1 x Instruction Manual
    Host Interface:
    PCI Express x1
    Product Type:
    Wi-Fi Adapter
    Device Supported:
    Desktop Computer
    Manufacturer Part Number:
    PEX867WAC22
    Packaged Quantity:
    1
    Limited Warranty:
    2 Year
    Weight (Approximate):
    2.90 oz
    Form Factor:
    Internal
    Manufacturer:
    StarTech
    Product Name:
    PCI Express Wireless AC Card
    Wireless Transmission Speed:
    1.17 Gbit/s
    Brand Name:
    StarTech
    Country of Origin:
    Taiwan
    Height:
    4.7"
    Width:
    0.7"
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Environmental Certification:
    WEEE
    Environmental Certification:
    REACH
    Wireless LAN Standard:
    IEEE 802.11ac
    ISM Band:
    Yes
    UNII Band:
    Yes
    ISM Maximum Frequency:
    2.48 GHz
    UNII Maximum Frequency:
    5.85 GHz
    TAA Compliant:
    Yes
    Wi-Fi Generation:
    Wi-Fi 5
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us
    Adding to cart… category.add_cart_announcement

    Product Description

    Startech PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4 / 5GHz frequencies and up to 867Mbps - PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - Wireless-AC Card

    • Wireless AC1200 compatible (867 Mbps + 300 Mbps)
    • Compliant with 802.11 a/b/g/n/ac standards
    • Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
    • PCI Express host interface
    • 2 Transmitter/2 Receiver (2x2:2) antenna configuration
    • Included magnetic antenna stand for side-mounting on your PC case
    • Supports WEP (64-128-bit), WPA and WPA2 wireless security
    • Supports WMM Quality of Service
    • Supports Soft AP mode
    • Configured with standard profile bracket, low profile/half-height bracket included

    Specifications

    Warranty Information
    Warranty
    2 Years
    Connector(s)
    Connector Type(s)
    1 - PCI Express x1

    1 - Wireless AC (IEEE 802.11ac)
    External Ports
    2 - RP-SMA (Coax, Reverse Polarity SubMiniature A)
    Environmental
    Operating Temperature
    0°C to 60°C (32°F to 140°F)
    Storage Temperature
    0°C to 70°C (32°F to 158°F)
    Humidity
    10~90% RH
    Hardware
    Interface
    Wireless Ethernet
    Bus Type
    PCI Express
    Card Type
    Standard Profile (LP bracket incl.)
    Antenna Configuration
    2x2:2 (TxR:S)
    Industry Standards
    IEEE 802.11ac Draft 2.0, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
    Chipset ID
    Realtek - RTL8812AE
    Indicators
    LED Indicators
    1 - Link / Act
    Packaging Information
    Package Height
    2.3 in [59 mm]
    Package Length
    8.3 in [21 cm]
    Package Width
    6.1 in [15.6 cm]
    Shipping (Package) Weight
    13.7 oz [388 g]
    Performance
    Maximum Data Transfer Rate
    867 Mbps (5 GHz)
    300 Mbps (2.4 GHz)
    Full Duplex Support
    Yes
    Frequency Range
    2.400 ~ 2.484GHz
    5.180 ~ 5.850GHz
    Security Features
    WEP Data Encryption

    WPA and WPA2-PSK Data Encryption

    TKIP/AES

    WPA and WPA2 Enterprise Data Encryption
    Physical Characteristics
    Color
    Green
    Material
    Steel
    Product Length
    3.4 in [87 mm]
    Product Width
    0.7 in [18 mm]
    Product Height
    4.7 in [12 cm]
    Weight of Product
    2.9 oz [82 g]
    Software
    OS Compatibility
    Windows® XP, 7, 8, 8.1, 10, 11
    Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
    Special Notes / Requirements
    System and Cable Requirements
    Available PCI Express x1 (or higher) slot
    What's in the Box
    Included in Package
    1 - PCI Express Wireless AC Card

    2 - 5 dBi Dual Band Antennas

    1 - Antenna Stand

    1 - Low Profile Bracket

    1 - Driver CD

    1 - Instruction Manual

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page

    Product Videos

    Custom Field

    Package Contents
    • PCI Express Wireless AC Card
    • 2 x 5 dBi Dual Band Antennas
    • 1 x Antenna Stand
    • 1 x Low Profile Bracket
    • 1 x Driver CD
    • 1 x Instruction Manual
    Host Interface PCI Express x1
    Product Type Wi-Fi Adapter
    Device Supported Desktop Computer
    Manufacturer Part Number PEX867WAC22
    Packaged Quantity 1
    Limited Warranty 2 Year
    Weight (Approximate) 2.90 oz
    Form Factor Internal
    Manufacturer StarTech
    Product Name PCI Express Wireless AC Card
    Wireless Transmission Speed 1.17 Gbit/s
    Brand Name StarTech
    Country of Origin Taiwan
    Height 4.7"
    Width 0.7"
    Environmentally Friendly Yes
    Environmental Certification RoHS
    Environmental Certification WEEE
    Environmental Certification REACH
    Wireless LAN Standard IEEE 802.11ac
    ISM Band Yes
    UNII Band Yes
    ISM Maximum Frequency 2.48 GHz
    UNII Maximum Frequency 5.85 GHz
    TAA Compliant Yes
    Wi-Fi Generation Wi-Fi 5
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
