Product Description

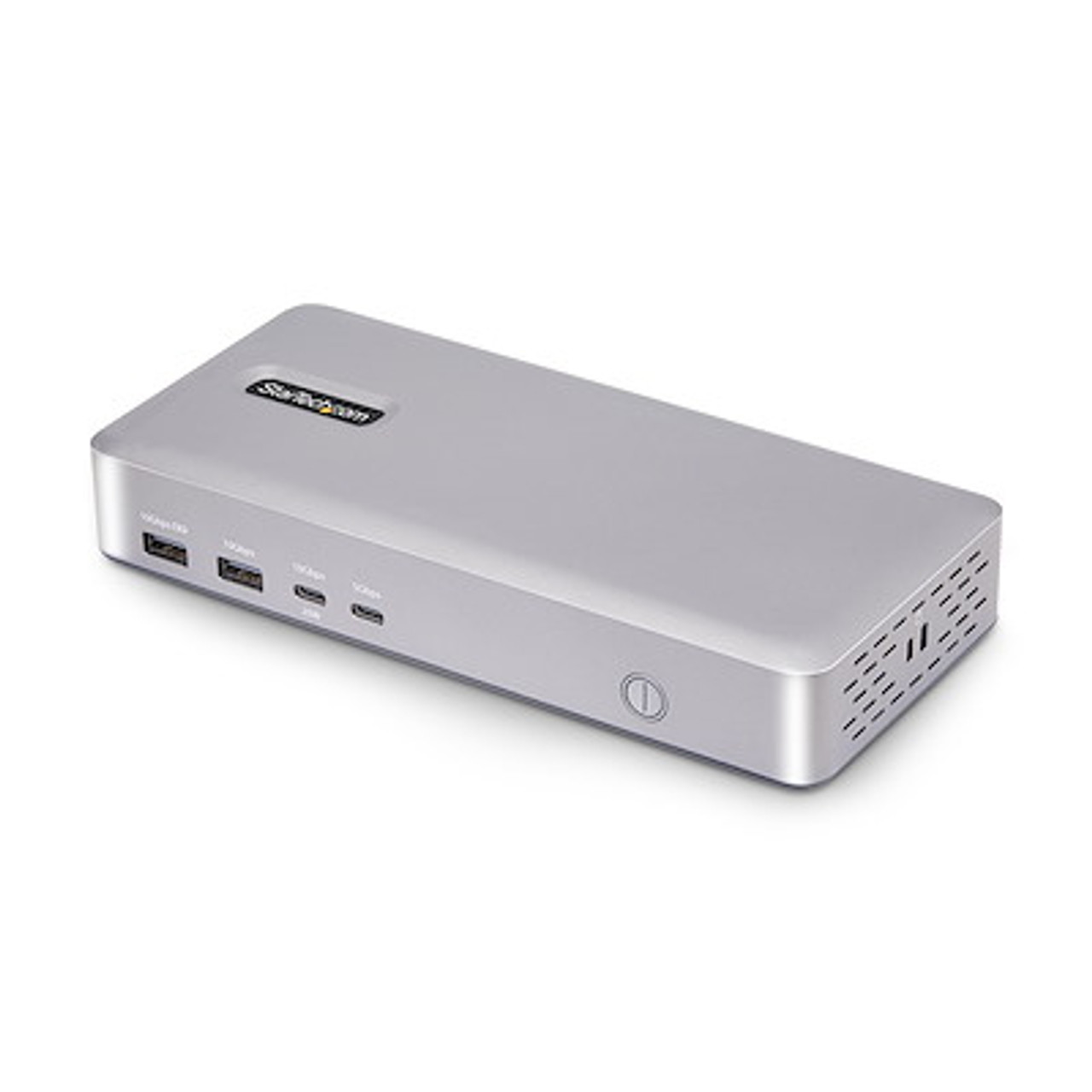

Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD -155NA-USB4-DOCK
Turn a USB4 equipped laptop into a dual monitor workstation
- HIGH-PERFORMANCE USB4 DOCK: USB4 delivers 40Gbps data transfer speeds, and improved bandwidth for video, making this mobile docking station an ideal solution for high-performance computing & seamless device connectivity
- DUAL 4K 60Hz/120Hz VIDEO: 2x HDMI 2.1 ports support Dual 4K 60Hz or up to Dual 4K 120Hz / Single 8K 60hz at 4:2:2; Delivers direct GPU performance with no software or compression
- COMPATIBILITY: Dock is Compatible with Windows 11 (x64 and ARM), Windows 10, and ChromeOS; Optimal performance with Thunderbolt 4 and USB4 laptops; Compatible with Intel 12th Gen and later, Intel Core Ultra, AMD, and Snapdragon X Co-Pilot+ PC's
- DEVICE SECURITY: Secure 3.3ft (1m) USB-C locking cable for host port; Mounting holes available for optional mounting bracket; K-slot & Nano security slots; USB Event Monitoring, Mac Address Pass-Through with included Connectivity Tools software suite
- PORTS: 6-port USB hub (2x USA-A 10Gbps / 2x USB-A 5Gbps / 1x USB-C 10Gbps / 1x USB-C 5Gbps); 2.5Gb LAN (10/100/1000/2500Mbps, WoL/PXE); 180W power adapter charges laptop (100W PD) & powers all ports; 1x 20W USB-C, 1x 7.5W USB-A for charging USB devices
High-Performance Connectivity & Ultra-High Resolution Video
Transform a USB4 laptop into a high-performance multi-monitor workstation with 6x USB ports, a 2.5 Gigabit Ethernet port, USB Power Delivery, downstream device charging, and the ability to connect up to 2x 4K 120Hz monitors.
High-Performance Video Supporting Up to Two 4K 120Hz Monitors
Add flexibility to your workstation with 2 x HDMI video outputs for connecting multiple monitors to your host computer.
Applications
- Connect dual 4K monitors or an 8K monitor to enhance productivity with extended desktops for multitasking in business and office environments
- Supports high-resolution monitors for graphic design, video editing, 3D modeling, and other creative tasks that require detailed visuals
- Simplify connections in work from home applications with a single cable for power, display, and peripherals, making it easy to set up and break down workstations
DATASHEET
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Manufacturer Part Number 155NA-USB4-DOCK
Ethernet Technology 2.5 Gigabit Ethernet
Maximum Power Supply Wattage 180 W
Package Contents 155NA-USB4-DOCK, 1 x 3 ft [1 m] USB4 Host Cable, 1 x Universal Power Adapter (North America), 1 x Quick-Start Guide
Product Type Docking Station
Host Interface USB4
Number of HDMI Outputs 2
Network (RJ-45) Yes
Total Number of USB Ports 6
Thunderbolt Yes
Number of RJ-45 Ports 1
USB Type-C Yes
USB Type-C Detail 1 x USB Type-C 10Gbps, 1x USB-C 5Gbps
Number of USB Type-C Ports 2
Number of USB Type-A Ports 4
USB Power Delivery 100W
Number of USB 3.2 Gen 1 Type-A Ports 1
Number of USB 3.2 Gen 2 Type-A Ports 2
USB Type-A Yes
Charging Capability Yes
Weight of Product 4.9 oz [138.6 g]
Color Space Gray
Note Images may not be exact, please check specifications.
