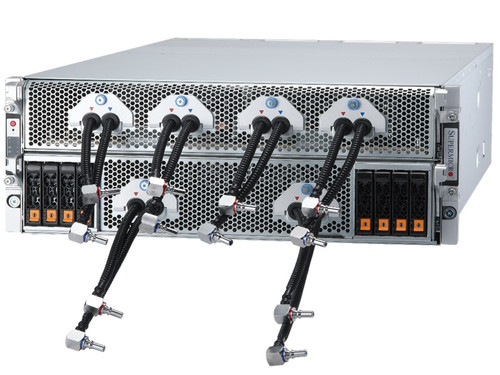

Supermicro GPU A+ Server AS -4126GS-NMR-LCC DP AMD 4U Liquid-Cooled System with AMD Instinct MI355X 8-GPU

Supermicro

Request A Quote

Write a Review

SKU:: HS-SUP-AS-4126GS-NMR-LCC
Condition:: New
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
Manufacturer Part Number:: AS-4126GS-NMR-LCC
Note:: Images may not be exact, please check specifications.
Required A Volume Purchase:: Contact us for a volume pricing | volumeorders@hssl.us

Overview
Other Details

Product Description

Supermicro GPU A+ Server AS -4126GS-NMR-LCC DP AMD 4U Liquid-Cooled System with AMD Instinct MI355X 8-GPU

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Healthcare
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Climate and Weather Modeling
Finance & Economics

Key Features

Dual processor(s) AMD EPYC 9005/9004 Series Processors up to 500W with Liquid Cooling
Supports up to 24 DIMMs slots, 6400 MT/s 6TB DDR5 in 1DPC
(Please check System Memory Section for detail)
Supports up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
2 RJ45 10GbE
Total of 8 front hot-swap 2.5" NVMe drive bays
Support for up to 8 onboard :OAM GPU accelerator modules
Total of 4 Redundant (2+2) 6600W Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
A+ Server AS -4126GS-NMR-LCC
A+ Server AS -4126GS-NMR-LCC-G1 Gold Series version with pre-configured components

Motherboard
Super H14DSG-OD

Processor
CPU	Dual processor(s) AMD EPYC 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs (Liquid Cooled)

GPU
Max GPU Count	Up to 8 onboard GPUs
Supported GPU	AMD: Instinct MI355X Accelerators, Instinct MI325X Accelerators
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric Link

System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Memory Voltage	1.1V

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE with Intel X710

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
TPM	1 TPM header

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	4U Rackmount
Model	CSE-GP403TS-R000NP2

Dimensions and Weight
Height	6.85" (174 mm)
Width	17.6" (449 mm)
Depth	35.25" (895.35 mm)
Package	16.14" (H) x 50.39" (W) x 28.7" (D)
Weight	Gross Weight: 140 lbs (63.5 kg) Net Weight: 80 lbs (53 kg)
Available Color	Silver

Front Panel
LED	Network activity LEDs System information (overheat/UID) UID
Buttons	Power On/Off UID/ Reset button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
M.2	2 M.2 NVMe slots (M-key 22110(default))

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2	2 M.2 NVMe slots (M-key)

System Cooling
Fans	5x 6cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Liquid Cooling	Direct to Chip (D2C) Cold Plate

Power Supply

4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Datasheet

Other Details

(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page
