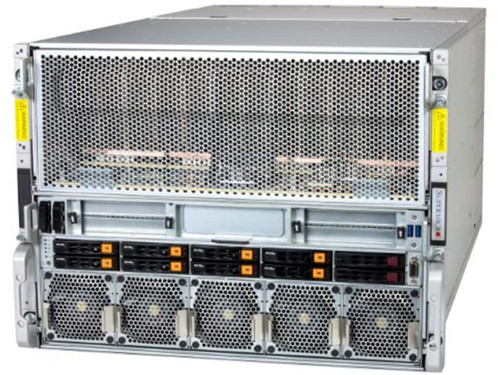

Supermicro GPU A+ Server AS -8126GS-TNMR DP AMD 8U System with AMD Instinct MI350X 8-GPU

Supermicro

Request A Quote

Write a Review

SKU:: HS-SUP-AS-8126GS-TNMR
Condition:: New
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
Manufacturer Part Number:: AS-8126GS-TNMR
Note:: Images may not be exact, please check specifications.
Required A Volume Purchase:: Contact us for a volume pricing | volumeorders@hssl.us

Overview
Other Details

Product Description

Supermicro GPU A+ Server AS -8126GS-TNMR DP AMD 8U System with AMD Instinct MI350X 8-GPU

Key Applications

High Performance Computing
Database Processing and High Density Storage
AI/Deep Learning Training
Industrial Automation, Retail
Machine Learning (ML)
Data center
Climate and Weather Modeling

Key Features

Dual Socket SP5 AMD EPYC 9005/9004 Series Processors up to 500W with air cooling
8 onboard OAM GPU cards
Supports up to 24 DIMMs slots, 6400 MT/s 6TB DDR5 memory in 1DPC
(Please check System Memory Section for detail)
8 front hot-swap 2.5" NVMe + 2 front hot-swap 2.5" SATA
Total of 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
Total of 6 (3+3) Titanium Level Efficiency 5250W Power Supplies
(Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
A+ Server AS -8126GS-TNMR
A+ Server AS -8126GS-TNMR-G1 Gold Series version with pre-configured components

Motherboard
Super H14DSG-OD

Processor
CPU	Dual processor(s) AMD EPYC 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs

GPU
Max GPU Count	8 onboard GPUs
Supported GPU	AMD: Instinct MI350X Accelerators, Instinct MI325X Accelerators
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric Link

System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Memory Voltage	1.1V

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE with Intel X710

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
TPM	1 TPM header

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	8U Rackmount
Model	CSE-GP805TS-R000NPF

Dimensions and Weight
Height	13.8" (356 mm)
Width	17.6" (447 mm)
Depth	33.2" (843 mm)
Package	27.6" (H) x 51" (W) x 29.5" (D)
Weight	Gross Weight: 158.73 lbs (72 kg) Net Weight: 105.82 lbs (48 kg)
Available Color	Silver

Front Panel
LED	HDD activity Network activity LEDs System information (overheat/UID) UID
Buttons	Power On/Off UID/ Reset button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
M.2	2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default))

Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays 2 front hot-swap 2.5" SATA drive bays 8 front hot-swap 2.5" NVMe drive bays
M.2	2 M.2 NVMe slots (M-key)

System Cooling
Fans	10 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

Power Supply

6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5250W: 200-240Vac / 50-60Hz
+12V	Max: 125A / Min: 0A (200Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
