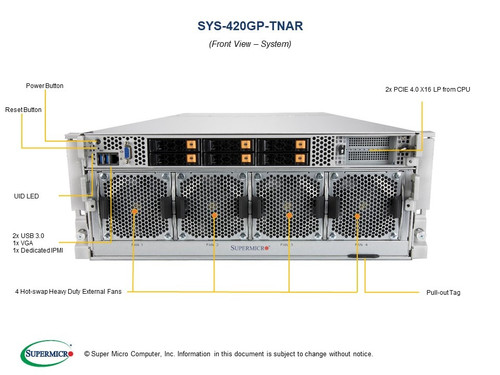

Supermicro GPU SuperServer 4U Dual Processor (3rd Gen Intel® Xeon®) GPU System with NVIDIA HGX A100 8-GPU 40GB/80GB, NVLink, NVSwitch. - SYS-420GP-TNAR

Supermicro

Request a Quote

Write a Review

SKU:: HS-SYS-420GP-TNAR
Condition:: New
Availability:: Request A Quote | Call Us: +1 888 988 5827 Or Email: sales@hssl.us | Include your specific part number to your request. MTTR is usally within 1 Business Day 6AM-10PM EST
MPN:: SYS-420GP-TNAR
NOTE:: Images may not be exact
Required A Volume Purchase:: Contact us for a special pricing for volume orders. sales@hssl.us

Overview
Other Details

Product Description

Specifications


Product SKUs

SYS-420GP-TNAR	SuperServer SYS-420GP-TNAR (Black Front & Silver Body)


Motherboard

Super X12DGO-6


Processor

CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W
Cores	Up to 40C/80T; Up to 60MB Cache


GPU

Supported GPU	HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board
CPU-GPU Interconnect	PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect


System Memory

Memory	Memory Capacity: 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Up to 12TB: 16x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC


On-Board Devices

SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X550-AT2 (optional)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support


Input / Output

Video	1 VGA port(s)


System BIOS

BIOS Type	AMI 32MB SPI Flash EEPROM


Management

Software	OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Chassis

Form Factor	4U Rackmount
Model	CSE-438G


Dimensions and Weight

Height	6.9" (174mm)
Width	17.6" (446mm)
Depth	35.4" (900mm)
Package	29.5" (H) x 27.4" (W) x 44.9" (D)
Weight	Net Weight: 166 lbs (75.3 kg) Gross Weight: 225 lbs (102.1 kg)
Available Color	Black Front & Silver Body


Expansion Slots

PCI-Express (PCI-E)	Slot 1: PCI-E 4.0 x16 LP Slot 2: PCI-E 4.0 x16 LP Slot 3: PCI-E 4.0 x16 LP Slot 4: PCI-E 4.0 x16 LP Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x16 LP Slot 7: PCI-E 4.0 x16 LP Slot 8: PCI-E 4.0 x16 LP Slot 9: PCI-E 4.0 x16 LP Slot 10: PCI-E 4.0 x16 LP


Drive Bays / Storage

Hot-swap	6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid; 4x 2.5" NVMe dedicated)
M.2	2 M.2 NVMe OR 2 M.2 SATA3



System Cooling

Fans	4 heavy duty fans with optimal fan speed control


Power Supply

4x 2200W Redundant Power Supplies, Titanium Level
Dimension (W x H x L)	106.5 x 82.4 x 203.3 mm
AC Input	1200W: 100-127Vac / 11A-14A / 50-60Hz 2000W: 180-220Vac / 11A-13A / 50-60Hz (UL/CUL only) 1800W: 200-220Vac / 9.5A-10A / 50-60Hz 1980W: 220-230Vac / 9.8A-10A / 50-60Hz 2200W: 220-240Vac / 11A-12A / 50-60Hz (UL/CUL only) 2090W: 230-240Vac / 9.8A-10A / 50-60Hz
+12V	Max: 10A / Min: 9.5A (200Vac-220Vac) (CQC only) Max: 10A / Min: 9.8A (220Vac-230Vac) (CQC only) Max: 10A / Min: 9.8A (230Vac-240Vac) (CQC only) Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only)
Output Type	Backplanes (connector)
Certification	Titanium Level [ Test Report ]


Operating Environment

Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: 40°C to 60°C (40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X12DGO-6 CSE-438G	1 1	Super X12DGO-6 Motherboard 4U Chassis
Add-on Card / Module	AOM-438G-AIOM-P	1	AIOM adapter card for CSE-438G,RoHS
Add-on Card / Module	AOM-438G-FAN-P	1	Fan adaptor for SC1018G,RoHS
Add-on Card / Module	AOM-DGO-IO-P	1	I/O riser card for 4U 8 SXM4 GPU system 420GP-TEVRT,RoHS
Add-on Card / Module	AOM-SXM4-IO-P	1	PCIE Gen4 switch board for 4U 8 SXM4 GPU system,RoHS
Backplane	BPN-GPU-438G	1	Midplane for 4U AMD/Intel Delta GPU system,RoHS
Backplane	BPN-NVME4-F418-B6S6	1	1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices. The Backplane is for X12 FatTwin Product Line.,HF,RoHS
Cable 1	CBL-GNZ2-12105F-85	1	GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105.
Cable 2	CBL-GNZ2-1281F-85	1	GENZ 2C x16 (STR),Slimline x8 (STR) to 2x 2x Slimline x4
Cable 3	CBL-PWCD-0900	4	PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Cable 4	CBL-PWEX-1114-30	1	Microfit,2x4, PH3.0 to Microfit,2x4, PH3.0,30CM,9A/pin,
Cable 5	CBL-PWEX-1117-40	2	MiniFit,2x2,PH4.2,F to MiniFit,2x2,PH4.2,F,40CM,8A/pin,
Cable 6	CBL-SAST-1238FLP-85	1	SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,38C
Cable 7	CBL-SAST-1242-100	2	Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,43CM,100 O
Cable 8	CBL-SAST-1258FLP-85	1	SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,58C
FAN 1	FAN-0196L4-1	4	92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fan Board
Power Supply	PWS-2K21G-2R	4	AC-DC 2200W at high and 1200W at low line multi-output
Riser Card	RSC-G-66G4	1	1U LHS GPU Riser card with two PCI-E 4.0 x16 slots,RoHS
Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
Heatsink / Retention	SNK-P0077V	2	X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Cable 9	CBL-OTHR-0794	1	VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS
