    Product Details

    Key Applications- Scientific Virtualization
    - High Performance Computing
    - VDI
    - AI/Deep Learning Training


    Key Features

    1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    2. Intel® C621A Chipset
    3. 16 DIMM Slots;
      Up to 4TB DRAM;
      Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ;
      3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
      Intel® Optane™ Persistent Memory 200 series
    4. 2 PCI-E Gen 4.0 x8 LP
      6 PCI-E Gen 4.0 x16 FHFL
    5. Flexible networking options
    6. 10x 2.5" Hot-swap drive bays
      2 M.2 NVMe for boot drive only
      Up to 6x 2.5" NVMe
    7. 5 counter rotating fans w/ Optimal Fan Speed Control
    8. 2x 2600W redundant Titanium level power supplies

    Specifications

    Product SKUs

    SYS-220GP-TNR
    • SuperServer SYS-220GP-TNR (Black Front & Silver Body)

    Motherboard



    Super X12DPG-AR

    Processor

    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • Support CPU TDP 270W
    Cores
    • Up to 40C/80T; Up to 60MB Cache

    GPU

    Supported GPU
    • NVIDIA A100,A40, and RTX A6000
    CPU-GPU Interconnect
    • PCI-E 4.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCI-E

    System Memory

    Memory
    • Memory Capacity: 16 DIMM slots
    • Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem
    • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
    • Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2 V
    Error Detection
    • ECC

    On-Board Devices

    SATA
    • SATA3 (6Gbps); RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    Input / Output

    Video
    • 1 VGA port(s)

    System BIOS

    BIOS Type
    • AMI 32MB SPI Flash EEPROM

    Management

    Software
    • OOB Management Package (SFT-OOB-LIC )
    • Redfish API
    • IPMI 2.0
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery

    PC Health Monitoring

    CPU
    • 7 +1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors

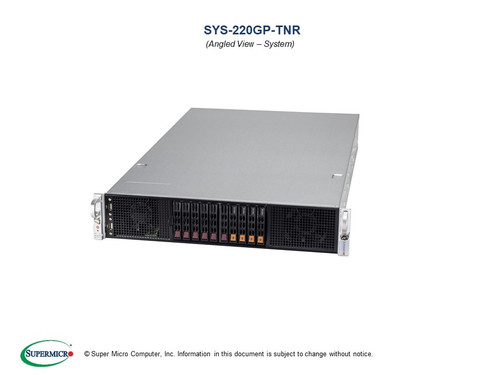

    Chassis

    Form Factor
    • 2U Rackmount
    Model
    • CSE-218GH2TS-R2K63BP

    Dimensions and Weight

    Height
    • 3.46" (88mm)
    Width
    • 17.35" (440.7mm)
    Depth
    • 30.18" (766.8mm)
    Package
    • 11" (H) x 26.5" (W) x 44.5" (D)
    •
    Weight
    • Net Weight: 39.5 lbs (17.9 kg)
    • Gross Weight: 54 lbs (24.5 kg)
    Available Color
    • Black Front & Silver Body


    Expansion Slots

    PCI-Express (PCI-E)
    • Slot 1: PCI-E 4.0 x16 FHFL
    • Slot 2: PCI-E 4.0 x16 FHFL
    • Slot 3: PCI-E 4.0 x16 FHFL
    • Slot 4: PCI-E 4.0 x16 FHFL
    • Slot 5: PCI-E 4.0 x16 FHFL
    • Slot 6: PCI-E 4.0 x16 FHFL
    • Slot 7: PCI-E 4.0 x8 FH
    • Slot 8: PCI-E 4.0 x8 FH

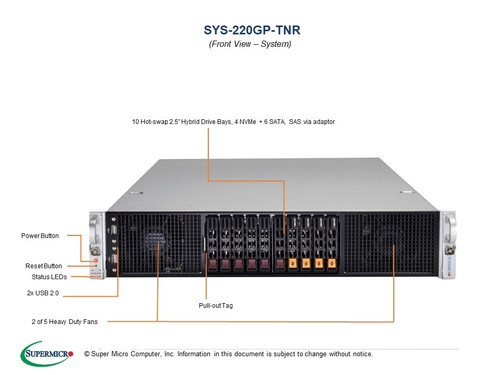

    Drive Bays / Storage

    Hot-swap
    • 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated)


    System Cooling

    Fans
    • 5 heavy duty fans with optimal fan speed control

    Power Supply

    2x 2600W Titanium Redundant Power Supply
    Dimension

    (W x H x L)
    • 73.5 x 40 x 265 mm
    AC Input
    • 2600W: 200-240Vac / 15A Max / 50-60Hz
    DC Input
    • 2600W: 240-240Vdc For CQC only/ 15A Max
    +12V
    • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
    Output Type
    • Backplanes (gold finger)
    Certification Titanium Level94%+  Titanium Level




      [ Test Report ]

    Operating Environment

    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)



    Parts List

    Parts List - (Items Included)



    Part Number

    Qty

    Description

    Motherboard / Chassis MBD-X12DPG-AR


    CSE-218GH2TS-R2K63BP
    1


    1
    Super X12DPG-AR Motherboard


    2U Chassis
    Backplane BPN-SAS3-218GH2A-N6 1 2U 10-Slot SFF Backplane Support 8 x SAS3/SATA3 and 6 x NVMe4 Storage Devices,HF,RoHS
    Cable 1 CBL-PWEX-1028 6 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    Cable 2 CBL-PWEX-1114-30 3 Microfit,2x4, PH3.0 to Microfit,2x4, PH3.0,30CM,9A/pin,
    Cable 3 CBL-SAST-1216LP-85 2 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),16CM,85 OHM,R
    Cable 4 CBL-SAST-1224LP-85 2 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    Cable 5 CBL-SAST-1229LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
    Cable 6 CBL-SAST-1272-100 2 Slimline x4 (STR) to Slimline x4 (STR),72CM,100 OHM,RoH
    Riser Card RSC-G-88G4 1 1U LHS GPU Riser card with two PCI-E 4.0 x8 slots,HF,RoHS
    Riser Card RSC-G2B-66G4 1 2U Rear LHS GPU riser cards with two PCI-E 4.0 x16 slots
    Riser Card RSC-G2F-66G4 1 2U Front LHS GPU riser card with two PCI-E 4.0 x16 slots
    Riser Card RSC-G2FR-66G4 1 2U Front RHS GPU Riser card with two PCI-E 4.0 x16 slots
    Riser Card RSC-G2R-8G4 1 2U RHS GPU Riser card with one PCI-E 4.0 x8 slot,HF,RoHS
    Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
    Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    Heatsink / Retention SNK-P0078PC 1 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply PWS-2K63A-1R 2 1U 2600Wredundant single outpupowersupply with wide range in
    *Power Distributor PDB-PT118-DGH 1 Power Distributor Board Support Redundancy1K65 forSC118
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

    Optional Parts List

      Part Number Qty Description
    GPU Brackets MCP-120-21807-0N 1 NVidia Tesla T4 GPU Bracket Set
    MCP-240-21829-0N 1 NVidia A10 GPU Bracket Set
    Network Cards MCX516A-CCAT 1 Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS
    Network Cards (AIOM) AOC-ATG-I4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS
    AOC-STG-I2T 1 Intel X540 2-port RJ45 10GbE Gen3 x8 Standard Low profile
    Rear Fan Kit MCP-320-21809-0N 1 For supporting certain GPU configurations. Please consult compatible GPU list.
    Storage Controller Cards and Cables AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
    CBL-SAST-1285-100 (for S3108L) 2 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
    AOC-S3108L-H8iR-16DD 1 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp
    CBL-SAST-1264F-100 (for S3908L) 1 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM,10
