Product Description

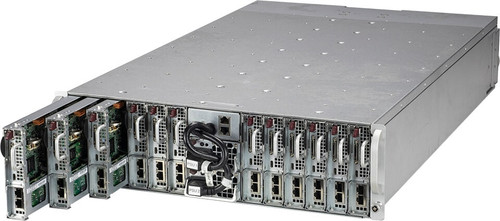

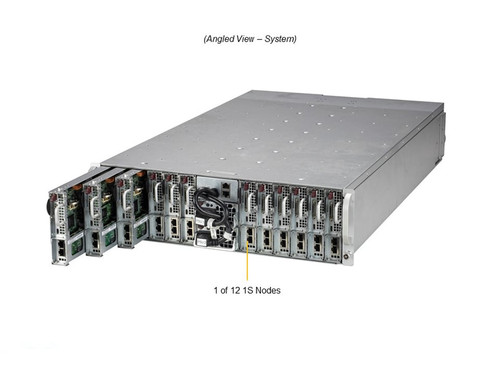

Supermicro MicroCloud SuperServer SYS-530MT-H12TRF Single Socket H5 (LGA-1200) Intel Xeon processor E-2300 series and 10th Gen. Pentium Processors
Key Applications
- Cloud Computing
- Web Hosting, VM
- Online Game Server Hosting
- IT Infrastructure
- Web Cache
- Social Networking
Key Features
- 12 set of Intel Xeon E-2300 series and Pentium processor
- Intel C256
- 12 set of Up to 128GB ECC/non ECC Very Low Profile UDIMM; DDR4 3200MHz, in 4 DIMM sockets
- 12 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
- 12 set of Dual 1GbE LAN Ports
- 12 set of 2x internal 3.5" SATA3 (6Gbps) (or) 4x 2.5" SATA3 drives with 2x Hybrid NVMe U.2; Intel RSTe RAID
- 4x 8cm Heavy duty fans with optimal cooling zone
- 2200W Redundant Titanium Level high-efficiency power supplies with PMBus
DATASHEETOther Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN SYS-530MT-H12TRF
CPU Single Socket H5 (LGA-1200) Intel Xeon processor E-2300 series and 10th Gen. Pentium Processors
Core Count Up to 8C/16T
SATA SATA (6Gbps) via Intel C256
Chipset Intel C256
Network Connectivity No NIC option supported
LAN 2 RJ45 1 GbE LAN ports (Intel I350)
USB 2 USB 2.0 ports 1 Type-C port(front)
Video 1 port
DOM 1 SATA DOM (Disk on Module) port
Form Factor 3U Rackmount
Model CSE-939HN-R2K20BP
Height 5.21" (132.5 mm)
Width 17.5" (444.5 mm)
Depth 29.5" (749.3 mm)
Package 16.1" (H) x 28.35" (W) x 42.36" (D)
Net Weight 95 lbs (43.09 kg)
Color Black
Fans 4 Heavy Duty 9cm Fan(s)
Memory Slot Count: 4 DIMM slots, Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
BIOS Type AMI 128MB SPI Flash EEPROM
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
