Product Details
| Key Applications - Edge Computing - Micro Data Center - AI/ML, Deep Learning Training and Inference - Virtualization - Cloud Computing Key Features Cooling NVIDIA® GPUs in 1U 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)‡ DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† double-width GPU), 1 PCI-E 3.0 x16 low-profile slot (center right) both M.2 NVMe and SATA SSD 4cm fans with air shroud & optimal fan speed control Platinum Level (94%+) |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts List - (Items Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X11SPG-TF |
1 |
Super X11SPG-TF Motherboard |

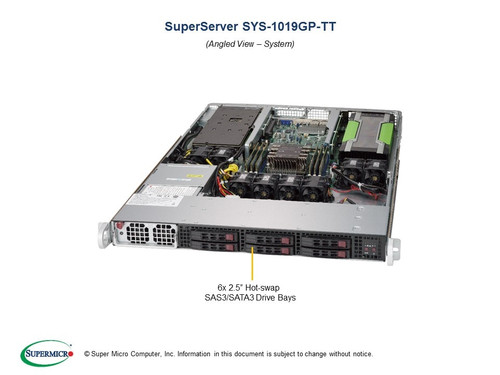

| Backplane | BPN-SAS-118TQ | 1 | 6-port 1U TQ (W/ AMI 9072) backplane, support up to 6x 2.5-inch SAS/SATA HDD/SSD |
| Cable 1 | CBL-0484L | 4 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 2 | CBL-CDAT-0662 | 2 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG |
| Cable 3 | CBL-PWEX-0663 | 1 | PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH |
| Cable 4 | CBL-PWEX-1028 | 1 | Tesla family GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C |
| Cable 5 | CBL-SAST-0624 | 2 | SATA,INT,ROUND,ST-ST,70CM,30AWG |
| Riser Card | RSC-R1U-E16R | 1 | RSC-R1U-E16R |
| Riser Card | RSC-R1UG-E16-UP | 1 | 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs |
| Riser Card | RSC-R1UG-E16R-UP | 1 | 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB |
| Heatsink / Retention | SNK-P0067PS | 1 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply | PWS-1K43F-1R | 1 | 1400W redundant digital power supply |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Other GPUs Cables | CBL-PWEX-1059 | 1 | Quadro family GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG,8A/pin(17AWG), 6A/pin(20AWG), -25~80C, RoHS |
| AOC-S3008L-L8i (SAS3) | CBL-SAST-0699 | 2 | Mini SAS HD-4 SATA, 12G |
| AOC-S3108L-H8IR-16DD (SAS3) | CBL-SAST-0699 | 2 | Mini SAS HD-4 SATA, 12G |
| AOC-S3108L-H8IR (SAS3) | CBL-SAST-0699 | 2 | Mini SAS HD-4 SATA, 12G |
| Super Cap for LSI 3108 | BKT-BBU-BRACKET-05 |
1 |
Mounting Bracket for LSI BBUs |
| Network Cards | AOC-S100G-m2C | - | Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16, based on Mellanox ConnectX-4 EN chipset |
| AOC-MCX516A-CCAT | - | Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3x16 CX-5 EN. RoHS | |
| AOC-S40G-i2Q | - | Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports | |
| AOC-MCX512A-ACAT | - | Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS | |
| AOC-MCX4121A-ACAT | - | Mellanox MCX4121A-ACAT 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket Lx EN, HF, RoHS | |
| AOC-S25G-b2S | - | Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports, based on Broadcom BCM57414 | |
| AOC-S25G-m2S | - | Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset | |
| AOC-STG-b4S | - | Standard Low-profile Quad-port 10GbE controller with 4x SFP+ ports | |
| AOC-STG-i4S | - | Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports | |
| AOC-STGN-i2S | - | Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports | |
| AOC-STGN-i1S | - | Standard Low-Profile Single-port 10GbE controller with 1x SFP+ port | |
| AOC-STG-i2T | - | Standard Low-Profile Dual-port 10GbE controller with 2x RJ45 (10GBase-T) ports | |
| AOC-SGP-i4 | - | Standard Low-Profile Quad-port GbE controller with 4x RJ45 ports | |
| AOC-SGP-i2 | - | Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports | |
| GPUs Air Shroud Kit | MCP-310-81806-0B | - | Nvidia Fermi GPU Air shroud for 818G/118G |
| Global Services & Support | OS4HR3/2/1 |
- |
3/2/1-year onsite 24x7x4 service |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
