Product Details
Key Applications - 3D/2D and CAD Applications
- Cloud Computing
- Edge Computing
- Oil and Gas Exploration
- VDI
- AI/ML, Deep Learning Training and Inference
Key Features

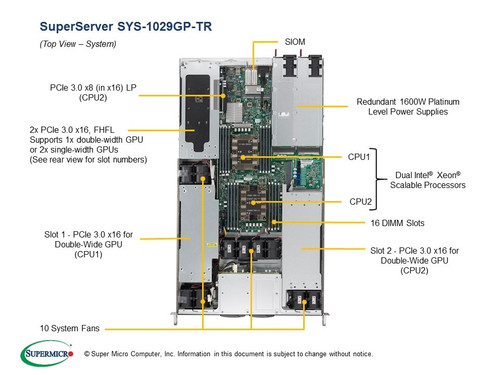

1. Supports 3x double width GPU
or 4 single width GPUs;
Support for passively cooled GPUs
2. Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)‡
3. 16 DIMMs; up to 4TB 3DS ECC
DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††

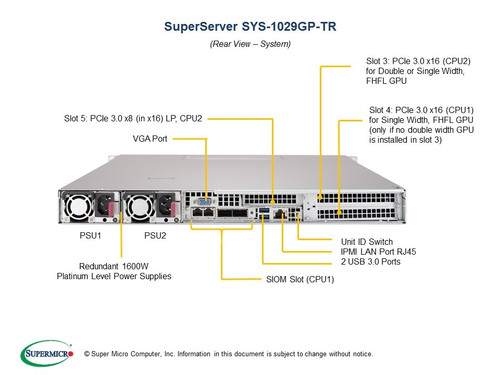

4. 4 PCI-E 3.0 x16 (FHFL) slots,
1 PCI-E 3.0 x8 (in x16, LP) slots

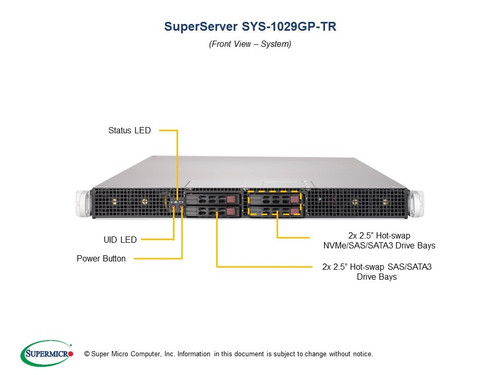

5. 2 Hot-swap 2.5" SAS/SATA drive bays,
2 Hot-swap 2.5" SATA/NVMe
drive bays
6. 1 SIOM for flexible Networking
7. 10 Counter rotating fans with
optimal fan speed control
8. 1600W Redundant Power Supplies
Platinum Level (94%)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts List - (Items Included) | |||
| Part Number | Qty | Description | |

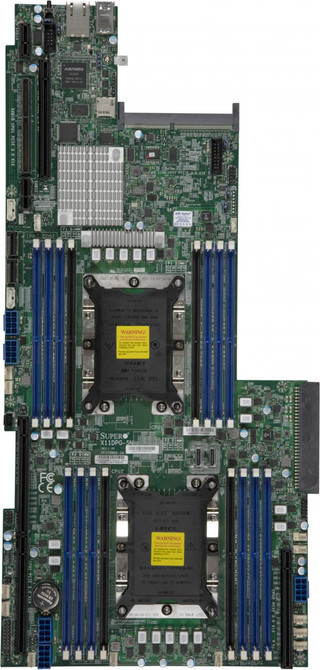

| Motherboard / Chassis | MBD-X11DPG-SN |
1 |
Super X11DPG-SN Motherboard |
| Backplane | BPN-SAS3-118GH-N2 | 1 | 1U 4-Port Hybrid Backplane Supports 2 x 2.5" SAS3/SATA3 HDD/SSD and 2 x 2.5" SAS3/SATA3/NVMe Storage Device for GPU Platform,HF,RoHS |
| Cable 1 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
| Cable 2 | CBL-0296L | 5 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
| Cable 3 | CBL-PWEX-1027 | 2 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS |
| Cable 4 | CBL-PWEX-1028 | 1 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C |
| Cable 5 | CBL-PWEX-1064 | 1 | 8pin CPU 12V to 4pin x 2pcs 280mm,16AWG,RoHS |
| Cable 6 | CBL-SAST-0974-1 | 2 | OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG |
| Cable 7 | CBL-SAST-1020 | 1 | MINI SAS HD(LA)-MINI SAS(LA),INT,85CM,30AWG |
| FAN 1 | FAN-0141L4 | 10 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan |
| Drive Tray(s) | MCP-220-00047-0B | 4 | Black gen 3rd hot-swap 2.5inch HDD tray |
| Parts | MCP-240-00112-0N | 1 | GPU 1U Top Cover Bracket (SC118GH-R1/L1/L2), come with SC118GH Chassis |
| Parts | MCP-240-11803-0N | 1 | SC118GH 1U 3xGPU Universal Bracket Set for nVidia K10 / K20 / P2040 GPUs |
| Air Shroud | MCP-310-11810-0B | 1 | Air Shroud for X11DPG-SN in CSE-118GH-R1K66B,HF,RoHS/REACH |
| Fan Holder | MCP-320-81801-0B | 5 | SC818G 2x 4056 fan tray,HF,RoHS,PBF |
| Power Supply | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF |
| Riser Card | RSC-G-A66-X | 1 | 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs |
| Riser Card | RSC-R1UG-E16AR+II | 1 | RSC-R1UG-E16AR+II |
| Riser Card | RSC-R1UG-E16R+II | 1 | RSC-R1UG-E16R+II |
| Riser Card | RSC-R1UG-E16-X9 | 1 | RSC-R1UG-E16-X9 |
| Heatsink / Retention | SNK-P0067PS | 1 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Heatsink / Retention | SNK-P0067PSMB | 1 | 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster |
| Rail Set | MCP-290-00054-0N | 1 | Rail set, quick/quick, optional for 1U 17.2"W SC815 |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Bracket Set | MCP-240-11813-0N | 2 pcs | SC118GH NVidia T4 GPU Bracket (2x pcs per chassis) |
| Bezel | MCP-210-11601-0B | 1 | Black Front Bezel for SC118GH |
| GPU Cable | CBL-PWEX-0665 | 3 | M10 GPU Model Cable |
| Cable Management Arm | MCP-290-00165-0N | 1 | 1U SMC Cable Managent Arm, 3rd Gen |
| Storage Control Card and Cable(s) | AOC-S3008L-L8e & 1x CBL-SAST-0593 & 1x CBL-SAST-0593 & CBL-SAST-0593 & CBL-SAST-0593 & CBL-SAST-0593 |
- | Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG |
| Super Cap for LSI 3108 | 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 | - | Supercap mounting bracket for PCI-E location |
| Intel VROC RAID Key | AOC-VROCINTMOD |
1 |
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) |
| 2.5" NVMe Drive Trays | MCP-220-00121-0B |
- | Black Gen-3 2.5" NVMe or drive tray, orange tab with lock |
| TPM Security Module | AOM-TPM-9670V | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS |
| Global Services & Support | OS4HR3/2/1 |
- |
3/2/1-year onsite 24x7x4 service |
| Software | SFT-OOB-LIC •  |
1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
