    • Supermicro SuperServer 1029GQ-TRT1U Dual Processor (Intel) System with 4 PCI-E GPUs

    Supermicro

    Request A Quote

    Write a Review
    SKU:
    SYS-1029GQ-TRT
    Condition:
    New
    Availability:
    Request A Quote | Call Us: +1 888 988 5827 Or Email: sales@hssl.us | Include your specific part number to your request. MTTR is usally within 1 Business Day 6AM-10PM EST
    MPN:
    SYS-1029GQ-TRT
    NOTE:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a special pricing for volume orders. sales@hssl.us

    Product Description

    SYS-1029GQ-TRT
    Specifications
    Product SKUs

    SYS-1029GQ-TRT
    • SuperServer 1029GQ-TRT

    Motherboard


    Super X11DGQ

    Processor

    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      3 UPI up to 10.4GT/s
    • Support CPU TDP up to 165W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

    GPU

    Supported GPUs
    • 4 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
    • NVIDIA V100, M10, T4, Quadro RTX, A100
    • Supports both active and passive cooled GPUs
    • Compatible GPU list
    CPU-GPU Interconnect
    • PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root

    System Memory

    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices

    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Network Connectivity
    • Intel® X540 Dual Port 10GBase-T
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

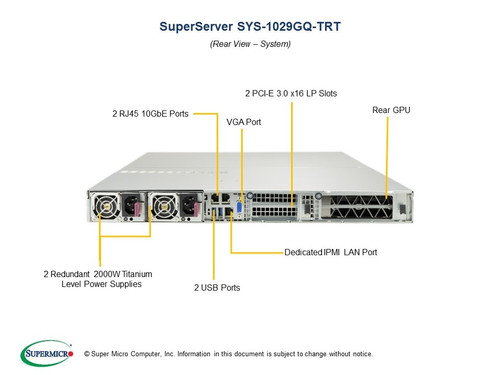

    Input / Output

    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    Serial Header
    • 1 Fast UART 16550 header

    System BIOS

    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management

    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring

    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors

    Chassis

    Form Factor
    • 1U Rackmount
    Model
    • CSE-118GQETS-R2K05P2

    Dimensions and Weight

    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 35.2" (894mm)
    • 39.3" (997mm) with rails
    Package
    • 24" (H) x 8" (W) x 46" (D)
    Weight
    • Net Weight: 45 lbs (20.4 kg)
    • Gross Weight: 58 lbs (26.31 kg)
    Available Color
    • Black

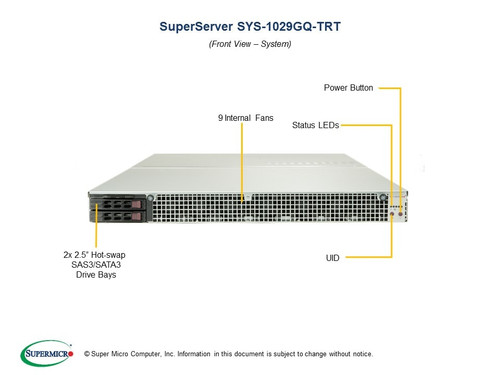

    Front Panel

    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Overheat LED / Fan fail LED /
      UID LED

    Expansion Slots

    PCI-Express
    • 4 PCI-E 3.0 x16 (FHFL) slots - supporting up to 4 GPUs
    • 2 PCI-E 3.0 x16 (LP) slots

    Drive Bays

    Hot-swap
    • 2 Hot-swap 2.5" SAS/SATA drive bays
    Fixed
    • 2 Internal 2.5" SATA drive bays
    M.2
    • Support 1x M.2 2242/2260/2280
    • Support M.2 SATA and NVMe


    System Cooling

    Fans
    • 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

    Power Supply
    2000W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 120Vac
    • 1800W: 200 – 220Vac
    • 1980W: 220 – 230Vac
    • 2000W: 230 – 240Vac
    • 2000W: 200 – 240Vac (UL/CUL only)
    Dimension
    (W x H x L)
    • 73.5 x 40 x 265 mm
    Input
    • 100-120Vac / 12.5-9.5A / 50-60Hz
    • 200-220Vac / 10-9.5A / 50-60Hz
    • 220-230Vac / 10-9.8A / 50-60Hz
    • 230-240Vac / 10-9.8A / 50-60Hz
    • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100-120Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 166.7A / Min: 0A (230-240Vac)
    • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment

    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List

    Parts List - (Items Included)

      Part Number Qty Description
    Motherboard / Chassis MBD-X11DGQ

    CSE-118GQETS-R2K05P2    		 1

    1    		 Super X11DGQ Motherboard

    CSE-118GQETS-R2K05P2 Chassis
    Add-on Card / Module AOM-PIO-I2XT-P 1 AOM-PIO-I2XT
    Backplane BPN-SAS3-118GQE 1 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
    Cable 2 CBL-PWEX-1026 3 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS
    Cable 3 CBL-PWEX-1027 1 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS
    Riser Card RSC-G-A6 1 U RHS Active Rear Riser card with 1 PCI-E x16,HF,RoHS
    Riser Card RSC-G-A66 1 1U LHS Active GPU Riser card with two PCI-E x16 Slots,HF,RoH
    Riser Card RSC-GR-6-X 3 1U LHS GPU riser card with one PCI-E x16 slot,HF,RoHS
    Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    Fans FAN-0163L4 9 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
    Rail Set MCP-290-11809-0N 1 Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm

    Optional Parts List

      Part Number Qty Description
    Additional brackets for T4 MCP-120-11816-0N 1 GPU bracket Set for NVIDIA P4/T4 GPUs
    Intel/AMD/Quadro/M10 GPU Power Cables 3x CBL-PWEX-1059 and 1x CBL-PWEX-1060 - GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG
    6+8 Pin PCIe Right Angle GPU Power Cables 3x CBL-PWEX-1061 and 1x CBL-PWEX-1062 - GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 17/20AWG
    Storage Control Card and Cable(s) AOC-S3008L-L8i
    & 1x CBL-SAST-0699

    AOC-S3108L-H8iR
    & 1x CBL-SAST-0699

    AOC-S3108L-H8iR-16DD
    & 1x CBL-SAST-0699    		 -


    -


    -
         		 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD,
    RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG

    Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD,
    RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG

    Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD,
    RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
    Super Cap for LSI 3108 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 - Supercap mounting bracket for PCI-E location
    Intel VROC RAID Key AOC-VROCINTMOD

    AOC-VROCSTNMOD

    AOC-VROCPREMOD    		 1

    1

    1    		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)

    Intel VROC Standard, RAID 0, 1, 10

    Intel VROC Premium, RAID 0, 1, 5, 10
    Network Card(s) AOC-SGP-i2/4

    AOC-STGN-i1S/i2S

    More    		 -

    -

    -    		 Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350

    Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN

    AOC Compatibility Matrix
    TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS
    Global Services & Support OS4HR3/2/1

    OSNBD3/2/1    		 -

    -    		 3/2/1-year onsite 24x7x4 service

    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
      Note: For Coprocessors, GPUs, VCA, FPGA cards not listed in table above please contact sales to discuss compatibility.
