Supermicro SuperServer 1029GQ-TVRT Barebone System - 1U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support - Intel C621 Chip - 1.50 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 12 Total Memory Slots - Serial ATA/600 RAID

Supermicro

Request A Quote

Write a Review

SKU:: HS-SYS-1029GQ-TVRT
Condition:: New
Availability:: Request A Quote | Call Us: +1 888 988 5827 Or Email: sales@hssl.us | Include your specific part number to your request. MTTR is usally within 1 Business Day 6AM-10PM EST
MPN:: SYS-1029GQ-TVRT
NOTE:: Images may not be exact
Required A Volume Purchase:: Contact us for a special pricing for volume orders. sales@hssl.us

Overview
Other Details

Product Description

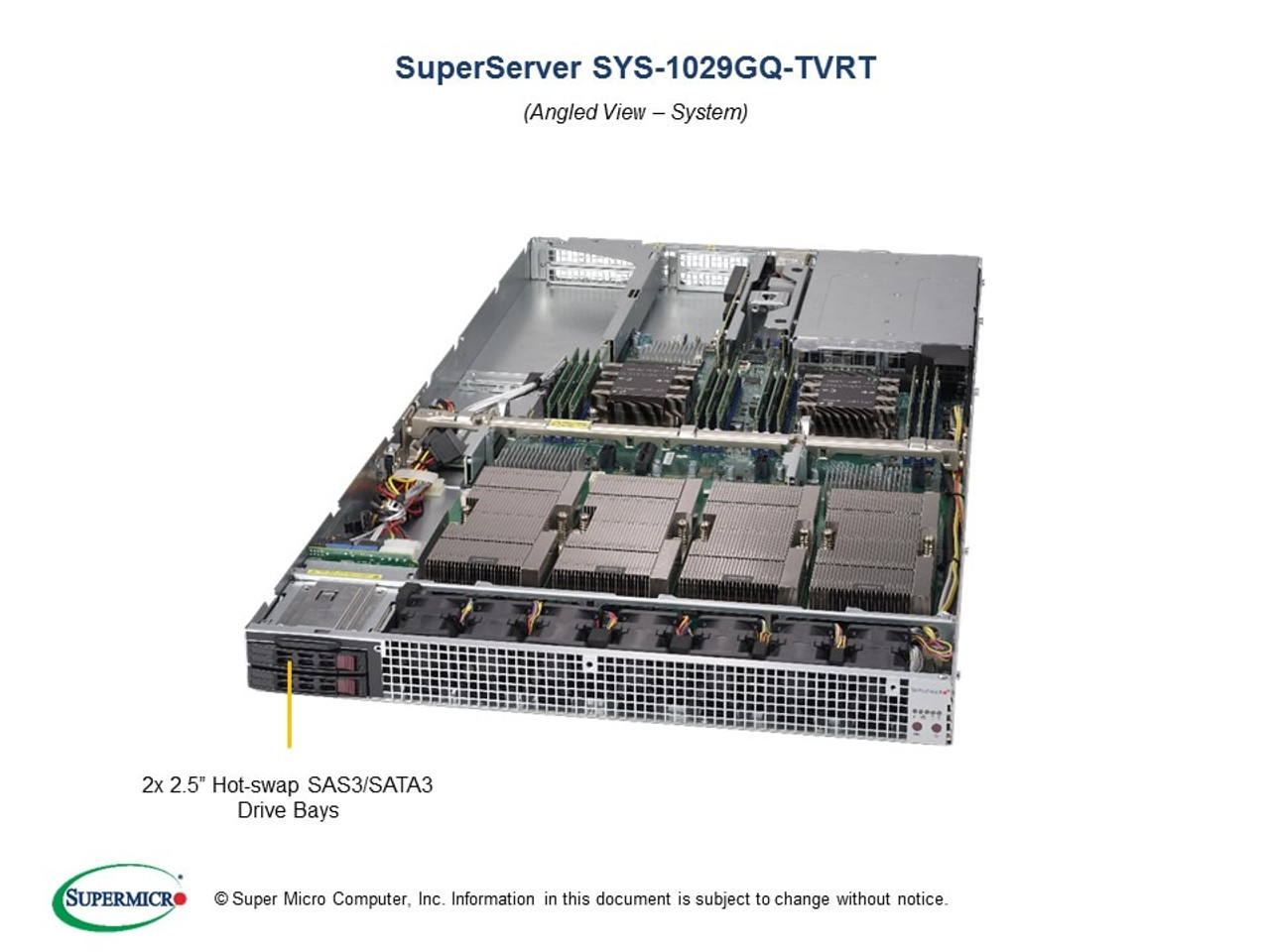

Supermicro SuperServer 1029GQ-TVRT Barebone System - 1U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support - Intel C621 Chip - 1.50 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 12 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2500 Graphic(s) - 4 2.5" Bay(s) - 4 SATA Interface(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - 10 Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 2000 W - 3 Year MUST BE BUILT BY SUPERMICRO

Key Applications - Edge Computing
- Micro Data Center
- AI/ML, Deep Learning Training and Inference
- Virtualization
- Cloud Computing
Key Features

1. Supports up to 4 NVIDIA® V100
SXM2 GPUs with up to 300 GB/s GPU-GPU
NVIDIA® NVLINK™ Interconnection

2. Optimized for NVIDIA® GPUDirect™ RDMA

3. Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)^‡

4. 12 DIMMs; up to 3TB 3DS ECC
DDR4-2933MHz^† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM^††

5. 2 PCI-E 3.0 x16 slots,
2 PCI-E 3.0 x16 LP slots

6. 2 Hot-swap 2.5" SAS/SATA
drive bays, 2 Internal 2.5" drive bays,
Optional NVMe U.2 drive option

7. Support 1x M.2 2242/2260/2280,
Support M.2 SATA and NVMe

8. 2x 10GBase-T LAN ports via Intel X540

9. 7 Heavy duty 4cm counter-rotating
fans with air shroud & optimal fan
speed control

10. 2000W Redundant Power Supplies
Titanium Level (96%)

Specifications


Product SKUs

SYS-1029GQ-TVRT	SuperServer 1029GQ-TVRT


Motherboard

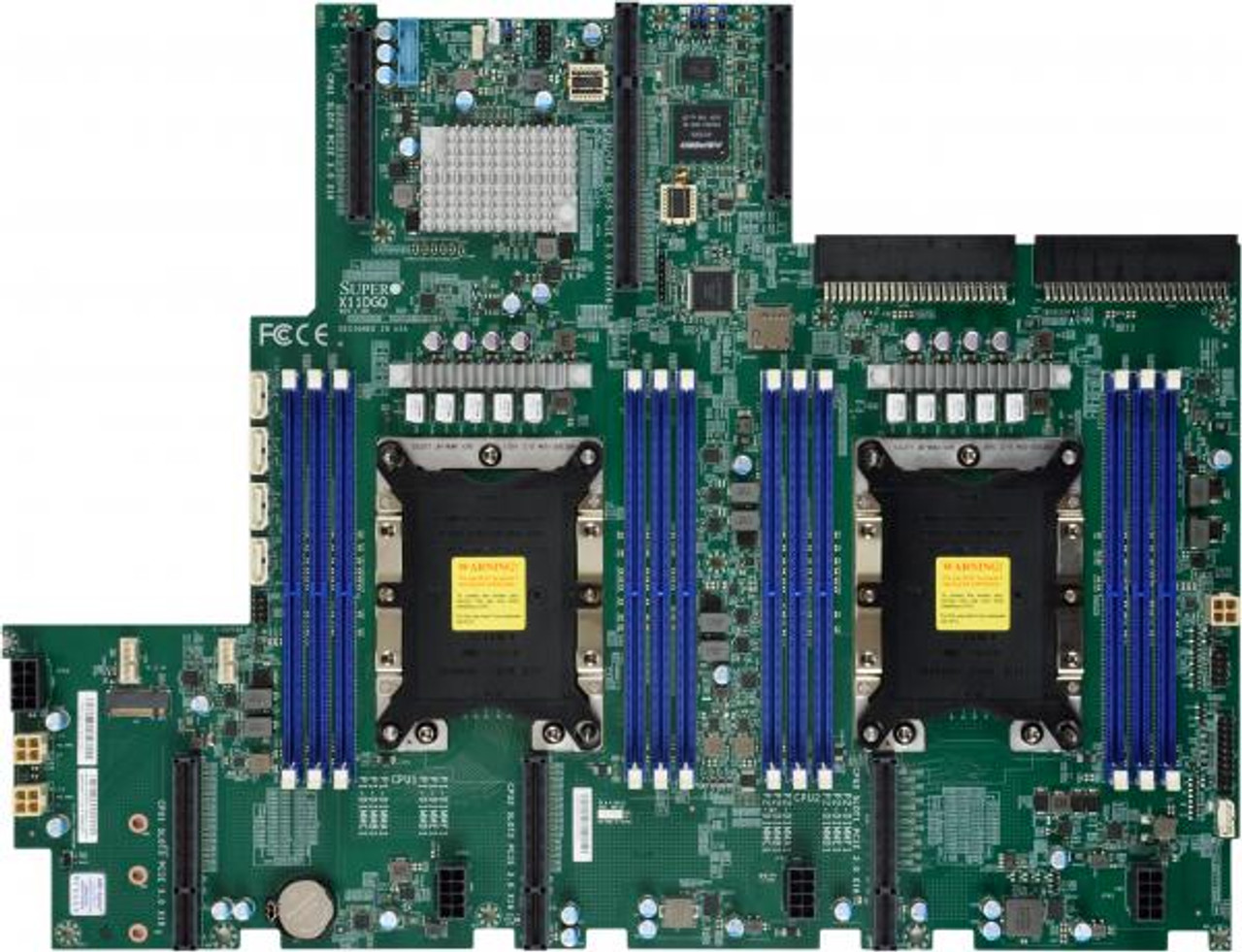

Super X11DGQ


Processor

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡, 3 UPI up to 10.4GT/s Support CPU TDP up to 165W
Cores	Up to 28 Cores
Note	^‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.


GPU

Supported GPUs	4 SXM Socket Based NVIDIA V100 Compatible GPU list
CPU-GPU Interconnect	PCI-E Gen 3 x16 Switch CPU-GPU Interconnect


System Memory

Memory Capacity	12 DIMM slots Up to 3TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM^††
Memory Type	2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro ^†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity	Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Input / Output

SATA	4 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA port
Serial Header	1 Fast UART 16550 header


System BIOS

BIOS Type	AMI 32Mb SPI Flash ROM


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Chassis

Form Factor	1U Rackmount
Model	CSE-118GQPTS-R2K05P2


Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	35.2" (894mm) 39.3" (997mm) with rails
Package	24" (H) x 8" (W) x 46" (D)
Weight	Net Weight: 45 lbs (20.41 kg) Gross Weight: 58 lbs (26.31 kg)
Available Color	Black


Front Panel

Buttons	Power On/Off button UID button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED


Expansion Slots

PCI-Express	4 PCI-E 3.0 x16 slots - supporting 4 NICs which includes 2x GPUDirect RDMA


Drive Bays

Hot-swap	2 Hot-swap 2.5" SAS/SATA drive bays Note: Can be upgraded to 2 U.2 NVMe drives by addition of optional NVMe kit (please see details in optional parts list below).
Fixed	2 Internal 2.5" SATA drive bays
M.2	Support 1x M.2 2242/2260/2280 Support M.2 SATA and NVMe



System Cooling

Fans	7 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control


Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power	1000W: 100 – 120Vac 1800W: 200 – 220Vac 1980W: 220 – 230Vac 2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only)
Dimension (W x H x L)	73.5 x 40 x 265 mm
Input	100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11DGQ CSE-118GQPTS-R2K05P2	1 1	Super X11DGQ Motherboard CSE-118GQPTS-R2K05P2 Chassis
Add-on Card / Module	AOM-PIO-I2XT-P	1	AOM-PIO-I2XT
Add-on Card / Module	AOM-SXMV-P	1	AOM housing Volta SXM 2.0 modules in conjunction with X11DGQ DP MB,HF,RoHS
Backplane	BPN-SAS3-118GQE	1	2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1	CBL-0484L	4	SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2	CBL-PWEX-1025	3	GPU,2x4F/RA/CPU to 2x4F/RA/CPU,P4.2, 6CM,17AWG, 8A/pin, -25~85C, RoHS
Cable 3	CBL-PWEX-1028	1	GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 4	CBL-SAST-0934-12	4	Oculink-Oculink X8 Cable 50cm 34AWG,RoHS
Riser Card	RSC-G-A66-X1	1	1U LHS Active Rear Riser card with two PCI-E x16 Slot,HF,RoH
Riser Card	RSC-GN2-66	1	1U Passive LHS GPU Riser Card with two NVMe ports and two PC
Heatsink / Retention	SNK-P0067PS	2	1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention	SNK-P4004V	4	1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU
Power Supply	PWS-2K05A-1R	2	1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
FAN 1	FAN-0163L4	7	40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Rear Window	MCP-240-11807-0N	1	SC118GQE Rear Window for 2x PCI-FL or 4th GPU
Rail Set	MCP-290-11809-0N	1	Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm


Optional Parts List

	Part Number	Qty	Description
Add-on card for internal M.2 NVMe	AOC-SLG3-2M2*	-	Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules * AOC to be installed in rear top PCIe slots.
AOC-S3008L-L8i (SAS3)	CBL-SAST-0699	1	Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR-16DD (SAS3)	CBL-SAST-0699	1	Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR (SAS3)	CBL-SAST-0699	1	Mini SAS HD to 4 SATA 12G
Super Cap for LSI 3108	BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02	1 1	Mounting Bracket for LSI BBUs LSI Super Cap
SXM2 GPU Dummy	MCP-120-11812-0N	1	Optional SXM2 GPU dummy
U.2 NVMe Kit	BPN-NVMe3-118GQE CBL-SAST-0935-12 MCP-220-00121-0B	1 1 2	NVMe Backplane Oculink cable x8 NVMe HS tray
TPM	AOM-TPM-9670V	-	SPI capable vertical TPM 2.0 provisioned for client,RoHS
Intel VROC RAID Key	AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD	1 1 1	Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10
Network Card(s)	AOC-MCX455A-ECAT	-	Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6
	AOC-MCX456A-ECAT	-	Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6
	AOC-MCX412A-ACAT	-	Mellanox ConnectX-4 Lx EN network interface card, 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket, ROHS R6
	AOC-MCX512F-ACAT	-	Mellanox ConnectX-5 EN network interface card, 100GbE single-port QSFP28, PCIe3.0 x16, HF, RoHSket, HF, RoHS
	AOC-MCX555A-ECAT	-	Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS
	AOC-MCX556A-ECAT	-	Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS
	AOC-MCX653105A-HDAT	-	Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS.
	AOC-SHFI-i1C	-	Intel Omni-Path Host Fabric Adapter (Chippewa Forest). Standard Low-Profile, Single QSFP28 port, 100Gb/s, based on Intel Wolf River WFR-B.,RoHS/REACH
	AOC-S25G-b2S	-	Two ports 25G standard adapter card with Broadcom BCM57414 controller, PCIe x8 Gen3,RoHS
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC •	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)

Technical Specs

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

Warranty

Limited Warranty

3 Year

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Controllers

Controller Type	Serial ATA/600
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Interfaces/Ports

Number of SATA Interfaces	4
Total Number of USB Ports	2
Number of USB 3.0 Ports	2

Miscellaneous

Package Contents	SuperServer 1029GQ-TVRT (Black) 1 x Super X11DGQ Motherboard 1 x CSE-118GQPTS-R2K05P2 Chassis 1 x AOM-PIO-I2XT 1 x AOM housing Volta SXM 2.0 modules in conjunction with X11DGQ DP MB,HF,RoHS 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD 4 x SATA,INT,ROUND,ST-ST,55CM,30AWG 3 x GPU,2x4F/RA/CPU to 2x4F/RA/CPU,P4.2, 6CM,17AWG, 8A/pin, -25~85C, RoHS 1 x GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C 4 x Oculink-Oculink 8 lanes Pascal Cable 50cm 34AWG,RoHS 1 x 1U RHS Active Rear Riser card with two PCI-E x16 Slot,HF,RoH 1 x 1U Passive LHS GPU Riser Card with two NVMe ports and two PC 2 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-1028GQ-TXR(T) Series Servers 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH 7 x 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan 1 x SC118GQE Rear Window for 2x PCI-FL or 4th GPU 1 x Rail set, Quick/Quick, Auto Latch, 548mm Short Version, 685mm~812.8mm(27"~32"), 1U 17.2 SC118GQE 1U 4xGPU
Environmentally Friendly	Yes
Environmental Certification	RoHS

I/O Expansions

Number of Internal 2.5" Bays	4
Number of Total Expansion Bays	4
Number of Total Expansion Slots	4
Number of PCI Express x16 Slots	4

Power Description

Input Voltage	120 V AC
Input Voltage	230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	2000 W

General Information

Product Type	Barebone System
Manufacturer Part Number	SYS-1029GQ-TVRT
Manufacturer Website Address	http://www.supermicro.com
Manufacturer	Supermicro Computer, Inc
Product Model	1029GQ-TVRT
Product Name	SuperServer 1029GQ-TVRT (Black)
Product Line	SuperServer
Brand Name	Supermicro

Memory

Maximum Memory	1.50 TB
Maximum Memory	1.50 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Number of Total Memory Slots	12

Processor

Processor Supported	Xeon Silver
	Xeon Platinum
	Xeon Gold
	Xeon Bronze
Processor Socket	Socket P LGA-3647
64-bit Processing	Yes
Number of Processors Supported	2

Physical Characteristics

Weight (Approximate)	45 lb
Color	Black
Color	Black
Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17.2"
Depth	39.3"

Processor & Chipset

Processor Supported	Xeon Gold
	Xeon Silver
	Xeon Platinum
	Xeon Bronze
Processor Socket	Socket P LGA-3647
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C621
Number of Processors Supported	2

Other Details
