    Product Details

    SuperServer 4029GP-TRT
    Specifications
    Product SKUs

    SYS-4029GP-TRT
    • SuperServer 4029GP-TRT (Black)

    Motherboard


    Super X11DPG-OT-CPU

    Processor

    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    GPU

    Supported GPUs
    • 8 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
    • NVIDIA V100, P40, T4, Quadro, RTX
    • Supports both active and passive cooled GPUs
    • Compatible GPU list
    CPU-GPU Interconnect
    GPU-GPU Interconnect
    • PCI-E, NVIDIA® NVLink™ Bridge (Optional)

    System Memory

    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices

    Chipset
    • Intel® C622 chipset
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Network Controllers
    • Dual Port 10GbE from C622
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output

    SATA
    • 8 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (rear)
    Video
    • 1 VGA Connector
    COM Port
    • 1 COM port (header)

    System BIOS

    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management

    Software

    PC Health Monitoring

    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors

    Chassis

    Form Factor
    • 4U Rackmountable
    • Rackmount Kit (MCP-290-00057-0N)
    Model
    • CSE-418GTS-R4000BP2

    Dimensions

    Height
    • 7.0" (178mm)
    Width
    • 17.2" (437mm)
    Depth
    • 29" (737mm)
    Weight
    • Net Weight: 65.5 lbs (29.7 kg)
    • Gross Weight: 100 lbs (45.3 kg)
    Available Colors
    • Black

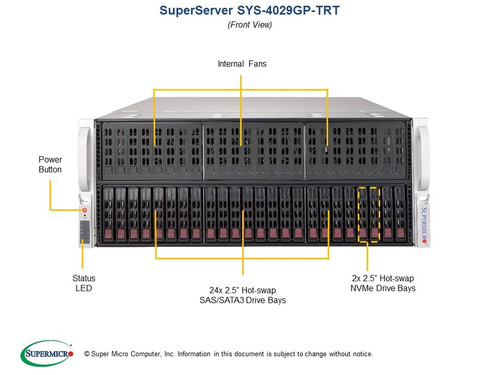

    Drive Bays / Storage

    Hot-swap
    • Up to 24x 2.5" SAS/SATA drive bays
    • 8x 2.5" SATA supported natively
    • 2x 2.5" NVMe supported natively
    M.2
    • 1 NVMe based M.2 SSD
    • Form Factors: 2260, 2280, 22110

    Expansion Slots

    PCI-Express
    • 8 PCI-E 3.0 x16 (FHFL) slots - supporting up to 8 GPUs
    • 2 PCI-E 3.0 x8 slots
    • 1 PCI-E 3.0 x4 slot

    System Cooling

    Fans
    • 8 Hot-swap 92mm cooling fans

    Power Supply
    2000W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 120Vac
    • 1800W: 200 – 220Vac
    • 1980W: 220 – 230Vac
    • 2000W: 230 – 240Vac
    • 2000W: 200 – 240Vac (UL/CUL only)
    Dimension
    (W x H x L)
    • 73.5 x 40 x 265 mm
    Input
    • 100-120Vac / 12.5-9.5A / 50-60Hz
    • 200-220Vac / 10-9.5A / 50-60Hz
    • 220-230Vac / 10-9.8A / 50-60Hz
    • 230-240Vac / 10-9.8A / 50-60Hz
    • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100-120Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 166.7A / Min: 0A (230-240Vac)
    • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment

    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List

    Parts List - (Items Included)

      Part Number Qty Description
    Motherboard / Chassis MBD-X11DPG-OT-CPU

    MBD-X9DRG-O-PCIE

    CSE-418GTS-R4000BP2
    1

    1

    1
    Super X11DPG-OT-CPU Motherboard

    Super X9DRG-O-PCIE Motherboard

    CSE-418GTS-R4000BP2 Chassis
    Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-0449L 2 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
    Cable 2 CBL-PWEX-1028 8 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    Cable 3 CBL-SAST-0507-01 2 MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG
    Cable 4 CBL-SAST-0972 2 OcuLink V. 1.0 source to MiniSAS HD,INT,PCIe, 70CM,34AWG,RoH
    Parts MCP-130-41801-0B 1 Black plastic palm cover for X9DRG-O-PCIE
    Riser Card RSC-X9DRG-O 4 RSC-X9DRG-O
    Heatsink / Retention SNK-P0068APS4 2 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
    Power Supply PWS-2K05A-1R 4 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    FAN 1 FAN-0199L4 8 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF
    Rear Window MCP-240-84802-0N 1 21 slot rear window for SC418X

    Optional Parts List

      Part Number Qty Description
    0.5U LID MCP-230-41803-0N 1 Top cover for GTX card support
    1U LID MCP-230-41806-0N 1 Top cover for NVLINK BRIDGE support
    2.5" NVMe Drive Trays MCP-220-00121-0B

    MCP-220-00167-0B

    1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock

    Black Gen-3 2.5" NVMe drive tray. Orange tab with lock, Tool-less
    GPU Dummy Tray MCP-240-00096-0N 1 GPU / Add-on Card Dummy Assembly (2 Slots)
    GPU Cables CBL-PWEX-0665 1 per GPU*** GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin FEMALE BLK to 8pin FEMALE WHT. 30cm 18AWG.
    CBL-PWEX-1017 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG.
    CBL-PWEX-1040* 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG.
    CBL-PWEX-1028** 1 per GPU GPU power cable (for NVIDIA TESLA V100). 8pin FEMALE CPU BLUE to 8pin FEMALE CPU BLUE. 30cm 20AWG/16AWG.
    Note: * Use with CBL-PWEX-1028
    ** 8 qty. included with each system
    *** 2 qty. required for each MI25
    Storage Control Cards and Cables AOC-S3008L-L8I2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10
    AOC-S3008L-L8E2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only
    AOC-S3108-H8IR2, 4, 8 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60
    AOC-S3108L-H8IR-16DD4, 8 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane
    AOC-SAS3-9361-16I3, 5 1 Broadcom 9361 STD LP 16 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60.
    AOC-SAS3-9361-24I5, 6 1 Broadcom 9361 STD LP 24 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60.
    CBL-SAST-0531 2 n/a
    BTR-TFM4G-LSI004187 1 LSI Remote CVKit with DVFlash Module CVFM04 for 9361 and 9380 Controller Series
    BTR-TFM8G-LSICVM02 1 LSI Supercap w/ 8GB CV + 24" cable for LSI S3108-H8IR.
    Optional installation kit:
    - MCP-240-00127-0N
    - BKT-BBU-BRACKET-05
    MCP-240-00127-0N 1 Remote Mounting Bracket for Supercap. Installs in 2.5" drive tray.
    BKT-BBU-BRACKET-05 1 Remote Mounting Board for Supercap. Full Height mounting bracket. Low Profile mounting bracket also included.
    BPN-SAS3-216EL1 1 SAS3 12Gb/s Single Expander Backplane with x24 2.5" SATA/SAS HDD/SSD.
    Note: 2. Requires x2 CBL-SAST-0531
    3. Requires x4 CBL-SAST-0531
    4. Use BTR-TFM8G-LSICVM02 for Supercap
    5. Use BTR-TFM4G-LSI00418 for Cache Vault
    6. Requires x6 CBL-SAST-0531
    7. Requires BKT-BBU-BRACKET-05
    8. Optional BPN-SAS3-216EL1 Expander Backplane support. Will lose x2 U.2 NVMe support
    Network and Cables AOC-STG-i4S 1 4 Port 10G SFP+ PCI-E x8 Ethernet card. Based on Intel X710-AMI
    AOC-STG-i2T 1 2 Port 10G RJ45 PCI-E x8 Ethernet card. Based on Intel X540
    AOC-S25G-B2S 1 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Broadcom BCM57414
    AOC-S25G-M2S 1 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Mellanox ConnectX-4 LX EN
    AOC-MCX4121A-ACAT 1 2 Port 25G SFP28 PCI-E X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN
    AOC-S40G-I1Q 1 1 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710
    AOC-S40G-I2Q 1 2 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710
    AOC-MCX456A-ECAT 1 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-4 VPI
    AOC-MCX556A-ECAT 1 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-5 VPI
    CBL-NTWK-0944-MS28C30M 1 Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,3M,Mellanox
    CBL-NTWK-0944-MS28C20M 1 Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,2M,Mellanox
    AOC-E10GSFPSR 1 Ethernet Transceiver, SFP+ 1000Base-SX / 10GBase-SR
    CBL-NTWK-0446-01 1 Ethernet Cable, QSFP, 40GbE, PASSIVE, 28 AWG, 3M
    CBL-NTWK-0942-MQ28E20M 1 IB Cable, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M
    Global Services & Support OS4HR3/2/1

    OSNBD3/2/1
    -

    -
    3/2/1-year onsite 24x7x4 service

    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)







    Shipping & Return

    Return Policy

    You need to have a Return Authorization (RA) number before returning any products to HSSL Technologies.

    For a hard copy of this form and a shipping label, please include your request in the form below.

    You can also request an RA online by submitting an RA Request via email. Once you have provided HSSL Technologies with the appropriate information, we will contact you with an assigned RA number.

    Defective or DOA Products

    DOA or defective products are returned for REPLACEMENT ONLY with the same product/model. Deviations from this policy may result in a 20% Returns Processing Service Charge.

    • Defective products must be in the original factory carton with all original packing materials.
    • The Return Authorization number must be on the shipping label, not the carton. Please do not write on the carton.
    • Returns must be shipped freight prepaid. Products received freight collect, without an RA number, or not approved for return will be refused.
    • Return Authorization numbers are valid for fourteen (14) days only. Products returned after expiration will be refused.
    • HSSL credits are based on the purchase price or current price, whichever is lower.

    General Return Terms

    You may return most new, unopened items within 30 days of delivery for a full refund. We will also pay return shipping costs if the return is a result of our error (e.g., you received an incorrect or defective item).

    You should expect to receive your refund within approximately six weeks of giving your package to the return shipper. This period includes:

    • 5–10 business days for us to receive your return from the shipper
    • 3–5 business days for us to process your return
    • 5–10 business days for your bank to process the refund

    If you need to return an item, please Contact Us with your order number and product details. We will respond quickly with instructions for returning items from your order.


    Shipping Policy

    We can ship to virtually any address in the world. Note that there are restrictions on some products, and certain products cannot be shipped to international destinations.

    When you place an order, we will estimate shipping and delivery dates based on the availability of your items and the shipping options you select. Depending on the provider, estimated shipping dates may appear on the shipping quotes page.

    Please also note that shipping rates for many items are weight-based. The weight of each item can be found on its product detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

    Has my order shipped?

    Click the "My Account" link at the top right hand side of our site to check your orders status.

    How do I change quantities or cancel an item in my order?

    Click the "My Account" link at the top right hand side of our site to view orders you have placed. Then click the "Change quantities / cancel orders" link to find and edit your order. Please note that once an order has begun processing or has shipped, the order is no longer editable.

    How do I track my order?

    Click the "My Account" link at the top right hand side of our site to track your order.

    My order never arrived.

    Click the "My Account" link at the top right hand side of our site to track your order status. Be sure that all of the items in your order have shipped already. If you order displays your Package Tracking Numbers, check with the shipper to confirm that your packages were delivered. If your packages each show a status of "delivered", please contact customer service for assistance.

    An item is missing from my shipment.

    Click the "My Account" link at the top right hand side of our site to track your order status. Be sure that all of the items in your order have shipped already. If you order displays your Package Tracking Numbers, check with the shipper to confirm that your packages were delivered. If your packages each show a status of "delivered", please contact customer service for assistance.

    My product is missing parts.

    Click the "My Account" link at the top right hand side of our site to track your order status. Be sure that all of the items in your order have shipped already. If you order displays your Package Tracking Numbers, check with the shipper to confirm that your packages were delivered. If your packages each show a status of "delivered", please contact customer service for assistance.

    When will my backorder arrive?

    Backordered items are those which our suppliers are unable to predict when they will have more in stock, but as soon as they do, we will be able to ship the item to you.

    Warranty

    (Manufacturar Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page to receive a custom quote on your specific configuration or part/service number not find on our online catalogue. Financing Options Available for all USA customers

    Why Choose HSSL?

    We connect businesses with the right technology solutions to power growth, security, and efficiency.

    Expertise

    Backed by years of industry knowledge, our specialists understand the challenges modern businesses face.

    Partnerships

    We collaborate with top-tier technology providers to bring you innovative & high-performance products.

    End-to-End Support

    Our dedicated support ensures your systems stay optimized, secure, and ready for what’s next.

    Scalable Solutions

    Our adaptive approach ensures your IT infrastructure evolves seamlessly as your business expands.

    Expert in IT & Security Solutions

    At HSSL, we specialize in delivering cutting-edge IT infrastructure, cloud, and cybersecurity services that empower businesses to thrive in a digital-first world. Our trusted professionals provide reliable insights on:

    • Digital Transformation Strategy

      Empowering businesses to adapt and grow through modern, secure, and scalable digital infrastructure.

    • Advanced Cybersecurity

      Protecting your organization from digital threats with proactive monitoring and smart security frameworks.

    • Cloud & Infrastructure Management

      Optimizing cloud performance and IT operations for seamless scalability and improved business agility.

    • Data Backup & Recovery

      Ensuring business continuity through secure data management, automated backups, and rapid recovery solutions.

    • Network & Endpoint Solutions

      Delivering secure, high-performance networking systems that keep your business connected and efficient.

    • Technology Consulting

      Guiding organizations toward smarter IT investments and solutions that align with their long-term goals.

    You May Also Like

    Top

    Don't Miss Out

    Sign up now to receive exclusive perks and unique promotions directly to your inbox.

    Culver Drive, 340 Irvine, CA 92604

    Tel 888.988.5472

    Copyright © HSSL Technologies. All Rights Reserved. HSSL Technologies are registered trademarks of HSSL Technologies. All other trademarks and registered trademarks brands are the sole property of their respective owners.

    HSSL Technologies (US) © 2025. All Rights Reserved.
    american expressdiners clubdiscovermaestromasterpaypalvisa
