Product Description

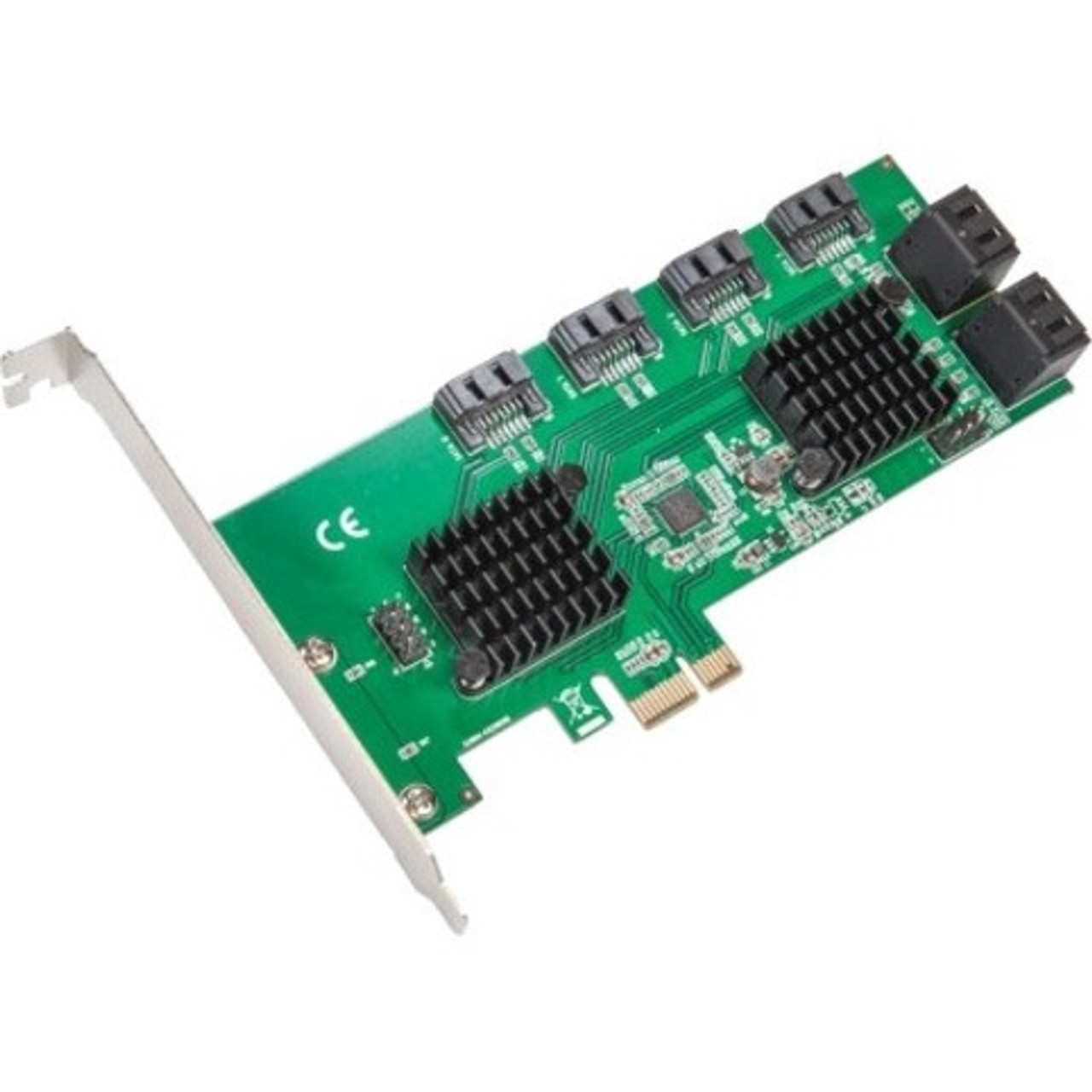

Syba 8 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SD-PEX40163 - Serial ATA/600 - PCI Express 3.0 x1 - Plug-in Card - 8 Total SATA Port(s) - 8 SATA Port(s) Internal - PC, Mac, Linux DUAL ASM1064 LOW PROFILE BRACKET
Supports 8 port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.
ASM1064, a SATA host controller(AHCI) with upstream PCIe Gen3 x1 and downstream four SATA Gen3 ports. It's a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, ASM1064 can enable users to build up various high speed IO systems, including server, high capacity system storage or surveillance platforms.
- PCIe Gen3 X1 interface to 8 ports NONE-RAID SATA III 6Gbps card will allow users add 8 x SATA III ports on desktop PCs, Servers, and NAS systems for storage expansions or AHCI boot use.
- Select the ASMedia ASM1064 the most stable Non-Raid PCIE 3.0 SATA controller solution. PCIE 3.0 X1 interface provide 8Gbps total bandwidth. Each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage.
- Supports Communication Speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps. Supports Port Multiplier.
- Supports Hot Plug and Hot Swap. Supports Native Command Queue (NCQ). Compliance Serial ATA AHCI Spec. Rev. 1.3, Serial ATA Rev. 3.0.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
- 8 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SD-PEX40163
- 1 x User's Manual
- 1 x Low-Profile Bracket
