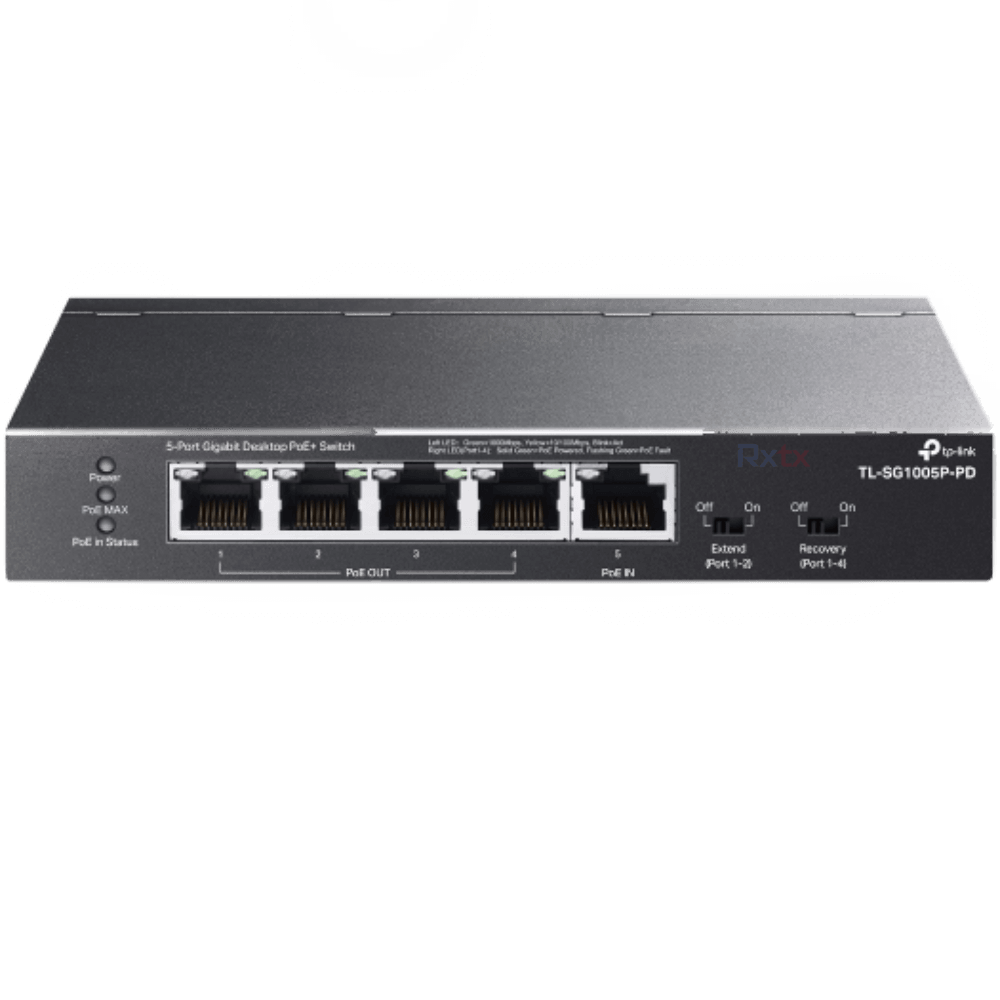

Name: TP-Link -5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out -TL-SG1005P-PD
Brand: TP-Link
SKU: HS-TPL-TL-SG1005P-PD
Availability: OutOfStock

Overview
Other Details

Product Description

TP-Link-5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out -TL-SG1005P-PD

Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.
Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Other Details

(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page

Product Videos

Custom Field

Manufacturer Part Number TL-SG1005P-PD

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p

Interface 5Ã 10/100/1000Mbps RJ45 Ports

Interface 1Ã 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)

Interface 4Ã 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)

Interface AUTO Negotiation

Interface AUTO MDI/MDIX

Dimensions ( W x D x H ) 6.2 Ã 4.0 Ã 1.0 in (158 Ã 101 Ã 25 mm)

Max Power Consumption 2.68 W (90W PoE In, with no PD connected), 68.59 W (90W PoE In, with 66 W PD connected)

Max Heat Dissipation 9.112 BTU/h (90W PoE In, with no PD connected), 233.206 BTU/h (90W PoE In, with 66 W PD connected)

Switching Capacity 10 Gbps

Packet Forwarding Rate 7.44 Mpps

Certification CE, FCC, RoHS

Package Contents TL-SG1005P-PD, Installation Guide

Operating Temperature -30â70 â (-22â158 â)

Storage Temperature -40â70 â (-40â158 â)

Operating Humidity 10â90% RH non-condensing

Storage Humidity 5â90% RH non-condensing

Note Images may not be exact, please check specifications.

Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
