Product Description
Transition Networks 6-Slot Chassis for ION Slide-in Modules - Manageable - 2 Layer Supported - Modular - 10 W Power Consumption - 1U High - Rack-mountable - Lifetime Limited Warranty PS AND MGMT MODULE BNDL

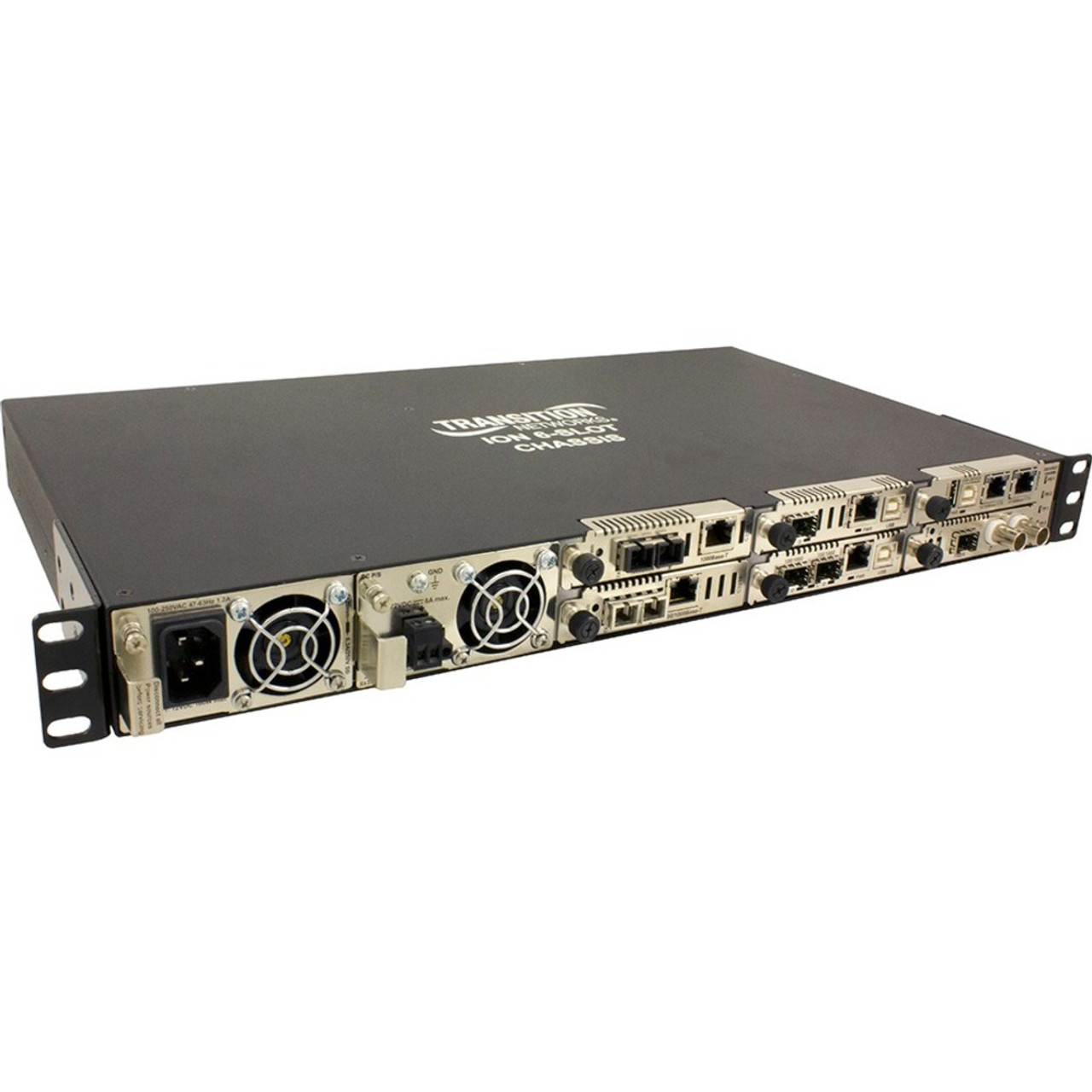

The ION106-x is an intelligent, multi-service integration platform that offers first-rate solutions for integrating, optimizing and navigating networks, all in a 19" rack mountable 1RU form factor.By cost-effectively integrating copperbased equipment into a fiber infrastructure, the ION Platform equips networks for the bandwidth, distance, and security demands of today, tomorrow, and every point in between. Designed for service providers, data centers, and core network applications, the ION Platform provides the secure network management of fiber interface points required for both carrier-class and enterprise-class services.
Media conversion technology allows for the integration of fiber optic cabling into environments with copper-based equipment. Transition Networks' ION media converters provide a quick, inexpensive method for connecting new or embedded fiber with copper-based networking devices. The ION Platform accommodates a variety of modules and interface devices supporting multiple protocols and networking environments, including Ethernet and TDM networks. With optimum flexibility built in, ION is equally suited for either single-unit network edge or high-density applications within enterprises or central offices. The ION Platform provides simple navigation of all the connected network interfaces, allowing various components to be easily configured, monitored and managed remotely while providing a high level of secure access to the management data. Transition Networks' ION solutions allow users to easily integrate copper and fiber in order to extend networks within a building, between buildings, or throughout a campus where multiple points of fiber integration and secure network management of the fiber interface devices is essential.
An end-to-end fiber integration solution can be achieved by pairing the modules in an ION chassis with the modules in another ION chassis or an ION stand-alone device. To take full advantage of all the features and functions available with the ION Chassis, an ION Management Module is required. The ION Management Module connects to the chassis backplane and communicates with the individual cards in the ION Chassis. Each slide-in module for the ION Chassis has specific features and functions that are controlled via the ION Management Module. A network administrator can configure, monitor and troubleshoot ION slide-in modules remotely via the ION Management Module.
Features
- Variety of management access methods including; telnet, web, SNMP
- The single slot management module design allows for more slide-in modules to be inserted in the ION Chassis
- Management VLAN
- Based on Public MIBs
- (2) 10/100 Ethernet interfaces
- USB console port
- TFTP upgrade/backup of slide-in modules
- Import/Export configuration files in human readable/editable format
- Multiple community strings
Technical Specs
I/O Expansions
Number of Total Expansion Slots | 6 |
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 2 |
Miscellaneous
Package Contents |
|
Country of Origin | United States |
Interfaces/Ports
Modular | Yes |
Uplink Port | No |
Stack Port | No |
Port/Expansion Slot Details | 6 x Expansion Slot |
Physical Characteristics
Form Factor | Rack-mountable |
Height | 1.8" |
Width | 17" |
Depth | 10" |
Compatible Rack Unit | 1U |
Power Description
Input Voltage | 110 V AC |
220 V AC | |
Power Source | Power Supply |
Power Consumption | 10 W |
Redundant Power Supply Supported | Yes |
General Information
Product Type | Switch Chassis |
Manufacturer Part Number | ION106-AAMB-NA |
Manufacturer Website Address | http://www.transition.com |
Manufacturer | Transition Networks, Inc |
Product Model | ION106 |
Product Name | 6-Slot Chassis for ION Slide-in Modules |
Brand Name | Transition Networks |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Package Contents
- 6-Slot Chassis for ION Slide-in Modules
- 2 x AC Power Supply
- 1 x ION Management Module
- North American Power Cord
Product Type Switch Chassis
Input Voltage 110 V AC
Input Voltage 220 V AC
Manufacturer Part Number ION106-AAMB-NA
Power Source Power Supply
Limited Warranty Lifetime
Layer Supported 2
Form Factor Rack-mountable
Manufacturer Transition Networks, Inc
Product Model ION106
Product Name 6-Slot Chassis for ION Slide-in Modules
Power Consumption 10 W
Brand Name Transition Networks
Country of Origin United States
Height 1.8"
Width 17"
Depth 10"
Manageable Yes;Compatible Rack Unit=1U"
Number of Total Expansion Slots 6
Modular Yes;Uplink Port=No"
Stack Port No
Port/Expansion Slot Details 6 x Expansion Slot
Redundant Power Supply Supported Yes
Note Images may not be exact, please check specifications.
