Product Description

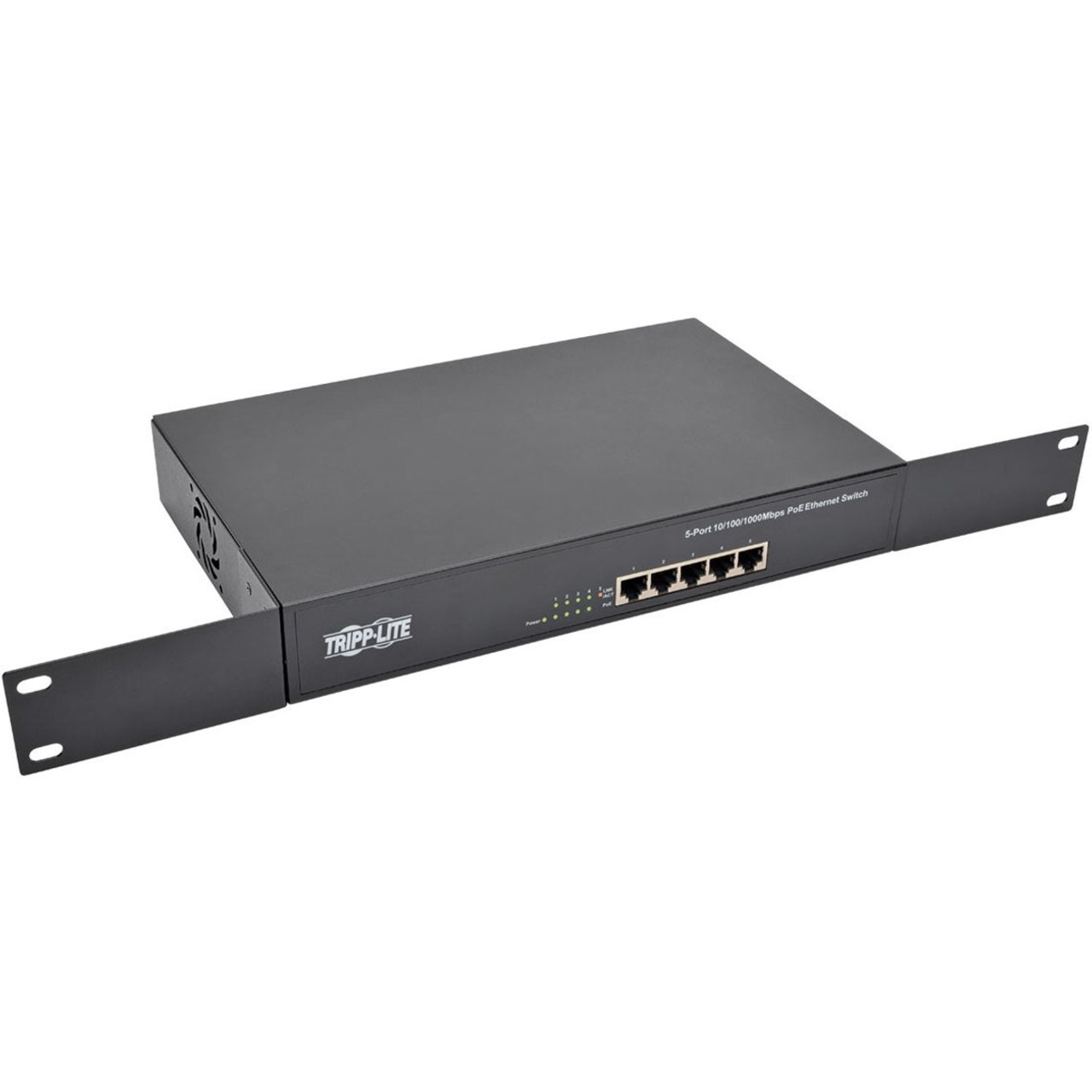

Tripp Lite 5Port Gigabit Ethernet Switch Rackmount Unmanaged w/PoE Metal 1U - 5 Ports - 10/100/1000Base-T - 5 x Network - Twisted Pair - Gigabit Ethernet - 2 Layer Supported - 1U High - Desktop, Rack-mountable - 5 Year RACKMOUNT UNMANAGED W/POE METAL 1U
The NG5POE 5-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this energy-efficient switch provides PoE+ compatibility with wireless access points and other devices. Four ports support up to 26W each with a total PoE budget of 75W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.
This unmanaged switch features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.
The NG5POE supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. The detachable five-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.
Features
- 5 auto-negotiable 10/100/1000 Mbps RJ45 ports
- 4 ports support 26W PoE+ each; 75W total PoE budget
- Supports auto MDI/MDIX cross-over function
- 2 Gbps switching capacity per port with full duplex
- Plug-and-play with no configuration required
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Package Contents
- NG5POE Ethernet Switch
- Detachable AC power cord with NEMA 5-15P plug, 5 ft.
- 2 x Mounting brackets
- 8 x Screws
- 4 x Rubber feet
- Owner's manual
Product Type Ethernet Switch
Manufacturer Part Number NG5POE
Power Source Power Supply
Limited Warranty 5 Year
Layer Supported 2
Weight (Approximate) 3.15 lb
Form Factor Desktop
Form Factor Rack-mountable
Manufacturer Tripp Lite by Eaton
Product Model NG5POE
Product Name NG5POE Ethernet Switch
Network Technology 10/100/1000Base-T
Brand Name Tripp Lite
Country of Origin China
Height 1.8
Width 11
Depth 7"
Manageable No"
Environmentally Friendly Yes
Environmental Certification RoHS
Compatible Rack Unit 1U
Ethernet Technology Gigabit Ethernet
Modular No"
Uplink Port No
Stack Port No
Media Type Supported Twisted Pair
Total Number of Network Ports 5
Port/Expansion Slot Details 5 x Gigabit Ethernet Network
Redundant Power Supply Supported No
