Product Description

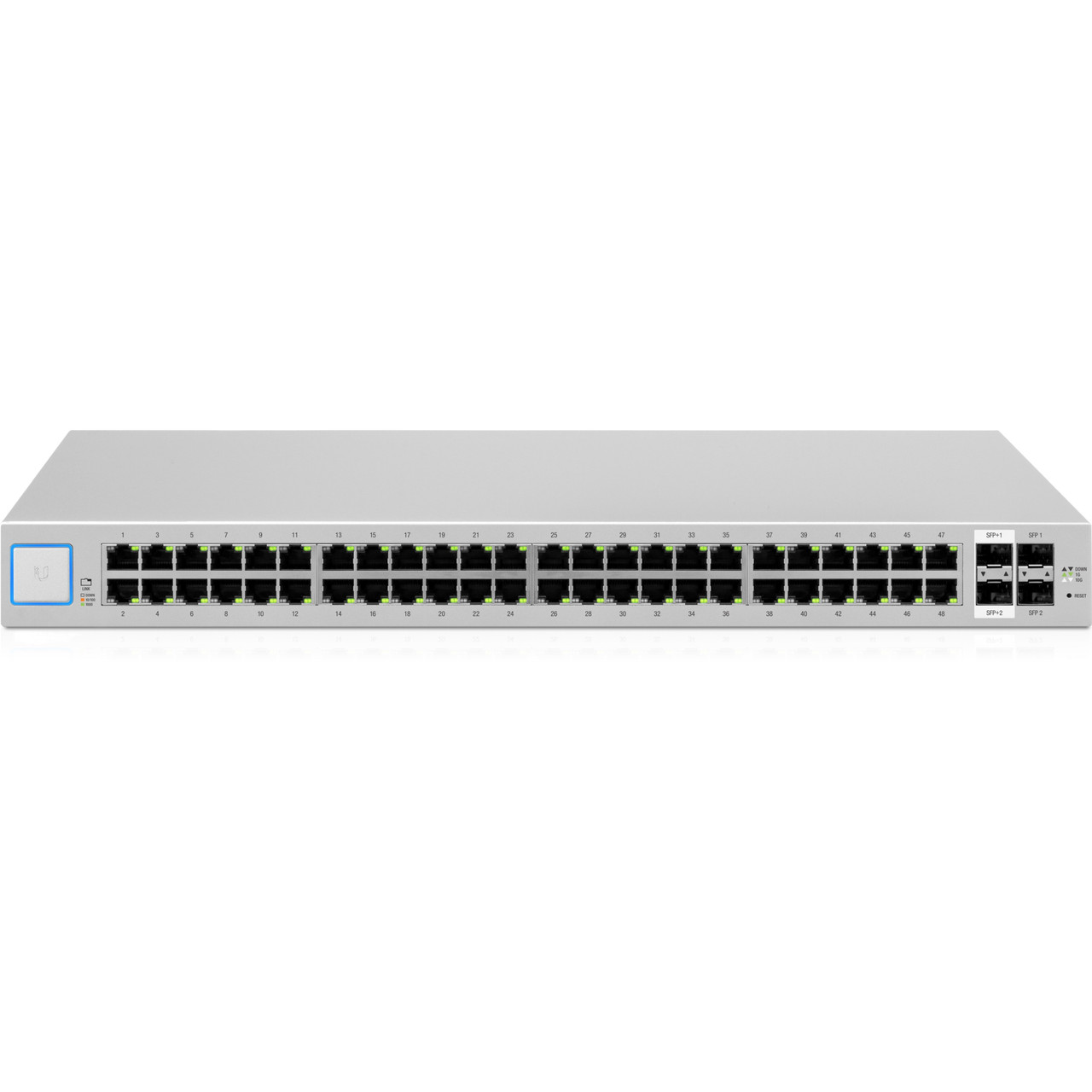

Ubiquiti UniFi US-48 Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X, 10GBase-X - 2 Layer Supported - Modular - 2 SFP Slots - Optical Fiber, Twisted Pair - 1U High - Rack-mountable, Wall Mountable, Desktop WITH SFP NO POE (VINTAGE)
Available with 24 or 48 RJ45 Gigabit ports, the UniFi® Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.Powerful Enterprise Switch Models
The UniFi® Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Non-Blocking Throughput
For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
- Non-Blocking Throughput Switching Performance
- Gigabit Ethernet RJ45 Ports
- SFP+/SFP Fiber Connectivity Options
Manageable | Yes |
Layer Supported | 2 |
Power Source | Power Supply |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Certification | WEEE |
Modular | Yes |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
2 x Gigabit Ethernet Expansion Slot | |
48 x Gigabit Ethernet Network |
Expansion Slot Type | SFP+ |
SFP | |
Number of Total Expansion Slots | 4 |
Number of SFP Slots | 2 |
Number of SFP+ Slots | 2 |
Shared SFP Slot | No |
Network Technology | 1000Base-X |
10GBase-X | |
10/100/1000Base-TX | |
Ethernet Technology | Gigabit Ethernet |
10 Gigabit Ethernet | |
Media Type Supported | Optical Fiber |
Twisted Pair |
Product Type | Ethernet Switch |
Manufacturer Part Number | US-48 |
Manufacturer Website Address | http://www.ubnt.com |
Manufacturer | Ubiquiti Networks, Inc |
Product Model | US-48 |
Product Name | UniFi US-48 Ethernet Switch |
Product Line | UniFi |
Brand Name | Ubiquiti |
Weight (Approximate) | 7.85 lb |
Form Factor | Desktop |
Rack-mountable | |
Wall Mountable | |
Height | 1.7" |
Width | 17.4" |
Depth | 11.3" |
Compatible Rack Unit | 1U |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
- UniFi US-48 Ethernet Switch
- Rack-Mount Brackets
